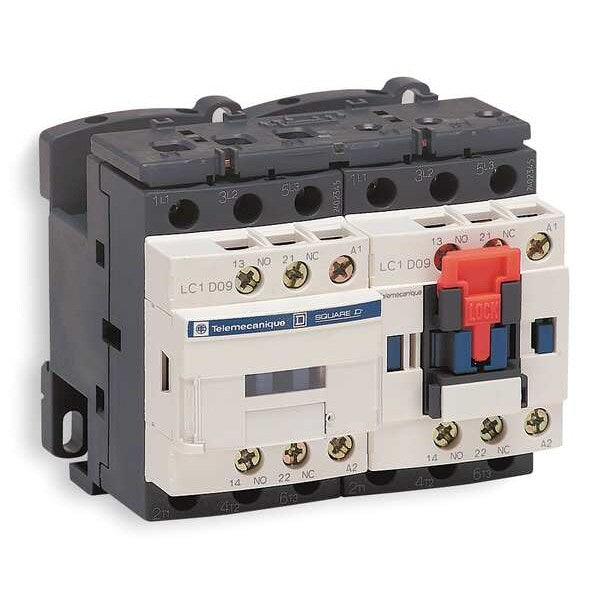

IEC Magnetic Contactor, 3 Poles, 24 V DC, 25 A, Reversing: Yes

SKU
Brand Square D
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 25 A, Full Load Current - Resistive 40 A, Reversing Capability Reversing, Overall Height 3.35 in, Overall Width 3.54 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys Deca, Number of Auxillary Contacts 2, Contactor Style IEC
graingerSKU: , mscSKU: , zoro_no: G0895797, mongo_id: 65bbe6673aaddbd5a9029d87

Web Price

$664.99 / each

Qty

Product Details

Action Reversing

Application Motor Control, Resistive Load

Aux. Contact Configuration 1NO/1NC

Auxiliary Contact Form 1NO/1NC

Coil Voltage 24V DC

Coil Volts 24 V DC

Contactor Style IEC

Control Circuit Voltage Limits Drop-Out DC: 0.1 to 0.25 Uc (at -40 to 70ÃÂ°C), Operational DC: 0.7 to 1.25 Uc (at -40 to 60ÃÂ°C), 1 to 1.25 Uc (at 60 to 70ÃÂ°C)

Country of Origin (subject to change) France

Depth 3.54 in

Electrical Connection Screw Clamp Terminals

Electrical Durability 1.65 Mcycles (25 A, AC-3, Less than 440 V); 1.4 Mcycles (40 A, AC-1, Less than 440 V)

Electrical Operating Durability 1,400,000, 1,650,000

Embedded Surge Suppressor Yes

Enclosure NEMA Rating No Enclosure

Environmental Attributes Mercury Free, PVC Free, Pollution Degree 3

Features Built-In Bi-Directional Peak Limiting Diode Suppressor; Preassembled with Reversing Power Busbar

Fire Rating UL 94 V1

Frequency 50/60 Hz

Full Load Amps-Inductive 25 A

Full Load Amps-Resistive 40 A

Full Load Current - Inductive 25 A

Full Load Current - Resistive 40 A

Fuse Amps 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit)

Height 3.54 in

Horsepower @ Single Phase - 120V AC 2 hp

Horsepower @ Single Phase - 240V AC 3 hp

Horsepower @ Three Phase - 208V AC 5 hp

Horsepower @ Three Phase - 240V AC 7 1/2 hp

Horsepower @ Three Phase - 480V AC 15 hp

Horsepower @ Three Phase - 600V AC 20 hp

HP @ 1 Phase - 120V 2 hp

HP @ 1 Phase - 230V 3

HP @ 1 Phase - 240V 3 hp

HP @ 3 Phase - 208V 5 hp

HP @ 3 Phase - 240V 7 1/2 hp

HP @ 3 Phase - 480V 15 hp

HP @ 3 Phase - 575V 20 hp

Hz_ 50/60

Impedance 2 mOhm

Impulse Withstand Voltage 6 kV

Includes Electrical Interlock

Includes Auxiliary Contacts Yes

Includes Protective Cover Yes

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

IP Rating IP20

Max. Operating Watts 5.5 kW (at 220 to 230V AC 50 Hz), 11 kW (at 380 to 400V AC 50 Hz), 11 kW (at 415 to 440V AC 50 Hz), 15 kW (at 500V AC 50 Hz), 15 kW (at 660 to 690V AC 50 Hz)

Max. Temperature 850ÃÂ°C

Maximum Operating Temperature 140 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Durability 30 Mcycles

Mechanical Operating Durability 30,000,000

Minimum Operating Temperature -40 Degrees F

Mounting Style DIN Rail, Plate

Mounts On Plate, Rail

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Net Weight 1.117 kg

Non-Overlap Time 1.5 ms

Number of Auxillary Contacts 2

Number of Normally Open Main Contacts 3

Number of Poles 3

Operating Speed 3600 cycles per hr

Operating Time 53.55 to 72.45 ms (Closing), 16 to 24 ms (Opening)

Overall Depth 3.98 in

Overall Height 3.35 in

Overall Width 3.54 in

Overvoltage Category CAT III

Package Quantity 1

Rated Breaking Capacity 450 A @ 440V

Rated Insulation Volts 600/690V

Rated Making Capacity 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit)

Rated Short-Time Withstand Current 50 A (at 40ÃÂ°C for 10 min Power Circuit), 120 A (at 40ÃÂ°C for 1 min Power Circuit), 240 A (at 40ÃÂ°C for 10 s Power Circuit), 380 A (at 40ÃÂ°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)

Rated Voltage 690V AC, 300V DC

Resistance Properties Fire Resistant, Insulation Resistant

Reversing Yes

Reversing Capability Reversing

Series TeSys Deca

Shock Resistance 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)

Signalling Circuit Frequency 25 to 400 Hz

Standards BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Terminal Connection Type Screw Clamp Terminals

Thermal Amperage 10 A (at 60ÃÂ°C Signalling Circuit), 40 A (at 60ÃÂ°C Power Circuit)

Tightening Torque 1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit)

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Width 3.54 in

Working Height Up to 9842.52 ft
