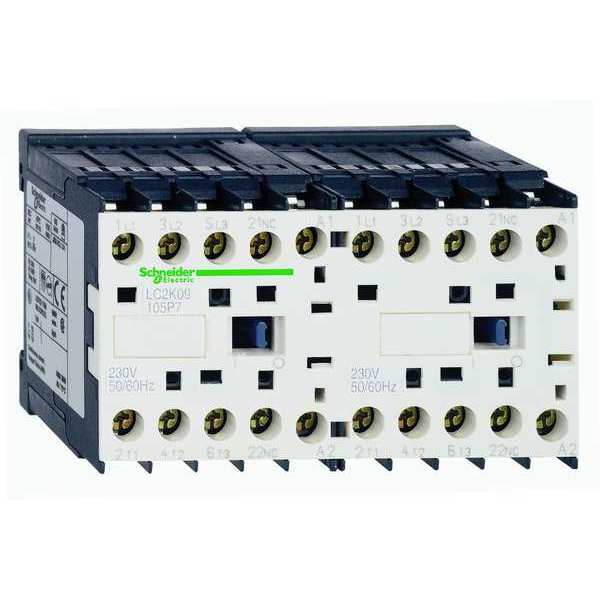

IEC Mini Magnetic Contactor, 3 Poles, 120 V AC, 12 A, Reversing: Yes

SKU
Brand Square D
Categories
Description Miniature IEC Magnetic Contactor, Auxiliary Contact Form 1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 120V AC, Number of Poles 3, Full Load Current - Inductive 12 A, Full Load Current - Resistive 20 A, Reversing Capability Reversing, Overall Height 2.28 in, Overall Width 3.54 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys K, Number of Auxillary Contacts 1, Contactor Style IEC
graingerSKU: 2MMX2, mscSKU: , zoro_no: G1251363, mongo_id: 65bbe81b22d7a989a98da2ce

Web Price

$283.74 / each

Qty

Product Details

Action Reversing

Ambient Air Temperature For Operation -13 to 122ÃÂ°F (-25 to 50ÃÂ°C)

Ambient Air Temperature For Storage -58 to 176ÃÂ°F (-50 to 80ÃÂ°C)

Application Motor Control, Resistive Load

Associated Fuse Rating 25 A gG at Less than or Equal to 440 V for power circuit; 25 A aM for power circuit; 10 A gG for signalling circuit conforming to IEC 60947; 10 A gG for signalling circuit conforming to VDE 0660

Aux. Contact Configuration 1NC

Auxiliary Contact Composition 1 NC

Auxiliary Contact Form 1NC

Auxiliary Contacts Type Instantaneous 1 NC

Average Impedance 3 mOhm - Ith 20 A 50 Hz for power circuit

Coil Voltage 120V AC

Coil Volts 120 V AC

Connections - Terminals screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1.5 to 4 mmÃÂ²)solid; screw clamp terminals 1 0.00 to 0.01 inÃÂ² (0.75 to 4 mmÃÂ²)flexible without cable end; screw clamp terminals 1 0.00 to 0.00 inÃÂ² (0.34 to 2.5 mmÃÂ²)flexible with cable end; screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1.5 to 4 mmÃÂ²)solid; screw clamp terminals 2 0.00 to 0.01 inÃÂ² (0.75 to 4 mmÃÂ²)flexible without cable end; screw clamp terminals 2 0.00 to 0.00 inÃÂ² (0.34 to 1.5 mmÃÂ²)flexible with cable end

Contactor Application Resistive load; Motor control

Contactor Style IEC

Control Circuit Type AC 50/60 Hz

Control Circuit Voltage 120 V AC 50/60 Hz

Control Circuit Voltage Limits Operational: 0.8 to 1.15 Uc (at 50ÃÂ°C), Drop-Out: 0.2 to 0.75 Uc (at 50ÃÂ°C)

Conventional Free Air Thermal Current 20 A (at 122ÃÂ°F (50ÃÂ°C)) for power circuit; 10 A (at 122ÃÂ°F (50ÃÂ°C)) for signalling circuit

Country of Origin (subject to change) France

Depth 2.24 in

Device Application Control

Electrical Connection Screw Clamp Terminals

Electrical Durability 0.3 Mcycles (20 A, AC-1, Less than 440 V); 1.3 Mcycles (12 A, AC-3, Less than 440 V); 1.3 Mcycles (12 A, AC-3e, Less than 440 V)

Electrical Operating Durability 1,300,000, 300,000

Embedded Surge Suppressor No

Enclosure NEMA Rating No Enclosure

Environmental Attributes Mercury Free, Toxic Heavy Metal Free

Features Preassembled with Reversing Power Busbar

Fire Rating UL 94 V1, NF F 16-101, NF F 16-102

Flame Retardance V1 conforming to UL 94; Requirement 2 conforming to NF F 16-101; Requirement 2 conforming to NF F 16-102

Frequency 50/60 Hz

Full Load Amps-Inductive 12 A

Full Load Amps-Resistive 20 A

Full Load Current - Inductive 12 A

Full Load Current - Resistive 20 A

Fuse Amps 25 A (Power Circuit), 10 A (Signalling Circuit)

Heat Dissipation 1.3 W

Height 2.28 in

Hold VA 4.5 VA

Hold-In Power Consumption in VA 4.5 VA (at 68ÃÂ°F (20ÃÂ°C))

Horsepower @ Single Phase - 120V AC 1/2 hp

Horsepower @ Single Phase - 240V AC 1 1/2 hp

Horsepower @ Three Phase - 240V AC 3 hp

Horsepower @ Three Phase - 480V AC 7 1/2 hp

Horsepower @ Three Phase - 600V AC 10 hp

HP @ 1 Phase - 120V 1/2 hp

HP @ 1 Phase - 230V 1-1/2

HP @ 1 Phase - 240V 1 1/2 hp

HP @ 3 Phase - 240V 3 hp

HP @ 3 Phase - 480V 7 1/2 hp

HP @ 3 Phase - 575V 10 hp

Hz_ 50/60

Impedance 3 mOhm

Impulse Withstand Voltage 8 kV

Includes Auxiliary Contacts Yes

Inrush Power in VA 30 VA (at 68ÃÂ°F (20ÃÂ°C))

Inrush VA 30 VA

Insulation Resistance Greater than 10 MOhm for signalling circuit

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

Interlocking Type Mechanical

IP Degree Of Protection IP20 VDE 0106

IP Rating IP20

IRMS Rated Making Capacity 144 A at 690 V AC for power circuit conforming to NF C 63-110; 144 A at 690 V AC for power circuit conforming to IEC 60947; 110 A AC for signalling circuit conforming to IEC 60947

Max. Operating Watts 4 kW (at 480V AC 50/60 Hz), 4 kW (at 500 to 600V AC 50/60 Hz), 4 kW (at 660 to 690V AC 50/60 Hz), 3 kW (at 220 to 230V AC 50/60 Hz), 5.5 kW (at 380 to 415VAC 50/60 Hz), 5.5 kW (at 440V AC 50/60 Hz)

Maximum Operating Rate 3600 cyc/h

Maximum Operating Temperature 122 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Durability 5 Mcycles

Mechanical Operating Durability 5,000,000

Mechanical Robustness Shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27; Shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27; Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27; Shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27; Shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27; Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27; Vibrations contactor closed4 Gn, 5 to 300 Hz IEC 60068-2-6; Vibrations contactor opened2 Gn, 5 to 300 Hz IEC 60068-2-6

Minimum Operating Temperature -13 Degrees F

Minimum Switching Current 5 mA for signalling circuit

Minimum Switching Voltage 17 V for signalling circuit

Motor Power KW 4 kW 480 V AC 50/60 Hz; 4 kW 500 to 600 V AC 50/60 Hz; 4 kW 660 to 690 V AC 50/60 Hz; 3 kW 220 to 230 V AC 50/60 Hz; 5.5 kW 380 to 415 V AC 50/60 Hz; 5.5 kW 440 V AC 50/60 Hz

Mounting Style DIN Rail, Plate

Mounting Support Plate; Rail

Mounts On Plate, Rail

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Net Weight 0.39 kg

Non Overlap Distance 0.02 in (0.5 mm)

Number of Auxillary Contacts 1

Number of Normally Open Main Contacts 3

Number of Poles 3

Operating Altitude 6561.68 ft (2000 m) without derating

Operating Speed 3600 cycles per hr

Operating Time 10 to 20 ms (Coil Energisation and NO Closing), 10 to 20 ms (Coil De-Energisation and NO Opening)

Overall Depth 2.24 in

Overall Height 2.28 in

Overall Width 3.54 in

Overvoltage Category CAT III

Package Quantity 1

Poles Description 3P

Power Pole Contact Composition 3 NO

Product Certifications CB Scheme; CCC; UL; CSA; EAC; CE; UKCA

Product Or Component Type Reversing contactor

Protective Treatment TC IEC 60068; TC DIN 50016

Rated Breaking Capacity 110 A @ 440V, 80 A @ 500V, 70 A @ 660 to 690V

Rated Insulation Voltage Power circuit 600 V UL 508; Power circuit 690 V IEC 60947-4-1; Signalling circuit 690 V IEC 60947-4-1; Signalling circuit 690 V IEC 60947-5-1; Signalling circuit 600 V UL 508; Power circuit 600 V CSA C22.2 No 14; Signalling circuit 600 V CSA C22.2 No 14

Rated Insulation Volts 600/690V

Rated Making Capacity 144 A @ 690V (AC Power Circuit), 110 A (AC Signalling Circuit)

Rated Operational Current 20 A (at Less than 122ÃÂ°F (50ÃÂ°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 16 A (at Less than 158ÃÂ°F (70ÃÂ°C)) at 690 V AC AC-1 for power circuit; 12 A at Less than or Equal to 440 V AC AC-3 for power circuit; 12 A at Less than or Equal to 440 V AC AC-3e for power circuit

Rated Operational Voltage Power circuit 690 V AC 50/60 Hz; Signalling circuit Less than or Equal to 690 V AC 50/60 Hz

Rated Short Time Withstand Current 115 A 122ÃÂ°F (50ÃÂ°C) - 1 s for power circuit; 105 A 122ÃÂ°F (50ÃÂ°C) - 5 s for power circuit; 100 A 122ÃÂ°F (50ÃÂ°C) - 10 s for power circuit; 75 A 122ÃÂ°F (50ÃÂ°C) - 30 s for power circuit; 55 A 122ÃÂ°F (50ÃÂ°C) - 1 min for power circuit; 50 A 122ÃÂ°F (50ÃÂ°C) - 3 min for power circuit; 80 A - 1 s for signalling circuit; 90 A - 500 ms for signalling circuit; 110 A - 100 ms for signalling circuit; 25 A 122ÃÂ°F (50ÃÂ°C) - Greater than or Equal to 15 min for power circuit

Rated Short-Time Withstand Current 115 A (at 50ÃÂ°C for 1 s Power Circuit), 105 A (at 50ÃÂ°C for 5 s Power Circuit), 100 A (at 50ÃÂ°C for 10 s Power Circuit), 75 A (at 50ÃÂ°C for 30 s Power Circuit), 55 A (at 50ÃÂ°C for 1 min Power Circuit), 50 A (at 50ÃÂ°C for 3 min Power Circuit), 80 A (For 1 s Signalling Circuit), 90 A (For 500 ms Signalling Circuit), 110 A (For 100 ms Signalling Circuit), 25 A (at 50ÃÂ°C for 15 min Power Circuit)

Rated Voltage 690V AC

Resistance Properties Insulation Resistant

Reversing Yes

Reversing Capability Reversing

Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Series TeSys K

Shock Resistance 10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open)

Signalling Circuit Frequency Less Than 400 Hz

Standards BS 5424, CSA, IEC 60947, NF C 63-110, UKCA, UL Listed, VDE 0660

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Terminal Connection Type Screw Clamp Terminals

Thermal Amperage 20 A (at 50ÃÂ°C Power Circuit), 10 A (at 50ÃÂ°C Signalling Circuit)

Tightening Torque 0.8 to 1.3 Nm

Utilisation Category AC-3; AC-1; AC-4; AC-3e

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 1.3W

Width 3.54 in

Working Height 6561.68 ft
