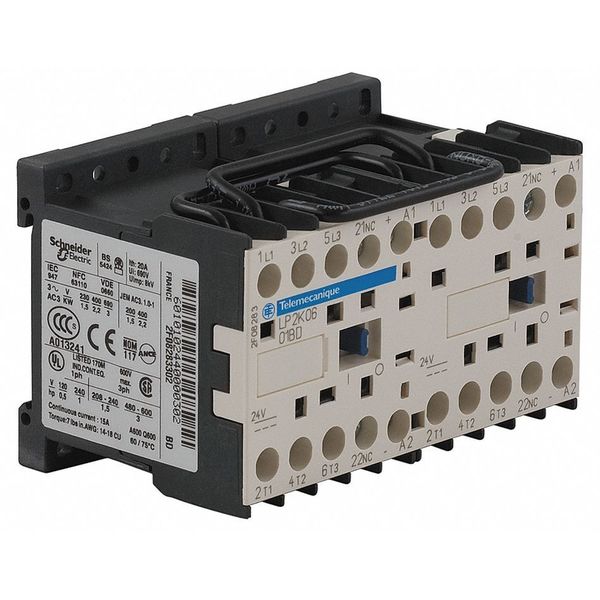

IEC Mini Magnetic Contactor, 3 Poles, 24 V DC, 12 A, Reversing: Yes

SKU
Brand Square D
Categories
Description Miniature IEC Magnetic Contactor, Auxiliary Contact Form 1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 12 A, Full Load Current - Resistive 20 A, Reversing Capability Reversing, Overall Height 2.28 in, Overall Width 3.54 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys K, Number of Auxillary Contacts 1, Contactor Style IEC
graingerSKU: 2MMX9, mscSKU: , zoro_no: G3005213, mongo_id: 65bbe75d3aaddbd5a908e128

Web Price

$291.24 / each

Qty

Product Details

Action Reversing

Application Motor Control, Resistive Load

Aux. Contact Configuration 1NC

Auxiliary Contact Form 1NC

Coil Voltage 24V DC

Coil Volts 24 V DC

Contactor Style IEC

Control Circuit Voltage Limits Operational: 0.8 to 1.15 Uc (at 50ÃÂ°C), Drop-Out: 0.1 to 0.75 Uc (at 50ÃÂ°C)

Country of Origin (subject to change) France

Depth 2.24 in

Electrical Connection Screw Clamp Terminals

Electrical Durability 0.3 Mcycles (20 A, AC-1, Less than 440 V); 1.3 Mcycles (12 A, AC-3, Less than 440 V); 1.3 Mcycles (12 A, AC-3e, Less than 440 V)

Electrical Operating Durability 1,300,000, 300,000

Embedded Surge Suppressor No

Enclosure NEMA Rating No Enclosure

Environmental Attributes Mercury Free, Toxic Heavy Metal Free

Features Preassembled with Reversing Power Busbar

Fire Rating UL 94 V1, NF F 16-101, NF F 16-102

Frequency 50/60 Hz

Full Load Amps-Inductive 12 A

Full Load Amps-Resistive 20 A

Full Load Current - Inductive 12 A

Full Load Current - Resistive 20 A

Fuse Amps 25 A (Power Circuit), 10 A (Signalling Circuit)

Height 3.54 in

Horsepower @ Single Phase - 120V AC 1/2 hp

Horsepower @ Single Phase - 240V AC 1 1/2 hp

Horsepower @ Three Phase - 240V AC 3 hp

Horsepower @ Three Phase - 480V AC 7 1/2 hp

Horsepower @ Three Phase - 600V AC 10 hp

HP @ 1 Phase - 120V 1/2 hp

HP @ 1 Phase - 230V 1-1/2

HP @ 1 Phase - 240V 1 1/2 hp

HP @ 3 Phase - 240V 3 hp

HP @ 3 Phase - 480V 7 1/2 hp

HP @ 3 Phase - 575V 10 hp

Hz_ 50/60

Impedance 3 mOhm

Impulse Withstand Voltage 8 kV

Includes Auxiliary Contacts Yes

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

IP Rating IP20

Max. Operating Watts 4 kW (at 480V AC 50/60 Hz), 4 kW (at 500 to 600V AC 50/60 Hz), 4 kW (at 660 to 690V AC 50/60 Hz), 3 kW (at 220 to 230V AC 50/60 Hz), 5.5 kW (at 380 to 415VAC 50/60 Hz), 5.5 kW (at 440V AC 50/60 Hz)

Maximum Operating Temperature 122 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Durability 5 Mcycles

Mechanical Operating Durability 5,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Style DIN Rail, Plate

Mounts On Plate, Rail

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Net Weight 0.48 kg

Number of Auxillary Contacts 1

Number of Normally Open Main Contacts 3

Number of Poles 3

Operating Speed 3600 cycles per hr

Operating Time 30 to 40 ms (Coil Energisation and NO Closing), 10 ms (Coil De-Energisation and NO Opening)

Overall Depth 2.24 in

Overall Height 2.28 in

Overall Width 3.54 in

Overvoltage Category CAT III

Package Quantity 1

Rated Breaking Capacity 110 A @ 440V, 80 A @ 500V, 70 A @ 660 to 690V

Rated Insulation Volts 600/690V

Rated Making Capacity 110 A (AC Signalling Circuit), 144 A (AC Power Circuit)

Rated Short-Time Withstand Current 115 A (at 50ÃÂ°C for 1 s Power Circuit), 105 A (at 50ÃÂ°C for 5 s Power Circuit), 100 A (at 50ÃÂ°C for 10 s Power Circuit), 75 A (at 50ÃÂ°C for 30 s Power Circuit), 55 A (at 50ÃÂ°C for 1 min Power Circuit), 50 A (at 50ÃÂ°C for 3 min Power Circuit), 80 A (For 1 s Signalling Circuit), 90 A (For 500 ms Signalling Circuit), 110 A (For 100 ms Signalling Circuit), 25 A (at 50ÃÂ°C for 15 min Power Circuit)

Rated Voltage 690V AC

Reversing Yes

Reversing Capability Reversing

Series TeSys K

Shock Resistance 10 G for 11 ms (on Y axis with Contactor Closed), 15 G for 11 ms (on X and Z axis with Contactor Closed), 6 G for 11 ms (on Y axis with Contactor Open), 10 G for 11 ms (on X and Z axis with Contactor Open)

Standards BS 5424, CSA, IEC 60947, NF C 63-110, UKCA, UL Listed, VDE 0660

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Terminal Connection Type Screw Clamp Terminals

Thermal Amperage 20 A (at 50ÃÂ°C Power Circuit), 10 A (at 50ÃÂ°C Signalling Circuit)

Tightening Torque 0.8 to 1.3 Nm

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 3W

Width 3.54 in

Working Height 6561.68 ft
