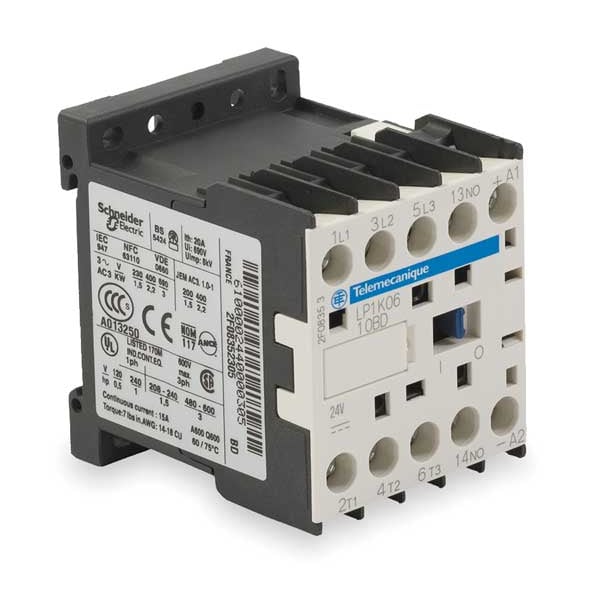

IEC Mini Magnetic Contactor, 3 Poles, 24 V DC, 9 A, Reversing: No

SKU
Brand Square D
Categories
Description Miniature IEC Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 9 A, Full Load Current - Resistive 20 A, Reversing Capability Non-Reversing, Overall Height 2.28 in, Overall Width 1.77 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys K, Number of Auxillary Contacts 1, Contactor Style IEC
graingerSKU: 2MMX5, mscSKU: 45081080, zoro_no: G2600132, mongo_id: 65bbe84d9a749db82278494c

Web Price

$132.49 / each

Qty

Product Details

Action Non-Reversing

Ambient Air Temperature For Operation -13 to 122ÃÂ°F (-25 to 50ÃÂ°C)

Ambient Air Temperature For Storage -58 to 176ÃÂ°F (-50 to 80ÃÂ°C)

Application Motor Control, Resistive Load

Associated Fuse Rating 25 A gG at Less than or Equal to 440 V for power circuit; 25 A aM for power circuit; 10 A gG for signalling circuit conforming to IEC 60947; 10 A gG for signalling circuit conforming to VDE 0660

Aux. Contact Configuration 1NO

Auxiliary Contact Composition 1 NO

Auxiliary Contact Form 1NO

Auxiliary Contacts Type Instantaneous 1 NO

Average Impedance 3 mOhm - Ith 20 A 50 Hz for power circuit

Coil Voltage 24V DC

Coil Volts 24 V DC

Connections - Terminals screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1.5 to 4 mmÃÂ²)solid; screw clamp terminals 1 0.00 to 0.01 inÃÂ² (0.75 to 4 mmÃÂ²)flexible without cable end; screw clamp terminals 1 0.00 to 0.00 inÃÂ² (0.34 to 2.5 mmÃÂ²)flexible with cable end; screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1.5 to 4 mmÃÂ²)solid; screw clamp terminals 2 0.00 to 0.01 inÃÂ² (0.75 to 4 mmÃÂ²)flexible without cable end; screw clamp terminals 2 0.00 to 0.00 inÃÂ² (0.34 to 1.5 mmÃÂ²)flexible with cable end; Power circuit screw clamp terminals 2 0.00 inÃÂ² (1.5 mmÃÂ²)flexible with cable end

Contactor Application Motor control; Resistive load

Contactor Style IEC

Control Circuit Type DC standard

Control Circuit Voltage Limits Operational: 0.8 to 1.15 Uc (at 50ÃÂ°C), Drop-Out: 0.1 to 0.75 Uc (at 50ÃÂ°C)

Conventional Free Air Thermal Current 20 A (at 140ÃÂ°F (60ÃÂ°C)) for power circuit; 10 A (at 122ÃÂ°F (50ÃÂ°C)) for signalling circuit

Country of Origin (subject to change) France

Depth 2.24 in

Electrical Durability 1.3 Mcycles 9 A AC-3 Less than or Equal to 440 V; 1.3 Mcycles 9 A AC-3e Less than or Equal to 440 V; 0.16 Mcycles 20 A AC-1 Less than or Equal to 690 V; 0.02 Mcycles 54 A AC-4 Less than or Equal to 440 V

Embedded Surge Suppressor No

Enclosure NEMA Rating No Enclosure

Environmental Attributes Mercury Free, Toxic Heavy Metal Free

Fire Rating UL 94 V1, NF F 16-101, NF F 16-102

Flame Retardance V1 conforming to UL 94; Requirement 2 conforming to NF F 16-101; Requirement 2 conforming to NF F 16-102

Frame / Series / Class / Code TeSys

Frequency 50/60 Hz

Full Load Amps-Inductive 9 A

Full Load Amps-Resistive 20 A

Full Load Current - Inductive 9 A

Full Load Current - Resistive 20 A

Fuse Amps 25 A (Power Circuit), 10 A (Signalling Circuit)

Heat Dissipation 1.3 W

Height 1.77 in

Hold-In Power Consumption in W 3 W 68ÃÂ°F (20ÃÂ°C)

Horsepower @ Single Phase - 120V AC 1/2 hp

Horsepower @ Single Phase - 240V AC 1 1/2 hp

Horsepower @ Three Phase - 208V AC 2 hp

Horsepower @ Three Phase - 240V AC 3 hp

Horsepower @ Three Phase - 480V AC 5 hp

Horsepower @ Three Phase - 600V AC 5 hp

HP @ 1 Phase - 120V 1/2 hp

HP @ 1 Phase - 230V 1-1/2

HP @ 1 Phase - 240V 1 1/2 hp

HP @ 3 Phase - 208V 2 hp

HP @ 3 Phase - 240V 3 hp

HP @ 3 Phase - 480V 5 hp

HP @ 3 Phase - 575V 5 hp

Hz_ 50/60

Impedance 3 mOhm

Impulse Withstand Voltage 8 kV

Includes Auxiliary Contacts Yes

Inrush Power in W 3 W 68ÃÂ°F (20ÃÂ°C))

Insulation Resistance Greater than 10 MOhm for signalling circuit

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

IP Degree Of Protection IP2X

IRMS Rated Making Capacity 110 A AC for power circuit conforming to IEC 60947; 110 A AC for signalling circuit conforming to IEC 60947

Maximum Operating Rate 3600 cyc/h

Maximum Operating Temperature 122 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Durability 10 Mcycles

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -13 Degrees F

Minimum Switching Current 5 mA for signalling circuit

Minimum Switching Voltage 17 V for signalling circuit

Motor Power KW 2.2 kW 220 to 230 V AC 50/60 Hz AC-3; 4 kW 380 to 415 V AC 50/60 Hz AC-3; 4 kW 440/690 V AC 50/60 Hz AC-3; 2.2 kW 220 to 230 V AC 50/60 Hz AC-3e; 4 kW 380 to 415 V AC 50/60 Hz AC-3e; 4 kW 440/690 V AC 50/60 Hz AC-3e; 2.2 kW 220 to 230 V AC 50/60 Hz AC-4; 4 kW 380 to 415 V AC 50/60 Hz AC-4; 4 kW 440/690 V AC 50/60 Hz AC-4

Mounting Style DIN Rail, Plate

Mounting Support Rail; Plate

Mounts On Plate, Rail

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Net Weight 0.225 kg

Number of Auxillary Contacts 1

Number of Normally Open Main Contacts 3

Number of Poles 3

Operating Altitude 6561.68 ft (2000 m) without derating

Operating Speed 3600 cycles per hr

Operating Time 30 to 40 ms (Coil Energisation and NO Closing), 10 ms (Coil De-Energisation and NO Opening)

Overall Depth 2.24 in

Overall Height 2.28 in

Overall Width 1.77 in

Overvoltage Category CAT III

Package Quantity 1

Poles Description 3P

Power Pole Contact Composition 3 NO

Product Certifications CB Scheme; CCC; UL; CSA; EAC; CE; UKCA

Product Or Component Type Contactor

Rated Breaking Capacity 110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V

Rated Insulation Voltage Power circuit 600 V UL 508; Power circuit 690 V IEC 60947-4-1; Signalling circuit 690 V IEC 60947-4-1; Signalling circuit 690 V IEC 60947-5-1; Signalling circuit 600 V UL 508; Power circuit 600 V CSA C22.2 No 14; Signalling circuit 600 V CSA C22.2 No 14

Rated Insulation Volts 600/690V

Rated Making Capacity 110 A

Rated Operational Current 9 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 9 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-3e for power circuit; 20 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 690 V AC AC-1 for power circuit

Rated Operational Voltage Power circuit Less than or Equal to 690 V AC Less than or Equal to 400 Hz; Signalling circuit Less than or Equal to 690 V AC Less than or Equal to 400 Hz

Rated Short Time Withstand Current 90 A 122ÃÂ°F (50ÃÂ°C) - 1 s for power circuit; 85 A 122ÃÂ°F (50ÃÂ°C) - 5 s for power circuit; 80 A 122ÃÂ°F (50ÃÂ°C) - 10 s for power circuit; 60 A 122ÃÂ°F (50ÃÂ°C) - 30 s for power circuit; 45 A 122ÃÂ°F (50ÃÂ°C) - 1 min for power circuit; 40 A 122ÃÂ°F (50ÃÂ°C) - 3 min for power circuit; 20 A 122ÃÂ°F (50ÃÂ°C) - Greater than or Equal to 15 min for power circuit; 80 A - 1 s for signalling circuit; 90 A - 500 ms for signalling circuit; 110 A - 100 ms for signalling circuit

Rated Voltage 690V AC

Resistance Properties Insulation Resistant

Reversing No

Reversing Capability Non-Reversing

Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Series TeSys K

Standards CSA, UKCA, UL Listed

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Terminal Connection Type Screw Clamp Terminals

Thermal Amperage 20 A (at 50ÃÂ°C Power Circuit), 10 A (at 50ÃÂ°C Signalling Circuit)

Tightening Torque 0.8 to 1.3 Nm

Utilisation Category AC-3; AC-3e; AC-1; AC-4

Width 1.77 in

Working Height 6561.68 ft
