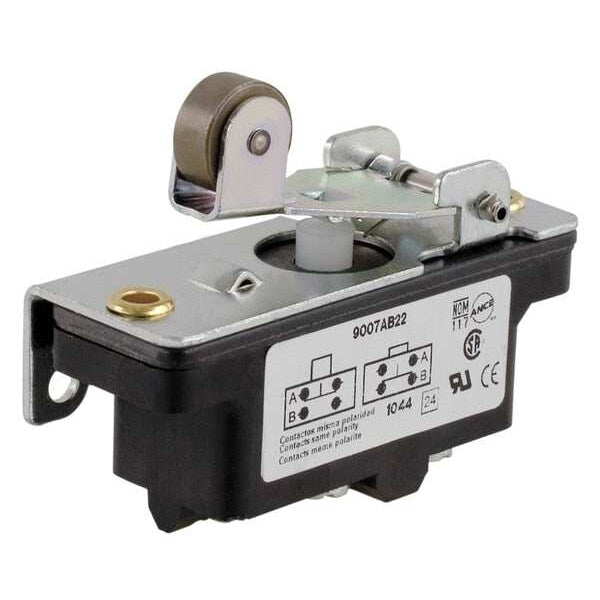

Industrial Snap Action Switch, Lever, Roller Actuator, 1NC/1NO, 15A @ 600V AC Contact Rating

SKU
Brand Square D
Categories
Description Industrial Snap Action Switch, Lever, Roller, AC Contact Rating - Snap Action Switch 15 A @ 600 V, DC Contact Rating - Snap Action Switch 2 A @ 125 V, Contact Form- Switches 1NC/1NO, Lever Actuator Length - Snap Action Switch 1.65 in, Height - Snap Action Switch 0.83 in, Width - Snap Action Switch 2.5 in, Depth - Snap Action Switch 1.03 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 2.10 in Centers, Series 9007AB
graingerSKU: 6HHD3, mscSKU: , zoro_no: G3548851, mongo_id: 65bbe8669a749db82278c135

Web Price

$89.99 / each

Qty

Product Details

AC Contact Rating - Snap Action Switch 15 A @ 600 V

Actuator Length 1.65

Actuator Type - Snap Action Switch Lever, Roller

Ambient Air Temperature For Operation -20-185ÃÂ°F

Ambient Air Temperature For Storage -20-185ÃÂ°F

Body Material cast zinc

Body Type fixed

Contact Form 1NO/1NC

Contact Form- Switches 1NC/1NO

Contact Operation snap action

Contacts Material silver contacts

Contacts Type And Composition NC-NO SPDT-DB

Country of Origin (subject to change) Mexico

Current Rating 15a

DC Contact Rating - Snap Action Switch 2 A @ 125 V

Depth 1.03

Depth - Snap Action Switch 1.03 in

Device Short Name 9007AO/CO

Differential Travel 0.078 in

Electrical Connection 1-2 6 binder head screw terminals AWG 22 to AWG 14)

Electrical Connection - Snap Action Switch Screw

Fixing Mode by the body

Height 0.828

Height - Snap Action Switch 0.83 in

Housing Material Plastic

Includes Acutuator

Ip Degree Of Protection IP20 conforming to IEC 60529

Length 2.5

Lever Actuator Length - Snap Action Switch 1.65 in

Material metal

Max. Pretravel 0.16 in

Maximum Force For Tripping 0.5 lbf

Minimum Force For Tripping 0.5 lbf

Mounting Dimension 2.10 Centers

Mounting Dimension - Snap Action Switch 2.10 in Centers

Movement Of Operating Head linear

Nema Degree Of Protection NEMA 1 Nema type 250

Number Of Poles 1

Number Of Steps 1

Operating Force 8 oz

Operating Temp. Range -13 Degrees to 185 Degrees F

Operator Material cast zinc

Operator Profile plunger head

Over Travel 0.06 in

Package Quantity 1

Positive Opening without

Product Or Component Type snap limit switch

Series 9007AB

Series Name heavy duty

Standards CE, CSA, UL

Switch Actuation by 30ÃÂ° cam

Terminal Type Screw

Terminals Description Iso NÃÂ°1 (1-2)NC || (3-4)NO

Type of Actuator Rigid Roller Lever

Type Of Approach traverse approach, 2 directions

Type Of Operator spring return roller lever plunger metal LH bracket + 0.22 roller

Voltage Rating 600VAC

Watertight - Snap Action Switch No

Width 0.95 in

Width - Snap Action Switch 2.5 in

[Ie] Rated Operational Current 5 A 600 V AC, A600 NEMA rating designation || 6 A 480 V AC, A600 NEMA rating designation || 10 A 240 V AC, A600 NEMA rating designation || 15 A 120 V AC, A600 NEMA rating designation || 0.02 A 600 V DC || 0.2 A 250 V DC || 0.5 A 125 V DC

[Ithe] Conventional Enclosed Thermal Current 15 A

[Ui] Rated Insulation Voltage 600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14 contact block
