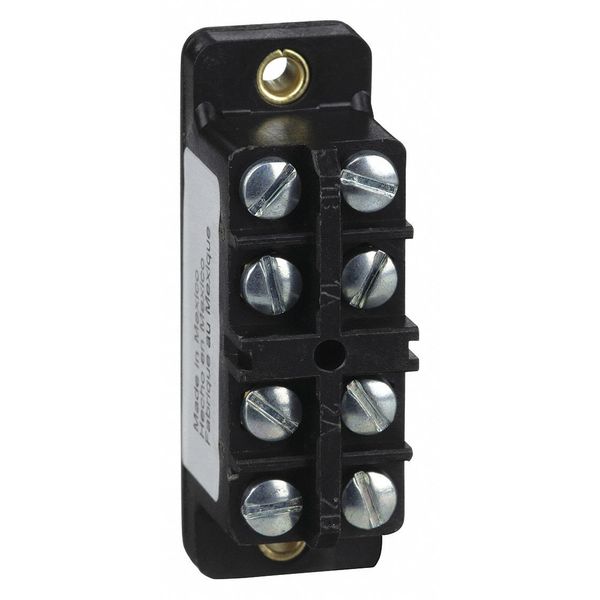

Industrial Snap Action Switch, Plunger Actuator, 2NC/2NO, 10A @ 600V AC Contact Rating

SKU
Brand Square D
Categories
Description Industrial Snap Action Switch, Plunger, AC Contact Rating - Snap Action Switch 10 A @ 600 V, DC Contact Rating - Snap Action Switch 1 A @ 125 V, Contact Form- Switches 2NC/2NO, Height - Snap Action Switch 0.83 in, Width - Snap Action Switch 2.5 in, Depth - Snap Action Switch 1.1 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 2.10 in Centers, Series 9007CO
graingerSKU: 2EG09, mscSKU: 69669729, zoro_no: G2700494, mongo_id: 65bbe9b522d7a989a9971271

Web Price

$120.24 / each

Qty

Product Details

AC Contact Rating - Snap Action Switch 10 A @ 600 V

Actuator Length 2.50

Actuator Type - Snap Action Switch Plunger

Ambient Air Temperature For Operation -20-185ÃÂ°F

Ambient Air Temperature For Storage -20-185ÃÂ°F

Body Material cast zinc

Body Type fixed

Contact Form 2NO/2NC

Contact Form- Switches 2NC/2NO

Contact Operation snap action

Contacts Material silver contacts

Contacts Type And Composition 2(NC-NO) DPDT-DB

Country of Origin (subject to change) Mexico

Current Rating 10A

DC Contact Rating - Snap Action Switch 1 A @ 125 V

Depth 1.1

Depth - Snap Action Switch 1.1 in

Device Short Name 9007AO/CO

Differential Travel 0.046 in

Electrical Connection 1-2 6 binder head screw terminals AWG 22 to AWG 14)

Electrical Connection - Snap Action Switch Screw

Fixing Mode by the body

Height 0.828

Height - Snap Action Switch 0.83 in

Housing Material Plastic

Ip Degree Of Protection IP20 conforming to IEC 60529

Length 2.5

Lever Actuator Length - Snap Action Switch Not Applicable

Material metal

Max. Pretravel 0.074 in

Maximum Force For Tripping 0.75 lbf

Minimum Force For Tripping 0.44 lbf

Mounting Dimension 2.10 Centers

Mounting Dimension - Snap Action Switch 2.10 in Centers

Movement Of Operating Head linear

Nema Degree Of Protection NEMA 1 Nema type 250

Number Of Poles 2

Number Of Steps 1

Operating Force 7.00 to 11.00 oz

Operating Temp. Range -13 Degrees to 185 Degrees F

Operator Material cast zinc

Operator Profile plunger head

Over Travel 0.015 in

Package Quantity 1

Positive Opening without

Product Or Component Type snap basic limit switch

Series 9007CO

Series Name heavy duty

Standards CE, CSA, UL

Switch Actuation on end

Terminal Type Screw

Terminals Description Iso NÃÂ°1 (3-4)NO || (1-2)NC || (5-6)NC || (7-8)NO

Type of Actuator Button

Type Of Approach vertical approach, 1 direction

Type Of Operator spring return plunger plastic with thermoplastic end

Voltage Rating 600VAC

Watertight - Snap Action Switch No

Width 0.83 in

Width - Snap Action Switch 2.5 in

[Ie] Rated Operational Current 0.6 A 600 V AC, B600 NEMA rating designation || 0.75 A 480 V AC, B600 NEMA rating designation || 1.5 A 240 V AC, B600 NEMA rating designation || 3 A 120 V AC, B600 NEMA rating designation || 0.1 A 250 V DC || 0.2 A 125 V DC

[Ithe] Conventional Enclosed Thermal Current 10 A

[Ui] Rated Insulation Voltage 600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14 contact block
