Home / Limit Switch, NC-NO; Form Z, 10A @ 600V AC

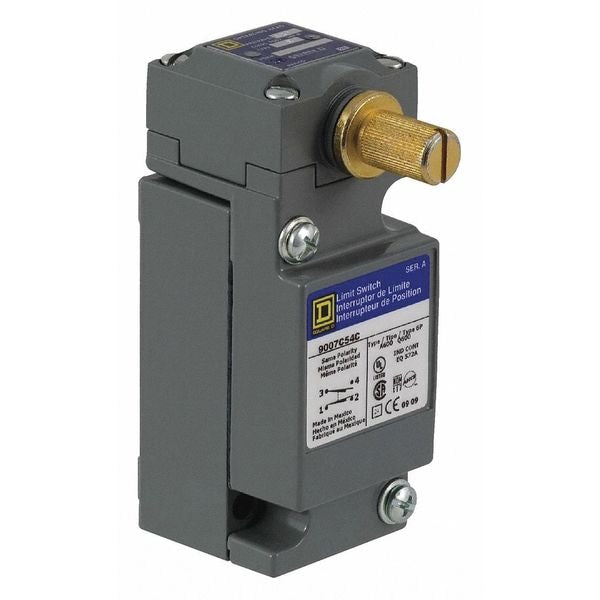

Limit Switch, NC-NO; Form Z, 10A @ 600V AC

SKU
Brand Square D
Categories
Description Limit Switch 600V 10Amp C +Options
graingerSKU: 48L266, mscSKU: , zoro_no: G0560771, mongo_id: 65bbe8b222d7a989a990ca9a

Web Price

$289.99 / each

Qty

Product Details

AC Contact Rating - Limit Switch 10A @ 600V

Actuation Type CW and CCW || from left and right

Amps 10

Body Depth - Limit Switch 2.5 in

Body Height - Limit Switch 4.02in

Body Material zinc, metal

Body Style (Limit Switch) plug-in

Contact Action snap action

Contact Form Form Z

Contact Form- Switches NC-NO; Form Z

Contact Material silver contacts

Country of Origin (subject to change) Mexico

Electrical Connection screw-clamp terminals AWG 22...AWG 12), 1-2

Electrical Durability 1000000 cycles

Head Material zinc

Head Type rotary head

IP Rating IP67 conforming to IEC 60529

Mechanical Durability 10000000 cycles

Min. Actuation Velocity Horizontal 90 ft/min with 45ÃÂ° cam angle, levers only || 130 ft/min with 30ÃÂ° cam angle, levers only

Movement rotary

NEMA Rating NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250

Number Of Poles 1

Operating Temp. Range -40-185 ÃÂ°F low temperature

Package Quantity 1

Promotion Restriction Not eligible for promotion

Series 9007C

Shock Resistance 60 gn 9 ms IEC 60068-2-27

Short Circuit Protection 10 A CC non-time delay

Special Features lateral approach, 1 or 2 programmable direction

Standards 2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA

Type Of Operator zinc spring return without operating lever 9007C lever

Vibration Resistance 25 gn 10-150 Hz)IEC 60068-2-6

Weight 1.25 lb(US)
