Home / Limit Switch, No Lever, Rotary, SPDT, 10A @ 300V AC

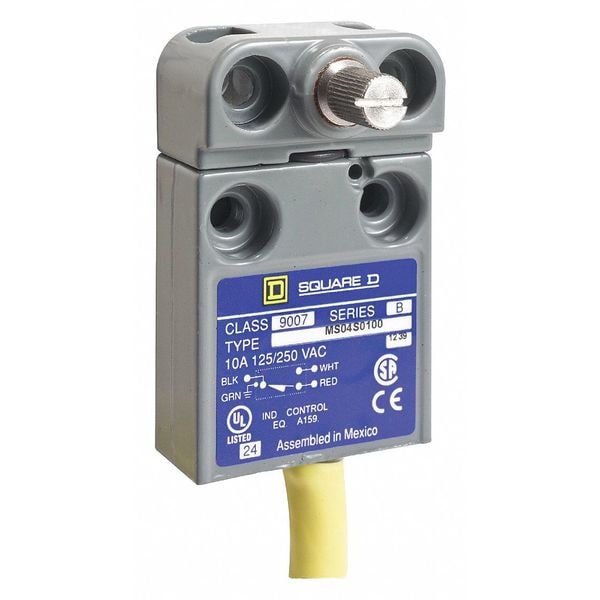

Limit Switch, No Lever, Rotary, SPDT, 10A @ 300V AC

Limit Switch, No Lever, Rotary, SPDT, 10A @ 300V AC

  • Square D
  • General Purpose Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 300V, DC Contact Rating - Limit Switch 5A @ 28V, Contact Form- Switches SPDT, Body Height - Limit Switch 1.75 in, Body Width - Limit Switch 1.58 in, Body Depth - Limit Switch 0.62 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P, Mounting - Limit Switch Surface

    graingerSKU: 6HCG8, mscSKU: , zoro_no: G0886216, mongo_id: 65bbe6e23aaddbd5a905c639

Web Price
$188.74 / each
Qty

Product Details

10A @ 300V
10A @ 300V
CW and CCW || from left and right
Side
Side
Side
Rotary Head, No Lever
Rotary, No Lever
No Lever, Rotary
10 AC/5 DC
Rotary
Rotary
0.62 in
1.75 in
Zinc
Miniature
Miniature
1.58 in
No
No
CE || UL || CSA
snap action
SPDT
SPDT
SPDT
silver contacts
Mexico
5A @ 28V
5A @ 28V
1.39
6 ft Cable, 4 Wire, 16 AWG
100000 cycles
rotary head
2.50
67
General Purpose Limit Switch
10000000 cycles
130 ft/min with 30° cam angle, levers only || 90 ft/min with 45° cam angle, levers only
Surface
(2) 0.20 in dia
2 Hole Horizontal
0.98 in
CCW, CW
1, 12, 13, 2, 4, 6, 6P
1
3.0 in-lb
-4 Degrees to 221 Degrees F (-20 Degrees to 105 Degrees C)
1
Not eligible for promotion
9007MS
35 gn 9 ms IEC 60068-2-27
lateral approach, 2 directions
CE, CSA, UL
No Stem
70 Degrees
spring return without operating lever
10 gn 75-1200 Hz)IEC 60068-2-6
240VAC/28VDC
1.2 lb(US)
1.56
Potted Cable
