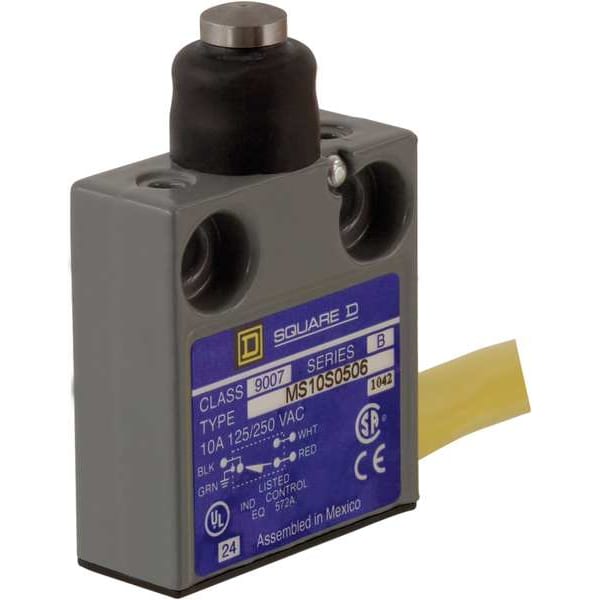

Limit Switch, Plunger, SPDT, 10A @ 300V AC, Actuator Location: Top

Limit Switch, Plunger, SPDT, 10A @ 300V AC, Actuator Location: Top

  • Square D
  • General Purpose Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 300V, DC Contact Rating - Limit Switch 5A @ 28V, Contact Form- Switches SPDT, Actuator Length - Limit Switch 0.67 in, Body Height - Limit Switch 1.75 in, Body Width - Limit Switch 1.58 in, Body Depth - Limit Switch 0.62 in, Boot Sealed Actuator - Limit Switch Yes, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P

    graingerSKU: 6HCH3, mscSKU: , zoro_no: G1440503, mongo_id: 65bbe8919a749db82279a742

Web Price
$211.24 / each
Qty

Product Details

10A @ 300V
10A @ 300V
on end
0.67
0.67 in
Top
Top
Top
Plunger, Boot Sealed
Plunger
Plunger
10 AC/5 DC
Plunger
Plunger
0.62 in
1.75 in
Zinc
Miniature
Miniature
1.58 in
Yes
Yes
UL || CSA || CE
snap action
SPDT
SPDT
SPDT
silver contacts
Mexico
5A @ 28V
5A @ 28V
0.62
18 ft Cable, Side Exit, 4 Wire
100000 cycles
plunger head
2.42
67
General Purpose Limit Switch
10000000 cycles
Surface
(2) 0.20 in dia
2 Hole Horizontal
0.98 in
Vertical
1, 12, 13, 2, 4, 6, 6P
1
5.0 in-lb
-4 Degrees to 221 Degrees F (-20 Degrees to 105 Degrees C)
1
9007MS
35 gn 9 ms IEC 60068-2-27
vertical approach, 1 direction
CE, CSA, UL
No Stem
0.19 in
spring return plunger stainless steel booted
10 gn 75-1200 Hz)IEC 60529
240VAC/28VDC
1.2 lb(US)
1.56
Potted Cable
