Home / Load Center, 2 Spaces, 40 A Amps, 120/240V AC, QO Circuit Breaker Type

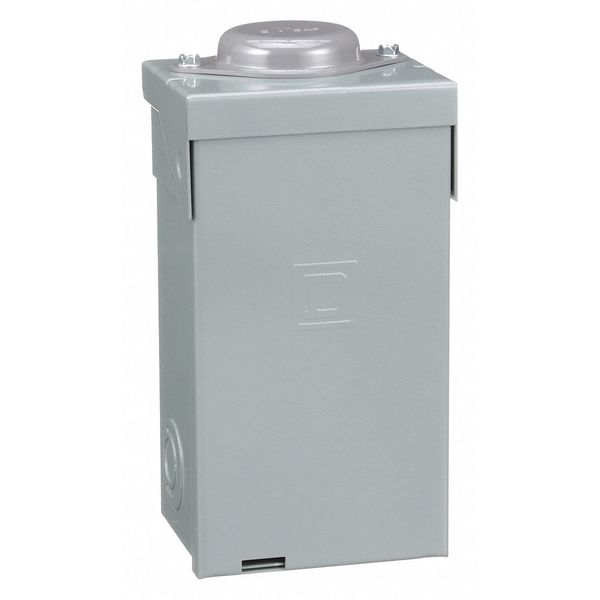

Load Center, 2 Spaces, 40 A Amps, 120/240V AC, QO Circuit Breaker Type

SKU
Brand Square D
Categories
Description Load Center, Number of Spaces 2, Amps 40 A, Voltage 120/240V AC, Circuit Breaker Type QO, Included Enclosure Cover Surface Cover, Main Circuit Breaker or Main Lug Main Lug, Max. No. of Tandem Breakers 0, Phase 1, Series QO, Height 9.38 in, Width 4.88 in, Depth 4 in, For Use With Square D QO Circuit Breakers, Bus Material Tin Plated Aluminum, Short Circuit Current Rating 65kA, Enclosure NEMA Rating 3R, Cover Attachment Style Top Hinge, Cover Closure Method Door Latch
graingerSKU: 5B756, mscSKU: , zoro_no: G3121781, mongo_id: 65bbe58c3aaddbd5a9fcd9fb

Web Price

$83.19 / each

Qty

Product Details

Amps 40 A

Bus Material Tin Plated Aluminum

Circuit Breaker Type QO

Color Gray

Country of Origin (subject to change) Mexico

Cover Attachment Style Top Hinge

Cover Closure Method Door Latch

Cover Type surface cover

Depth 4 in

Electrical Connection lugs

Enclosure Material Galvanized Steel

Enclosure NEMA Rating 3R

Enclosure Surface Finish Enamel

Enclosure Type weatherproof enclosure

Feed Location Top/Bottom

For Use With Square D QO Circuit Breakers

Ground Bar Kit grounding bar (ordered separately)

Height 9.38 in

Included Enclosure Cover Surface Cover

Location Outdoor

Main Circuit Breaker or Main Lug Main Lug

Max. No. of Tandem Breakers 0

Max. Operating Temp. 104 Degrees F

Min. Operating Temp. 23 Degrees F

Number Of Circuits 2

Number of Spaces 2

Package Quantity 1

Phase 1

Primary/Ambient Air Temp. -5ÃÂ°C || 40ÃÂ°C

Recommended Ground Bar Kit 5B717

Recommended Surface Cover Included

Series QO

Short Circuit Current Rating 65kA

Special Features Green Premium Product, Mercury Free, Toxic Heavy Metal Free

Standards RoHS Compliant, UL Listed

Surface Finish baked enamel Gray

Tightening Torque main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper || main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper || main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper

Voltage 120/240V AC

Width 4.88 in

Wire Size AWG 14...AWG 6 copper || AWG 12...AWG 6 aluminium

Wiring Configuration 3-wire
