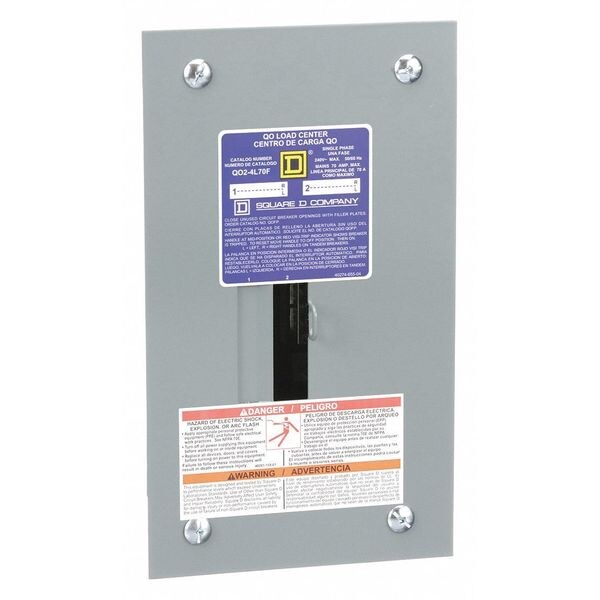

Load Center, 2 Spaces, 70 A Amps, 120/240V AC, QO Circuit Breaker Type

SKU
Brand Square D
Categories
Description Load Center, Number of Spaces 2, Amps 70 A, Voltage 120/240V AC, Circuit Breaker Type QO, Included Enclosure Cover Flush Cover, Main Circuit Breaker or Main Lug Main Lug, Max. No. of Tandem Breakers 2, Phase 1, Series QO, Height 9.3 in, Width 4.8 in, Depth 3 1/4 in, For Use With Square D QO Circuit Breakers, Bus Material Tin Plated Aluminum, Short Circuit Current Rating 65kA, Enclosure NEMA Rating 1, Cover Attachment Style Screw On, Cover Closure Method Lift-Off, Recommended Flush Cover Included
graingerSKU: 1D388, mscSKU: , zoro_no: G1688425, mongo_id: 65bbe8919a749db82279b54d

Web Price

$52.31 / each

Qty

Product Details

Ambient Air Temperature For Operation 23ÃÂ°F (-5ÃÂ°C); 104ÃÂ°F (40ÃÂ°C)

Amps 70 A

Box Number 2

Bus Material Tin Plated Aluminum

Busbar Material Tin plated aluminium: busbar

Circuit Breaker Type QO

Color Gray

Country of Origin (subject to change) Mexico

Cover Attachment Style Screw On

Cover Closure Method Lift-Off

Cover Type flush cover

Depth 3 1/4 in

Electrical Connection lugs

Enclosure Material Steel

Enclosure NEMA Rating 1

Enclosure Rating NEMA 1 indoor

Enclosure Surface Finish Enamel

Feed Location Top/Bottom

For Use With Square D QO Circuit Breakers

Ground Bar Kit grounding bar (ordered separately)

Height 9.3 in

Included Enclosure Cover Flush Cover

Location Indoor

Main Circuit Breaker or Main Lug Main Lug

Max Short Circuit Current Rating 65 kA

Max. No. of Tandem Breakers 2

Max. Operating Temp. 104 Degrees F

Min. Operating Temp. 23 Degrees F

Number Of Circuits 4

Number Of Phases 1 phase

Number of Spaces 2

Package Quantity 1

Phase 1

PoN Convertible Mains Fixed Mains (lugs)

Primary/Ambient Air Temp. -5ÃÂ°C || 40ÃÂ°C

Product Certifications UL Listed

Recommended Flush Cover Included

Recommended Ground Bar Kit 5B718

Series QO

Short Circuit Current Rating 65kA

Special Features Green Premium Product, Mercury Free, Toxic Heavy Metal Free

Standards RoHS Compliant, UL Listed

Surface Finish baked enamel Gray

Tightening Torque main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper || main lugs 45 lb.in, AWG 3, aluminium/copper || main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper || main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper

Voltage 120/240V AC

Voltage Rating 120/240 V AC

Width 4.8 in

Wire Size AWG 12...AWG 3 aluminium || AWG 14...AWG 4 copper

Wiring Configuration 3-wire
