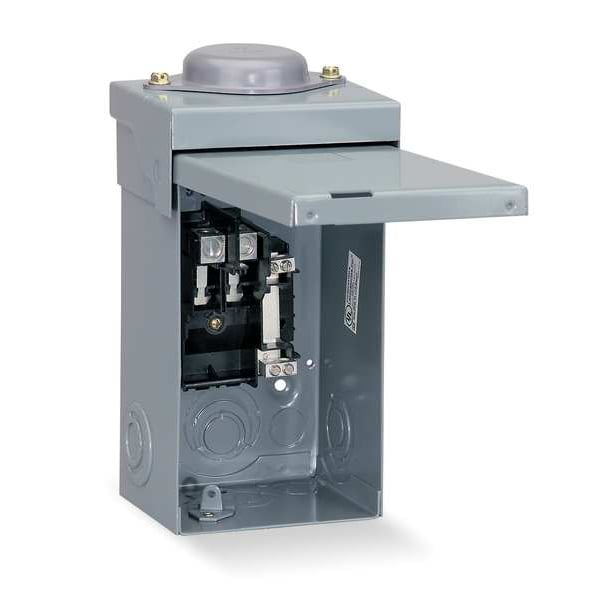

Home / Load Center, 3 Spaces, 60 A Amps, 208Y/120/240V AC, QO Circuit Breaker Type

Load Center, 3 Spaces, 60 A Amps, 208Y/120/240V AC, QO Circuit Breaker Type

SKU
Brand Square D
Categories
Description Load Center, Number of Spaces 3, Amps 60 A, Voltage 208Y/120/240V AC, Circuit Breaker Type QO, Included Enclosure Cover Surface Cover, Main Circuit Breaker or Main Lug Main Lug, Max. No. of Tandem Breakers 0, Phase 3, Series QO, Height 13.19 in, Width 6.94 in, Depth 4 in, For Use With Square D QO Circuit Breakers, Bus Material Tin Plated Aluminum, Short Circuit Current Rating 65kA, Enclosure NEMA Rating 3R, Cover Attachment Style Top Hinge, Cover Closure Method Latch
graingerSKU: 1D412, mscSKU: , zoro_no: G3322207, mongo_id: 65bbe8919a749db82279b577

Web Price

$128.74 / each

Qty

Product Details

Amps 60 A

Bus Material Tin Plated Aluminum

Circuit Breaker Type QO

Color Gray

Country of Origin (subject to change) Mexico

Cover Attachment Style Top Hinge

Cover Closure Method Latch

Cover Type surface cover

Depth 4 in

Electrical Connection lugs

Enclosure Material Galvanized Steel

Enclosure NEMA Rating 3R

Enclosure Surface Finish Enamel

Enclosure Type weatherproof enclosure

Feed Location Top/Bottom

For Use With Square D QO Circuit Breakers

Ground Bar Kit grounding bar (ordered separately)

Height 13.19 in

Included Enclosure Cover Surface Cover

Location Outdoor

Main Circuit Breaker or Main Lug Main Lug

Max. No. of Tandem Breakers 0

Max. Operating Temp. 104 Degrees F

Min. Operating Temp. 23 Degrees F

Number Of Circuits 3

Number of Spaces 3

Package Quantity 1

Phase 3

Primary/Ambient Air Temp. -5ÃÂ°C || 40ÃÂ°C

Recommended Ground Bar Kit 5B718

Recommended Surface Cover Included

Series QO

Short Circuit Current Rating 65kA

Special Features Mercury Free

Standards RoHS Compliant, UL Listed

Surface Finish baked enamel Gray

Tightening Torque main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper || main lugs 50 lb.in, AWG 3...AWG 1, aluminium/copper || main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper || main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper

Voltage 208Y/120/240V AC

Weight 4.200 kg

Width 6.94 in

Wire Size AWG 10...AWG 6 copper

Wiring Configuration 3-wire || 4-wire
