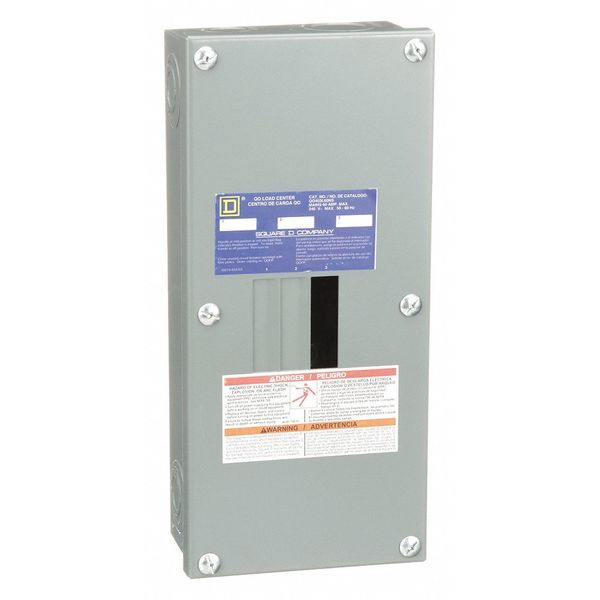

Load Center, 3 Spaces, 60 A Amps, 208Y/120/240V AC, QO Circuit Breaker Type

SKU
Brand Square D
Categories
Description Load Center, Number of Spaces 3, Amps 60 A, Voltage 208Y/120/240V AC, Circuit Breaker Type QO, Included Enclosure Cover Surface Cover, Main Circuit Breaker or Main Lug Main Lug, Max. No. of Tandem Breakers 0, Phase 3, Series QO, Height 13.11 in, Width 5.88 in, Depth 3 1/2 in, For Use With Square D QO Circuit Breakers, Bus Material Tin Plated Aluminum, Short Circuit Current Rating 65kA, Enclosure NEMA Rating 1, Cover Attachment Style Screw On, Cover Closure Method Lift-Off
graingerSKU: 1D413, mscSKU: , zoro_no: G2068324, mongo_id: 65bbe79c3aaddbd5a90a4d97

Web Price

$108.36 / each

Qty

Product Details

Ambient Air Temperature For Operation 23ÃÂ°F (-5ÃÂ°C); 104ÃÂ°F (40ÃÂ°C)

Amps 60 A

Box Number 13

Bus Material Tin Plated Aluminum

Busbar Material Tin plated aluminium: busbar

Circuit Breaker Type QO

Color Gray

Country of Origin (subject to change) Mexico

Cover Attachment Style Screw On

Cover Closure Method Lift-Off

Cover Type surface cover

Depth 3 1/2 in

Electrical Connection lugs

Enclosure Material Steel

Enclosure NEMA Rating 1

Enclosure Rating NEMA 1 indoor

Enclosure Surface Finish Enamel

Feed Location Top/Bottom

For Use With Square D QO Circuit Breakers

Ground Bar Kit neutral (factory installed)

Height 13.11 in

Included Enclosure Cover Surface Cover

Location Indoor

Main Circuit Breaker or Main Lug Main Lug

Max Short Circuit Current Rating 65 kA

Max. No. of Tandem Breakers 0

Max. Operating Temp. 104 Degrees F

Min. Operating Temp. 23 Degrees F

Number Of Circuits 3

Number Of Phases 3 phase

Number of Spaces 3

Package Quantity 1

Phase 3

PoN Convertible Mains Fixed Mains (lugs)

Primary/Ambient Air Temp. -5ÃÂ°C || 40ÃÂ°C

Product Certifications UL Listed

Recommended Ground Bar Kit 5B718

Recommended Surface Cover Included

Series QO

Short Circuit Current Rating 65kA

Special Features Mercury Free

Standards RoHS Compliant, UL Listed

Surface Finish baked enamel Gray

Tightening Torque main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper || main lugs 50 lb.in, AWG 3...AWG 1, aluminium/copper || main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper || main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper

Voltage 208Y/120/240V AC

Voltage Rating 208Y/120 V AC; 240/120 V delta AC; 240 V delta AC

Width 5.88 in

Wire Size AWG 10...AWG 6 copper

Wiring Configuration 3-wire || 4-wire
