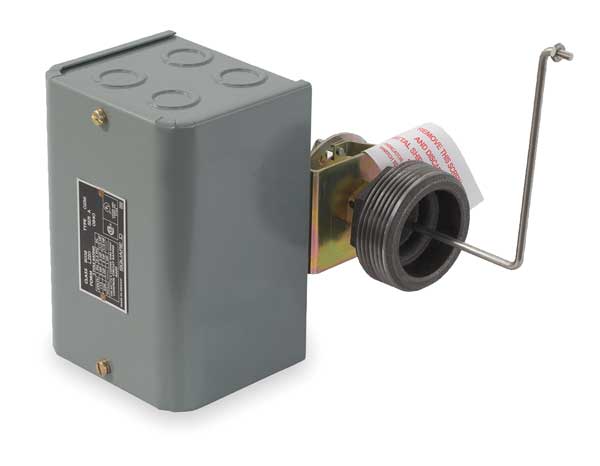

Lqd 2-Lvl Swch, Hrzntl, 2-1/2" MNPT, 250F

SKU
Brand Square D
Categories
Description Tank Liquid 2-Level Switch, Switch Function Close On Rise, Side Mounting, Float Position Left, Float Rod Angle 90 Degrees , Float Travel 6 1/2 in, Tank Connection Size 2-1/2 in MNPT, NEMA Rating 1, Contact Form DPST, Operating Temp. Range 250 Degrees F Max, Max. Pressure 50 psi, Overall Length 6.84 in, Float Material Stainless Steel, Float Length 7.0 in, Float Dia. 2.5 in, Stem Material Stainless Steel, Height 5.94 in, Width 6.84 in, Max. Voltage 475 V, HP @ 1 Phase - 120V 2 hp
graingerSKU: 3DZZ3, mscSKU: , zoro_no: G1809211, mongo_id: 65bbe5cf3aaddbd5a9fe97d5

Web Price

$701.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -22-220ÃÂ°F

Ambient Air Temperature For Storage -22-220ÃÂ°F

Body Material Steel

Cable Entry Number 8 knock-outs for 1/2 or 3/4conduit UL 508

Conduit Size 8 1/2 in, 8 3/4 in

Contact Form DPST

Contact Operation contacts close on liquid rise

Contacts Type And Composition 4 NC, snap action, DPST-DB, Form YY

Controlled Fluid fresh water specific gravity of 0.85 in or higher 0-250ÃÂ°F || sea water specific gravity of 0.85 in or higher 0-250ÃÂ°F || hydraulic oil specific gravity of 0.85 in or higher 0-250ÃÂ°F || corrosive fluid specific gravity of 0.85 in or higher 0-250ÃÂ°F

Country of Origin (subject to change) Mexico

Device Application closed tank with bushing

Device Mounting screw-in bushing

Device Short Name 9038C

Electrical Circuit Type power circuit

Electrical Connection screw-clamp terminals 10 AWG

Electrical Connections Screw Clamp

Electrical Durability 100 cycles 60 cyc/mn

Enclosure Material painted cold-rolled steel

Factory Modification omit float, two-level non-alternating unit

Features Two-Level Non Alternating Unit, Viton Packing for Media Temperature Up To 250 F

Float Dia. 2.5 in

Float Length 7.0 in

Float Material Stainless Steel

Float Movement 4.75...9.25 in adjustable

Float Position Left

Float Rod Angle 90 Degrees

Float Travel 6 1/2 in

Height 5.94 in

HP @ 1 Phase - 120V 2 hp

HP @ 1 Phase - 240V 3 hp

HP @ 3 Phase - 240V 5 hp

Includes Two Level Non-Alternating - Viton Packing, Omit Float

Kit Composition float || rod || float switch

Local Signalling with external pointer

Materials In Contact With Fluid stainless steel 316 || viton || stainlesss steel 304 || cast iron || yellow brass

Max. Current 600 A

Max. Pressure 50 PSI

Max. Voltage 475 V

Maximum Operating Rate 60 cyc/mn

Mechanical Durability 300 cycles

Motor Power Kw 1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC

Mounting Side

Nema Degree Of Protection NEMA 1 UL 50

NEMA Rating 1

Operating Position vertical position only

Operating Temp. Range 250 Degrees F Max

Overall Length 6.84 in

Package Quantity 1

Product Certifications UL listed file E12158 || CSA file LR25490

Product Destination for closed tank

Product Or Component Type mechanical alternator

Product Specific Application mechanically alternating the operation of two pumps or motors

Short-Circuit Protection 20 A cartridge fuse gG
