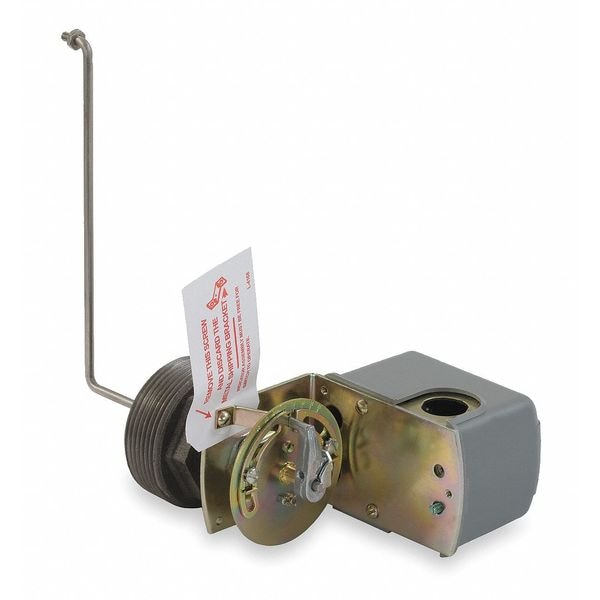

Lqd Lvl Swch, Hrzntl, 2-1/2" MNPT, ClsOnRse

SKU
Brand Square D
Categories
Description Tank Liquid Level Switch, Switch Function Close On Rise, Side Mounting, Float Position Left, Float Rod Angle 90 Degrees , Float Travel 4 1/2 in, Tank Connection Size 2-1/2 in MNPT, NEMA Rating 1, Contact Form DPST, Operating Temp. Range 250 Degrees F Max, Max. Pressure 50 psi, Overall Length 8.93 in, Float Material Stainless Steel, Float Length 7.13 in, Float Dia. 2.58 in, Stem Material Stainless Steel, Stem Length 4.37 in, Height 5.98 in, Width 2.88 in, Max. Voltage 475 V
graingerSKU: 3DZW8, mscSKU: , zoro_no: G2825146, mongo_id: 65bbe85f22d7a989a98f0017

Web Price

$187.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -22-220ÃÂ°F

Ambient Air Temperature For Storage -22-220ÃÂ°F

Body Material Steel

Cable Entry Number 3 knock-outs for 1/2 conduit UL 508

Conduit Size 3 1/2 in

Contact Form DPST

Contact Operation contacts close on liquid rise

Contacts Type And Composition 2 NC, snap action, DPST-DB, Form YY

Controlled Fluid fresh water specific gravity of 0.85 in or higher 0-250ÃÂ°F || sea water specific gravity of 0.85 in or higher 0-250ÃÂ°F || hydraulic oil specific gravity of 0.85 in or higher 0-250ÃÂ°F || corrosive fluid specific gravity of 0.85 in or higher 0-250ÃÂ°F

Country of Origin (subject to change) Mexico

Device Application closed tank

Device Mounting screw-in bushing

Device Short Name 9037H

Electrical Circuit Type power circuit

Electrical Connection screw-clamp terminals 10 AWG

Electrical Connections Screw Clamp

Electrical Durability 100 cycles 60 cyc/mn

Enclosure Material polypropylene or equivalent

Factory Modification omit float

Features Viton Packing (Suitable for applications up to 250 Degrees )

Float Dia. 2.58 in

Float Length 7.13 in

Float Material Stainless Steel

Float Movement 2.5...5 in adjustable

Float Position Left

Float Rod Angle 90 Degrees

Float Travel 4 1/2 in

Height 5.98 in

HP @ 1 Phase - 120V 2 hp

HP @ 1 Phase - 240V 3 hp

HP @ 3 Phase - 240V 5 hp

Includes Viton Packing - No Float

Kit Composition float switch || float || rod

Local Signalling with external pointer

Materials In Contact With Fluid stainlesss steel 304 || viton || stainless steel 316 || cast iron || yellow brass

Max. Current 600 A

Max. Pressure 50 PSI

Max. Voltage 475 V

Maximum Operating Rate 60 cyc/mn

Mechanical Durability 300 cycles

Motor Power Kw 1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC

Mounting Side

Nema Degree Of Protection NEMA 1 UL 50

NEMA Rating 1

Operating Position vertical position only

Operating Temp. Range 250 Degrees F Max

Overall Length 8.93 in

Package Quantity 1

Product Certifications UL listed file E12158 || CSA file LR25490

Product Destination for closed tank

Product Or Component Type float switch

Product Specific Application liquid level control

Short-Circuit Protection 20 A cartridge fuse gG
