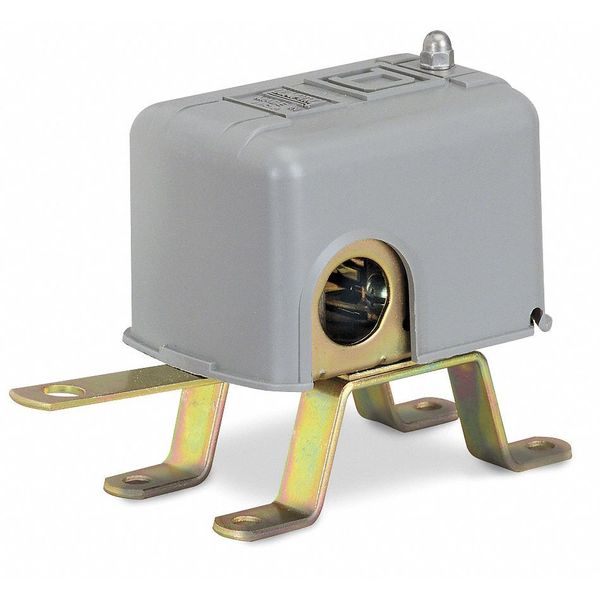

Lqd Lvl Swch, Vrtcl Opn Tnk, Open On Rise

SKU
Brand Square D
Categories
Description Open Liquid Level Switch, 10 A Amps, Contact Form DPST, VA Rating 460V AC, Float Travel 1 1/4 in, NEMA Rating 4, Operating Temp. Range -22 Degrees to 220 Degrees F, Switch Function Open On Rise, Overall Length 5.55 in, Float Material Stainless Steel, Float Length 7 in, Float Dia. 7 in, Height 8.25 in, Width 3.75 in, Max. Current 600 A, Max. Voltage 600, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Open Tank Mounting, Body Material Steel, Float Position Below
graingerSKU: 3DZU8, mscSKU: , zoro_no: G0398325, mongo_id: 65bbe7033aaddbd5a906aa7f

Web Price

$1,048.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -22-220ÃÂ°F

Ambient Air Temperature For Storage -22-220ÃÂ°F

Amps 10 A

Body Material Steel

Cable Entry Number 2 conduit entries for 3/4-14 NPT UL 508

Conduit Size 2 3/4 in

Contact Form DPST

Contact Operation contacts open on liquid rise

Contacts Type And Composition 2 NO, snap action, DPST-DB, Form XX

Controlled Fluid fresh water specific gravity of 0.85 in or higher || sea water specific gravity of 0.85 in or higher || hydraulic oil specific gravity of 0.85 in or higher || corrosive fluid specific gravity of 0.85 in or higher

Country of Origin (subject to change) Mexico

Device Application open tank heavy duty

Device Mounting pedestal

Device Short Name 9036G

Electrical Circuit Type power circuit

Electrical Connection screw-clamp terminals 10 AWG

Electrical Connections Screw Clamp

Electrical Durability 100 cycles 60 cyc/mn

Enclosure Material Cast Aluminium

Factory Modification without

Float Dia. 7 in

Float Length 7 in

Float Material Stainless Steel

Float Movement variable adjustable

Float Position Below

Float Rod Angle vertical

Float Travel 1 1/4 in

Force Down To Trip 27 ozf long lever || 29 ozf medium lever || 31 ozf short lever

Force Up To Trip 20 ozf long lever || 22 ozf medium lever || 24 ozf short lever

Height 8.25 in

HP @ 1 Phase - 120V 2 hp

HP @ 1 Phase - 240V 3 hp

HP @ 3 Phase - 240V 5 hp

Includes Reverse Action - Does Not Include Float or Rod

Kit Composition float switch || rod and float are to be choosen in accessories

Local Signalling without

Max. Current 600 A

Max. Voltage 600

Maximum Operating Rate 60 cyc/mn

Mechanical Durability 300 cycles

Motor Power Kw 1.5 kW 2 hp)115 V AC, 1 phase || 3.7 kW 5 hp)460 V AC, 1 phase || 3.7 kW 5 hp)475 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC

Mounting Open Tank

Nema Degree Of Protection NEMA 4 UL 50

NEMA Rating 4

Operating Position vertical position only

Operating Temp. Range -22 Degrees to 220 Degrees F

Overall Length 5.55 in

Package Quantity 1

Product Certifications CSA file LR25490 || UL listed file E12158

Product Destination for open tank or sump

Product Or Component Type float switch

Product Specific Application liquid level control
