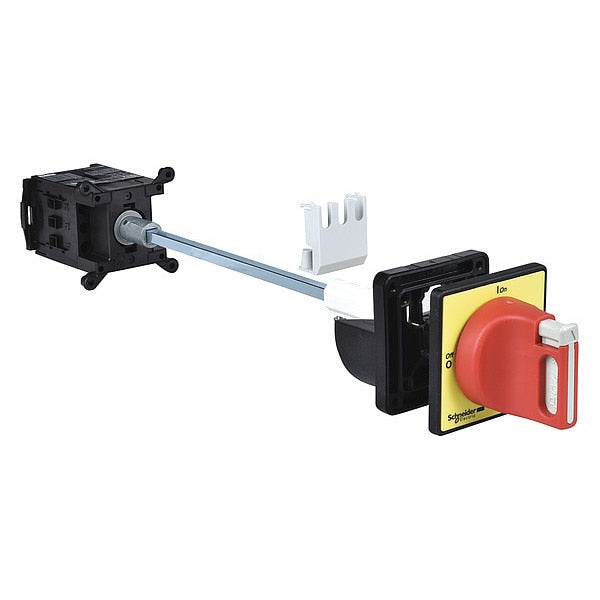

Main Emergswitch

SKU
Brand Square D
Categories
Description Main Emergswitch
graingerSKU: null, mscSKU: null, zoro_no: G0861850, mongo_id: 65bbe5dd3aaddbd5a9ff06ab

Web Price

$196.24 / each

Qty

Product Details

Base Dimension 60 x 60 mm

Breaking Capacity 200 kA 400 V AC-21A) || 200 kA 400 V AC-22A) || 200 kA 400 V AC-23A)

Connections - Terminals power circuit screw clamp terminals 4-4 mmÃÂ² flexible - with cable end || power circuit screw clamp terminals 4-4 mmÃÂ² solid

Contacts Type And Composition 3 NO

Control Type rotary handle

Country of Origin (subject to change) Czechia

Device Composition shaft extension || handle || switch

Device Short Name VCCDN

Electrical Durability 30000 cycles DC-1 to 5 || 50000 cycles AC-21

Fixing Mode hole 22.5 mm handle || by clips switch

Handle Colour red

Handle Front Plate Colour yellow

Height 60 mm

Intermittent Duty Class 30

Ip Degree Of Protection IP65

Making Capacity 200 A 400 V AC-21A || 200 A 400 V AC-22A || 200 A 400 V AC-23A

Marking 0 - 1

Mechanical Durability 50000 cycles

Mechanical Robustness shocks 11 ms 15 gn) IEC 60068-2-27 || vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6

Mounting Support handle door || switch symmetrical rail

Network Type DC || AC

Package Quantity 1

Performance Level standard

Poles Description 3P

Product Certifications GL || CSA || CCC || UL || UKCA

Product Name TeSys Mini-VARIO

Product Or Component Type emergency stop switch disconnector

Protective Treatment TC

Range TeSys

Rated Conditional Short-Circuit Current 6 kA 400 V 20 A aM || 6 kA 400 V 20 A gG

Rated Operational Power In W 4 kW 230 to 240 V AC-23A) || 5.5 kW 400 to 415 V AC-23A) || 7.5 kW 500 V AC-23A) || 11 kW 690 V AC-23A) || 3 kW 230 to 240 V AC-3) || 4 kW 400 to 415 V AC-3) || 5.5 kW 500 V AC-3) || 5.5 kW 690 V AC-3)

Rotary Handle Mounting Style extended

Rotary Handle Padlocking 1 to 3 padlocks 4-8 mm

Standards IEC 60947-3

Suitability For Isolation yes

Tightening Torque power circuit 0.7-0.7 N.m screw clamp terminals

Width 60 mm

[Icm] Rated Short-Circuit Making Capacity 0.5 kA 400 V at Ipeak

[Icw] Rated Short-Time Withstand Current 140 A 400 V 1 s

[Ie] Rated Operational Current 11 A AC-23)400 V

[Ithe] Conventional Enclosed Thermal Current 16 A

[Ith] Conventional Free Air Thermal Current 20 A
