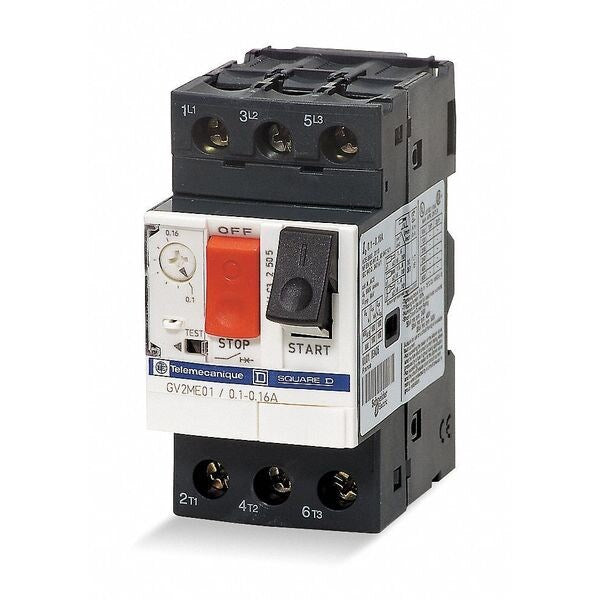

Manual Motor Starter, Button, 100A, 2P

SKU
Brand Square D
Categories
Description Manual Motor Starter, NEMA Size Not Applicable, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 0.25 A, Series TeSys Deca, Maximum Overload Relay Current Setting 0.25 A, Minimum Overload Relay Current Setting 0.16 A, NEMA Enclosure Rating No Enclosure, Overload Protection Type Thermal, Starter Style IEC, Terminal Connection Type Screw Clamp Terminals, IP Rating IP20, Resistance Properties Fire Resistant, Frequency 50/60 Hz, Overall Depth 3.09 in
graingerSKU: , mscSKU: , zoro_no: G0315104, mongo_id: 65bbe6893aaddbd5a9038273

Web Price

$236.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-60ÃÂ°C

Ambient Air Temperature For Storage -40-80ÃÂ°C

Amps AC 0.16 to 0.25

Breaking Capacity 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2

Climatic Withstand IACS E10

Color dark grey

Control Type push-button

Country of Origin (subject to change) Multiple

Current AC 0.25 A

Depth 3.03 in

Description/Special Features Screw Clamp Terminals, Single Unit

Device Application motor protection

Device Short Name GV2ME

Electrical Durability 100000 cycles AC-3 415 V In

Electrical Operating Durability 100,000

Enclosure NEMA Rating No Enclosure

Fire Resistance 960ÃÂ°C IEC 60695-2-11

Fixing Mode 35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)

Frequency 50/60 Hz

Height 3.5 in

Ik Degree Of Protection IK04

Includes Pilot Light No

Ip Degree Of Protection IP20 IEC 60529

IP Rating IP20

Line Rated Current 0.25 A

Magnetic Tripping Current 2.4-2.4 A

Max. Voltage 600V AC

Maximum Operating Temperature 140 Degrees F

Maximum Overload Relay Current Setting 0.25 A

Maximum Voltage Rating 600V AC

Mechanical Durability 100000 cycles

Mechanical Operating Durability 100,000

Mechanical Robustness shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz

Minimum Operating Temperature -4 Degrees F

Minimum Overload Relay Current Setting 0.16 A

Motor Power Kw 0.06-0.06 kW 400/415 V AC 50/60 Hz

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Network Frequency 50/60 Hz IEC 60947-4-1

Network Type AC

Number of Poles 3

Operating Altitude 6561.68 ft (2000 m)

Operator Push Button

Overall Depth 3.09 in

Overall Height 3.5 in

Overall Width 1.77 in

Overload Protection Type Thermal

Overload Relay Amp Setting 0.16 to 0.25A

Package Quantity 1

Phase Three

Phase Failure Sensitivity yes IEC 60947-4-1

Phase Loss Sensitivity Yes

Pilot Light No

Poles Description 3P

Power Dissipation Per Pole 2.5 W

Product Certifications CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || RINA || DNV-GL || UKCA

Product Name TeSys GV2 || TeSys Deca

Product Or Component Type motor circuit breaker

Range TeSys Deca

Rated Duty continuous IEC 60947-4-1

Resistance Properties Fire Resistant

Series TeSys Deca

Standards ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed

Starter Style IEC

Status Indicator No Indicator

Suitability For Isolation yes IEC 60947-1ÃÂ§ 7-1-6

Terminal Connection Type Screw Clamp Terminals

Thermal Protection Adjustment Range 0.16-0.25 A IEC 60947-4-1

Tightening Torque 1.7 N.m screw clamp terminal

Trip Unit Technology thermal-magnetic

Utilisation Category category A IEC 60947-2 || AC-3 IEC 60947-4-1

Width 1.75 in

[Ics] Rated Service Short-Circuit Breaking Capacity 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 100 % 690 V AC 50/60 Hz IEC 60947-2

[Ith] Conventional Free Air Thermal Current 0.25 A IEC 60947-4-1

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz IEC 60947-2

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-2

[Ui] Rated Insulation Voltage 690 V AC 50/60 Hz IEC 60947-2
