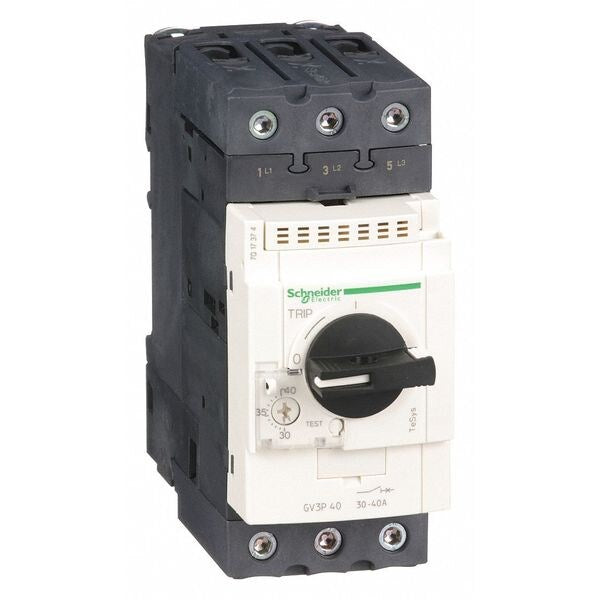

Manual Motor Starter, Knob, 30 to 40A, 600V

SKU
Brand Square D
Categories
Description Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 3 hp, Horsepower @ Single Phase - 240V AC 5 hp, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 40 A, Horsepower @ Three Phase - 208V AC 10 hp, Horsepower @ Three Phase - 240V AC 10 hp, Horsepower @ Three Phase - 480V AC 25 hp, Series TeSys Deca, Horsepower @ Three Phase - 600V AC 30 hp, Maximum Overload Relay Current Setting 40 A
graingerSKU: , mscSKU: , zoro_no: G2694815, mongo_id: 65bbe8789a749db822792fbe

Web Price

$619.99 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-60ÃÂ°C

Ambient Air Temperature For Storage -40-80ÃÂ°C

Amps AC 30 to 40

Breaking Capacity 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 12 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 6 kA Icu 690 V AC 50/60 Hz IEC 60947-2

Climatic Withstand IACS E10

Color dark grey

Control Type rotary handle

Country of Origin (subject to change) France

Current AC 40 A

Depth 4.4 in

Description/Special Features Class 10 Ambient-Compensated Thermal Overload Relay

Device Application motor protection

Device Short Name GV3P

Electrical Durability 50000 cycles AC-3 415 V In

Electrical Operating Durability 50,000

Enclosure NEMA Rating No Enclosure

Fire Resistance 960ÃÂ°C IEC 60695-2-11

Fixing Mode 35 mm symmetrical DIN rail clipped || panel screwed with 3 x M4 screws)

Frequency 50/60 Hz

Height 4.7 in

Horsepower @ Single Phase - 120V AC 3 hp

Horsepower @ Single Phase - 240V AC 5 hp

Horsepower @ Three Phase - 208V AC 10 hp

Horsepower @ Three Phase - 240V AC 10 hp

Horsepower @ Three Phase - 480V AC 25 hp

Horsepower @ Three Phase - 600V AC 30 hp

HP @ 1 Phase - 120V 3 hp

HP @ 1 Phase - 230V 5 hp

HP @ 3 Phase - 208V 10 hp

HP @ 3 Phase - 240V 10 hp

HP @ 3 Phase - 460-575V 30

HP @ 3 Phase - 480V 25 hp

HP @ 3 Phase - 575V 30 hp

Ik Degree Of Protection IK09 enclosure

Includes Pilot Light No

Ip Degree Of Protection IP20 IEC 60529

IP Rating IP20

Line Rated Current 40 A

Magnetic Tripping Current 560-560 A

Max. Voltage 600V AC

Maximum Operating Temperature 140 Degrees F

Maximum Overload Relay Current Setting 40 A

Maximum Voltage Rating 600V AC

Mechanical Durability 50000 cycles

Mechanical Operating Durability 50,000

Mechanical Robustness shocks 15 Gn for 11 ms contactor open || shocks 30 Gn for 11 ms contactor closed || vibrations 4 Gn, 5...300 Hz

Minimum Operating Temperature -4 Degrees F

Minimum Overload Relay Current Setting 30 A

Motor Power Kw 18.5-18.5 kW 400/415 V AC 50/60 Hz || 22-22 kW 500 V AC 50/60 Hz || 37-37 kW 690 V AC 50/60 Hz

Mounting Style DIN Rail

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Network Frequency 50/60 Hz IEC 60947-4-1

Network Type AC

Number of Poles 3

Operating Altitude 9842.52 ft (3000 m)

Operator Selector Switch

Overall Depth 5.35 in

Overall Height 5.2 in

Overall Width 2.17 in

Overload Protection Type Thermal

Overload Relay Amp Setting 30 to 40A

Package Quantity 1

Phase Three

Phase Failure Sensitivity yes IEC 60947-4-1

Phase Loss Sensitivity Yes

Pilot Light No

Poles Description 3P

Power Dissipation Per Pole 8 W

Product Certifications CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || ABS || DNV-GL || UKCA

Product Name TeSys GV3 || TeSys Deca

Product Or Component Type motor circuit breaker

Range TeSys Deca

Rated Duty continuous IEC 60947-4-1

Rated Service Short-Circuit Breaking Capacity 100% 230/240 V AC 50/60 Hz IEC 60947-2; 100% 400/415 V AC 50/60 Hz IEC 60947-2; 100% 440 V AC 50/60 Hz IEC 60947-2; 50% 500 V AC 50/60 Hz IEC 60947-2; 50% 690 V AC 50/60 Hz IEC 60947-2

Resistance Properties Fire Resistant

Series TeSys Deca

Standards ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed

Starter Style IEC

Suitability For Isolation yes IEC 60947-1

Terminal Connection Type Screw Clamp Terminals

Thermal Protection Adjustment Range 30-40 A IEC 60947-4-1

Tightening Torque 5 N.m screw clamp terminal

Trip Unit Technology thermal-magnetic

Utilisation Category AC-3 IEC 60947-4-1

Width 2.4 in

[Ics] Rated Service Short-Circuit Breaking Capacity 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 50 % 500 V AC 50/60 Hz IEC 60947-2 || 50 % 690 V AC 50/60 Hz IEC 60947-2

[Ith] Conventional Free Air Thermal Current 40 A IEC 60947-4-1

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz IEC 60947-2

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-2

[Ui] Rated Insulation Voltage 690 V AC 50/60 Hz IEC 60947-2
