Name: Mini Main Emergswitch 12A
Brand: Square D
SKU: G0562305
Price: 115.44 USD
Availability: InStock

Home / Mini Main Emergswitch 12A

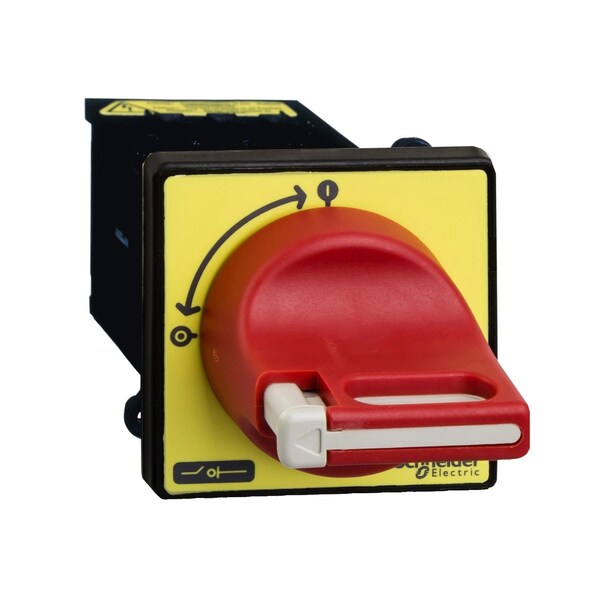

Mini Main Emergswitch 12A

SKU
Brand Square D
Categories
Description Mini Main Emergswitch 12A
graingerSKU: 48U434, mscSKU: , zoro_no: G0562305, mongo_id: 65bbe6893aaddbd5a9038279

Web Price

$115.44 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-50ÃÂ°C

Base Dimension 60 x 60 mm

Breaking Capacity 120 kA 400 V AC-21A) || 120 kA 400 V AC-22A) || 120 kA 400 V AC-23A)

Connections - Terminals power circuit screw clamp terminals 4-4 mmÃÂ² flexible - with cable end || power circuit screw clamp terminals 4-4 mmÃÂ² solid

Contacts Type And Composition 3 NO

Control Type rotary handle

Conventional Enclosed Thermal Current 10 A

Conventional Free Air Thermal Current 12 A

Country of Origin (subject to change) Czechia

Device Composition handle || switch

Device Short Name VCDN

Electrical Durability 30000 cycles DC-1 to 5 || 50000 cycles AC-21

Fire Resistance 960ÃÂ°C IEC 60695-2-1

Fixing Mode hole 22.5 mm handle

Handle Colour red

Handle Front Plate Colour yellow

Height 60 mm

Intermittent Duty Class 30

Ip Degree Of Protection IP65

Making Capacity 120 A 400 V AC-21A || 120 A 400 V AC-22A || 120 A 400 V AC-23A

Marking 0 - 1

Mechanical Durability 50000 cycles

Mechanical Robustness vibrations 10 to 150 Hz 5 gn) IEC 60068-2-6 || shocks 11 ms 15 gn) IEC 60068-2-27

Mounting Support handle door || switch door

Network Type AC || DC

Package Quantity 1

Performance Level standard

Poles Description 3P

Product Certifications GL || CCC || UL || CSA || UKCA

Product Name TeSys Mini-VARIO

Product Or Component Type emergency stop switch disconnector

Protective Treatment TC

Range TeSys

Rated Conditional Short Circuit Current 6 kA 400 V 12 A aM; 6 kA 400 V 12 A gG

Rated Conditional Short-Circuit Current 6 kA 400 V 12 A aM || 6 kA 400 V 12 A gG

Rated Operational Power In W 3 kW 230 to 240 V AC-23A) || 4 kW 400 to 415 V AC-23A) || 5.5 kW 500 V AC-23A) || 7.5 kW 690 V AC-23A) || 1.5 kW 230 to 240 V AC-3) || 3 kW 400 to 415 V AC-3) || 4 kW 500 V AC-3) || 4 kW 690 V AC-3)

Rotary Handle Mounting Style direct

Rotary Handle Padlocking 1 to 3 padlocks 4-8 mm

Standards IEC 60947-3

Suitability For Isolation yes

Tightening Torque power circuit 0.7-0.7 N.m screw clamp terminals

Width 60 mm

[Icm] Rated Short-Circuit Making Capacity 0.5 kA 400 V at Ipeak

[Icw] Rated Short-Time Withstand Current 140 A 400 V 1 s

[Ie] Rated Operational Current 8.1 A AC-23)400 V

[Ithe] Conventional Enclosed Thermal Current 10A

[Ith] Conventional Free Air Thermal Current 12 A

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz
