Home / Miniature Circuit Breaker, 100, 277/480VAC, 3 Pole, Bolt-On Mounting Style, EGB Series

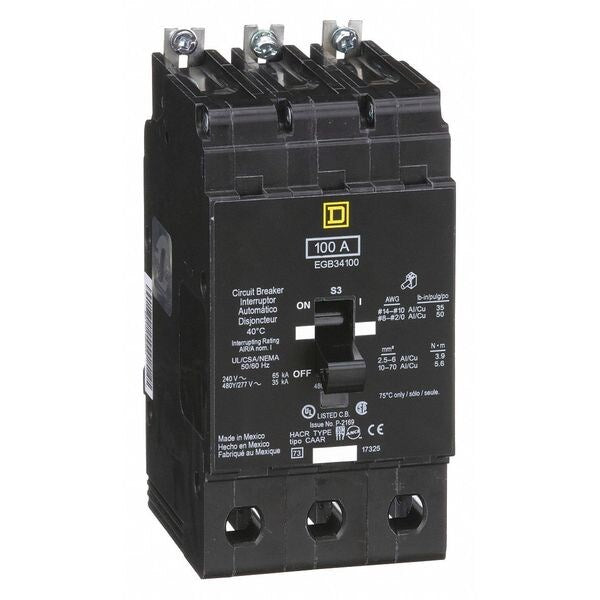

Miniature Circuit Breaker, 100, 277/480VAC, 3 Pole, Bolt-On Mounting Style, EGB Series

SKU
Brand Square D
Categories
Description Miniature Circuit Breaker 480Y/277V 100A, Series EGB
graingerSKU: 48M990, mscSKU: , zoro_no: G0845918, mongo_id: 65bbe6a03aaddbd5a90407ef

Web Price

$1,527.49 / each

Qty

Product Details

AC Voltage Rating 277/480VAC

Ambient Air Temperature For Operation 104ÃÂ°F (40ÃÂ°C)

Amps 100

Application HACR rated Applications

AWG Gauge AWG 12 to AWG 2/0 aluminium; AWG 14 to AWG 2/0 copper

Breaking Capacity 35 kA 277 V AC; 65 kA 240 V AC; 35 kA 480Y/277 V AC; 65 kA 120 V AC; 65 kA 120/240 V AC

Breaking Capacity Code G

Circuit Breaker Application HACR rated

Circuit Breaker Mounting Style Bolt-On

Country of Origin (subject to change) Mexico

Depth 4.05 in

Electrical Connection Lugs aluminium

Features Mercury Free

For Use With NF Panelboard

Frame Size G; E-Frame

Height 5.66 in

High Amp Trip Setting 2300 A

Holding Current 1000 A

Interrupt Rating 35 kA at 480Y/277V AC, 65 kA at 120/240V AC

Line Rated Current 100 A

Local Signalling Trip indicator

Max. AIR Rating 65 kA

Max. Wire Size 2/0 AWG (Cu/Al)

Maximum Operating Voltage 480Y/277 V AC

Min. Wire Size 12 AWG (Al), 14 AWG (Cu)

Module Type E-Frame

Number of Poles 3

Package Quantity 1

Product Or Component Type Miniature circuit-breaker

Product Type Miniature Circuit Breaker 480Y/277V 100A

Protection Type Short-circuit; Overload

Series EGB

Standards cULus

Terminal Connection Lug

Tightening Torque 34.52 lbf.in (3.9 N.m) 0.00 to 0.01 inÃÂ² (2.5 to 6 mmÃÂ²) (AWG 14 to AWG 10); 49.56 lbf.in (5.6 N.m) 0.02 to 0.11 inÃÂ² (10 to 70 mmÃÂ²) (AWG 8 to AWG 2/0)

Trip Type Thermal Magnetic

Trip Unit Technology Thermal-magnetic

Width 2.94 in
