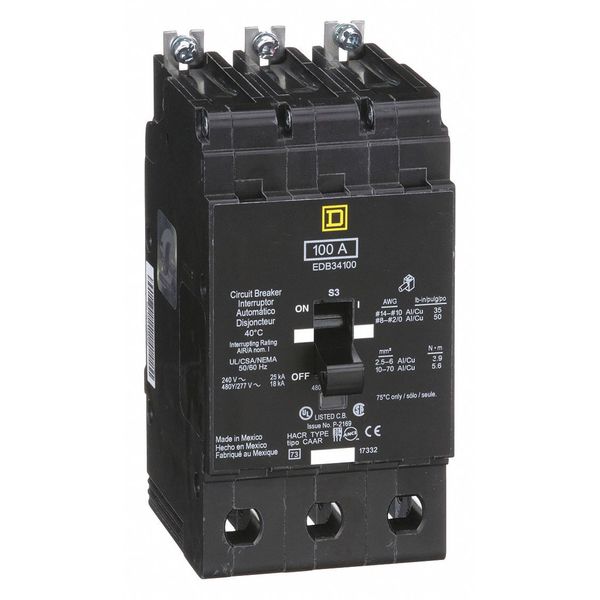

Miniature Circuit Breaker, 100 A, 277/480V AC, 3 Pole, Bolt On Mounting Style, EDB Series

SKU
Brand Square D
Categories
Description Miniature Circuit Breaker, Amps 100 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 125/250V DC, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Three, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 2.94 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
graingerSKU: 3TW49, mscSKU: , zoro_no: G1896036, mongo_id: 65bbe5af3aaddbd5a9fdbfc8

Web Price

$1,006.24 / each

Qty

Product Details

AC Voltage Rating 277/480V AC

Ambient Air Temperature For Operation 104ÃÂ°F (40ÃÂ°C)

Amps 100 A

Application HACR rated Applications

AWG Gauge AWG 12 to AWG 2/0 aluminium; AWG 14 to AWG 2/0 copper

Breaking Capacity 18 kA 277 V AC; 25 kA 240 V AC; 18 kA 480Y/277 V AC; 25 kA 120 V AC; 25 kA 120/240 V AC

Breaking Capacity Code D

Circuit Breaker Actuator Toggle

Circuit Breaker Application HACR rated

Circuit Breaker Mounting Style Bolt On

Circuit Breaker Type Standard

Compatible Panelboard/Load Center Series NF

Country of Origin (subject to change) Mexico

DC Voltage Rating 125/250V DC

Depth 4.05 in

Electrical Connection Lugs aluminium

Features Mercury Free

For Use With Square D NF Panelboards

Frame Size 125A/EDB

Height 5.66 in

High Amp Trip Setting 2300 A

Holding Current 1000 A

Interrupt Rating 18 kA at 277/480Y/277V AC, 25 kA at 120/240V AC

Length 5.66 in

Length (Straight Wireway) 5.66 in

Local Signalling Trip indicator

Max. AIR Rating 18kA at 277/480V AC

Max. Operating Temp. 104 Degrees F

Max. Wire Size 2 AWG

Maximum Operating Voltage 480Y/277 V AC

Min. Wire Size 12 AWG (Al), 14 AWG (Cu)

Module Type E-Frame

Mounting Bolt on

Mounting Mode Bolt-on

Number of Poles 3

Package Quantity 1

Phase Three

Product Destination NF panelboard

Product Or Component Type Miniature circuit-breaker

Protection Type Overload; Short-circuit

Series EDB

Standards cULus

Terminal Connection Lug

Tightening Torque 34.52 lbf.in (3.9 N.m) 0.00 to 0.01 inÃÂ² (2.5 to 6 mmÃÂ²) (AWG 14 to AWG 10); 49.56 lbf.in (5.6 N.m) 0.02 to 0.11 inÃÂ² (10 to 70 mmÃÂ²) (AWG 8 to AWG 2/0)

Trip Type Thermal Magnetic

Trip Unit Technology Thermal-magnetic

Voltage 480Y/277 VAC

Width 2.94 in
