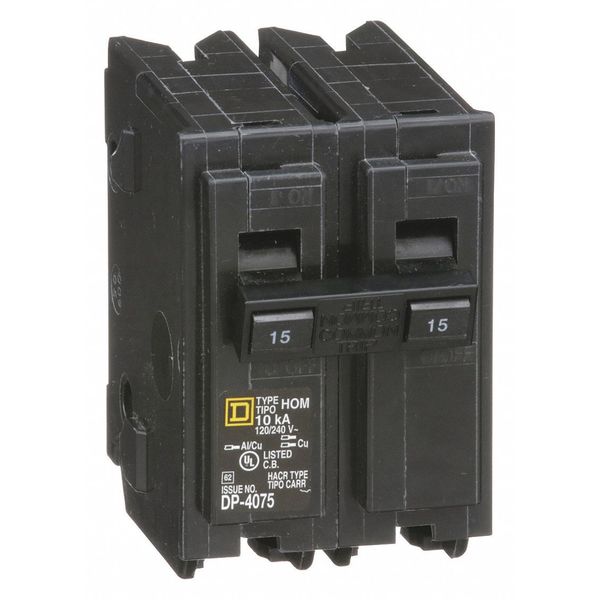

Miniature Circuit Breaker, 15 A, 120/240V AC, 2 Pole, Plug In Mounting Style, HOM Series

SKU
Brand Square D
Categories
Description Miniature Circuit Breaker, Amps 15 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series HOM, Phase Single, Series HOM, Max. AIR Rating 10kA at 120/240V AC, For Use With Homeline Load Center, Terminal Connection Screw Clamp, Frame Size 100A/HOM, Length 3.13 in, Width 2 in, Depth 2.98 in, Min. Operating Temp. 104 Degrees F
graingerSKU: 1D350, mscSKU: , zoro_no: G1342844, mongo_id: 65bbe79c3aaddbd5a90a4dcc

Web Price

$26.94 / each

Qty

Product Details

AC Voltage Rating 120/240V AC

Ambient Air Temperature For Operation 104ÃÂ°F (40ÃÂ°C)

Amps 15 A

Application HACR rated Applications

Certifications UL Listed

Circuit Breaker Actuator Paddle

Circuit Breaker Mounting Style Plug In

Circuit Breaker Type Standard

Compatible Panelboard/Load Center Series HOM

Country of Origin (subject to change) Mexico

DC Voltage Rating Not Rated

Depth 2.98 in

Electrical Connection Clamp terminal for 2 cables

Features Mercury Free

For Use With Homeline Load Center

Frame Size 100A/HOM

Height 3.13 in

Length 3.13 in

Length (Straight Wireway) 3.13 in

Max. AIR Rating 10kA at 120/240V AC

Max. Operating Temp. 104 Degrees F

Max. Wire Size 8 AWG

Min. Operating Temp. 104 Degrees F

Min. Wire Size 14 AWG

Mounting Type Plug-in

Number of Poles 2

Package Quantity 1

Phase Single

Ratings HACR rated

Series HOM

Short Circuit Current Rating 10 kA

Standards CSA Certified, HACR, UL Listed

Terminal Connection Screw Clamp

Tightening Torque 35.40 lbf.in (4.0 N.m) 0.00 to 0.02 inÃÂ² (2.5 to 10 mmÃÂ²) (AWG 16 to AWG 14); 35.40 lbf.in (4.0 N.m) 0.01 to 0.03 inÃÂ² (4 to 20 mmÃÂ²) (AWG 12 to AWG 4)

Voltage 120/240 VAC

Voltage Rating 120/240 V AC

Width 2 in

Wire Size 1 x AWG 14 to AWG 8 ( aluminium/copper ); 2 x AWG 14 to AWG 10 ( copper )
