Home / Miniature Circuit Breaker, 15 A, 120V AC, 1 Pole, Plug In Mounting Style, HOM Series

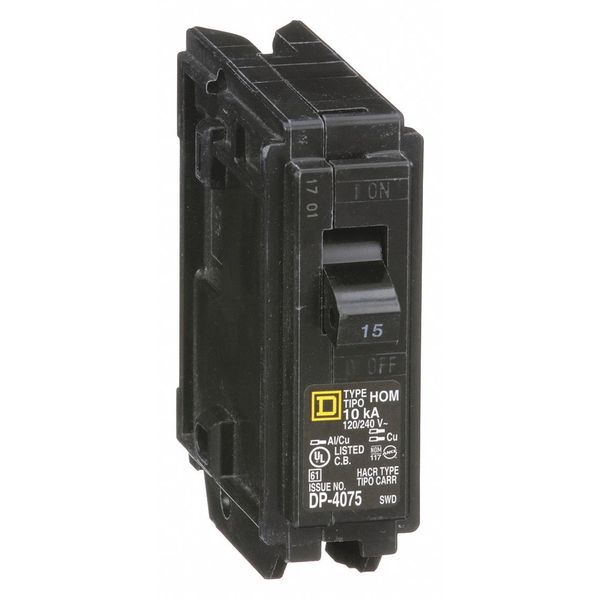

Miniature Circuit Breaker, 15 A, 120V AC, 1 Pole, Plug In Mounting Style, HOM Series

Miniature Circuit Breaker, 15 A, 120V AC, 1 Pole, Plug In Mounting Style, HOM Series

  • Square D
  • Miniature Circuit Breaker, Amps 15 A, AC Voltage Rating 120V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series HOM, Phase Single, Series HOM, Max. AIR Rating 10kA at 120V AC, For Use With Homeline Load Center, Terminal Connection Screw Clamp, Frame Size 100A/HOM, Length 3.13 in, Width 1 in, Depth 2.98 in, Min. Operating Temp. 104 Degrees F

    graingerSKU: 1D340, mscSKU: , zoro_no: G1612922, mongo_id: 65bbe73d9a749db82272882f

Web Price
$12.69 / each
Qty

Product Details

120V AC
104°F (40°C)
15 A
HACR and Switching Duty rated Applications
UL Listed
Paddle
Plug In
Standard
HOM
Multiple
Not Rated
2.98 in
Clamp terminal for 2 cables
Mercury Free
Homeline Load Center
100A/HOM
3.13 in
3.13 in
3.13 in
10kA at 120V AC
104 Degrees F
8 AWG
104 Degrees F
14 AWG
Plug-in
1
1
Single
HACR and Switching Duty rated
HOM
10 kA
CSA Certified, HACR, Switching Duty rated, UL Listed
Screw Clamp
35.40 lbf.in (4.0 N.m) 0.00 to 0.01 in² (2.5 to 6 mm²) (AWG 14 to AWG 8)
120/240 VAC
120/240 V AC
1 in
1 x AWG 14 to AWG 8 ( aluminium/copper ); 2 x AWG 14 to AWG 10 ( copper )
