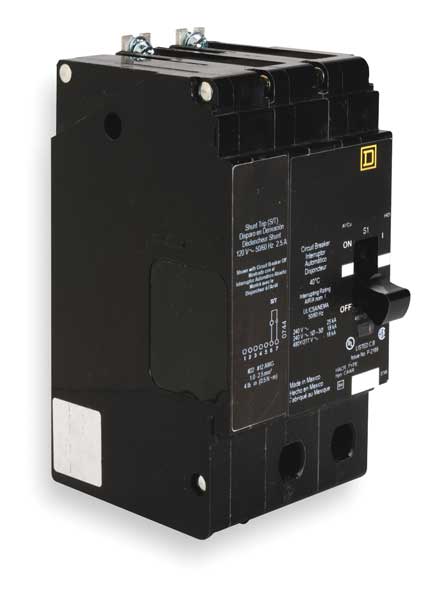

Miniature Circuit Breaker, 15 A, 277/480V AC, 2 Pole, Bolt On Mounting Style, EDB Series

Miniature Circuit Breaker, 15 A, 277/480V AC, 2 Pole, Bolt On Mounting Style, EDB Series

  • Square D
  • Miniature Circuit Breaker, Amps 15 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Shunt Trip, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Single, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 2.94 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F

    graingerSKU: 2JWF8, mscSKU: , zoro_no: G0420691, mongo_id: 65bbee31526e052139af5d7e

Web Price
$1,633.74 / each
Qty

Product Details

277/480V AC
104°F (40°C)
15 A
HACR rated Applications, HID rated Applications
AWG 12 to AWG 6 aluminium; AWG 14 to AWG 6 copper
18 kA 277 V AC; 25 kA 240 V AC; 18 kA 480Y/277 V AC; 25 kA 120 V AC; 25 kA 120/240 V AC
D
Toggle
HACR rated; HID rated
Bolt On
Shunt Trip
NF
Mexico
Not Rated
4.05 in
Lugs aluminium
Mercury Free
Square D NF Panelboards
125A/EDB
5.66 in
875 A
270 A
18 kA at 277/480Y/277V AC, 25 kA at 120/240V AC
5.66 in
5.66 in
Trip indicator
18kA at 277/480V AC
104 Degrees F
6 AWG
480Y/277 V AC
12 AWG (Al), 14 AWG (Cu)
E-Frame
Bolt on
Bolt-on
2
3
3
1
Single
NF panelboard
Miniature circuit-breaker
Overload; Short-circuit
EDB
cULus
Lug
30.09 lbf.in (3.4 N.m) 0.00 to 0.02 in² (2.5 to 16 mm²) (AWG 14 to AWG 6)
Shunt Trip, Thermal Magnetic
Thermal-magnetic
480Y/277 VAC
2.94 in

Viewed together
