Home / Miniature Circuit Breaker, 20 A, 277V AC, 1 Pole, Bolt On Mounting Style, EDB Series

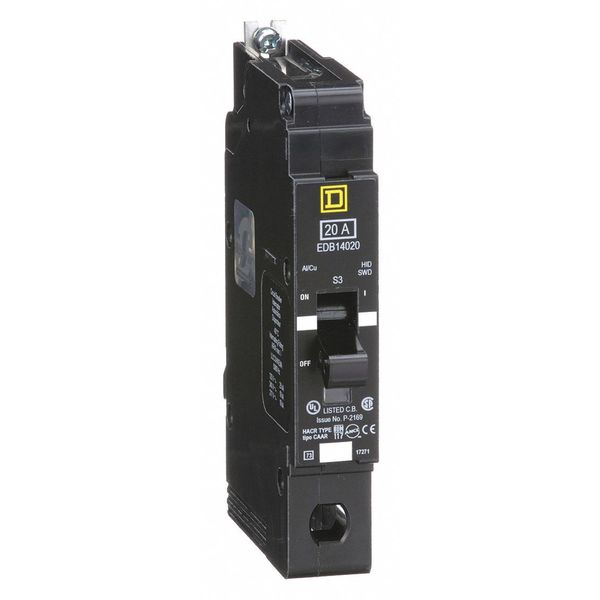

Miniature Circuit Breaker, 20 A, 277V AC, 1 Pole, Bolt On Mounting Style, EDB Series

Miniature Circuit Breaker, 20 A, 277V AC, 1 Pole, Bolt On Mounting Style, EDB Series

  • Square D
  • Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 277V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Single, Series EDB, Max. AIR Rating 18kA at 120/240V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 0.98 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F

    graingerSKU: 3TW13, mscSKU: 69531770, zoro_no: G3369773, mongo_id: 65bbe7bf9a749db8227538ce

Web Price
$169.99 / each
Qty

Product Details

277V AC
20 A
HID rated Applications, Switching Duty rated Applications, HACR rated Applications
Toggle
Bolt On
Standard
NF
Mexico
Not Rated
4.05 in
Mercury Free
Square D NF Panelboards
125A/EDB
5.66 in
875 A
18 kA at 277/240/120V AC, 25 kA at 120V AC
5.66 in
5.66 in
18kA at 120/240V AC
104 Degrees F
6 AWG
12 AWG (Al), 14 AWG (Cu)
Bolt on
1
1
Single
EDB
cULus, IEC
Lug
Thermal Magnetic
277VAC
0.98 in
