Home / Miniature Circuit Breaker, 20 A, 277V AC, 1 Pole, Bolt On Mounting Style, EDB Series

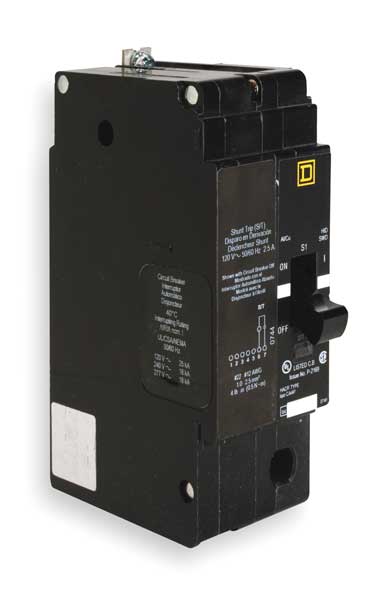

Miniature Circuit Breaker, 20 A, 277V AC, 1 Pole, Bolt On Mounting Style, EDB Series

Miniature Circuit Breaker, 20 A, 277V AC, 1 Pole, Bolt On Mounting Style, EDB Series

  • Square D
  • Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 277V AC, Circuit Breaker Type Shunt Trip, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Single, Series EDB, Max. AIR Rating 18kA at 120/240V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 1.96 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F

    graingerSKU: 2JWC8, mscSKU: , zoro_no: G2238826, mongo_id: 65bbe92322d7a989a9938659

Web Price
$1,201.24 / each
Qty

Product Details

277V AC
104°F (40°C)
20 A
HID rated Applications, HACR rated Applications, Switching Duty rated Applications
AWG 12 to AWG 6 aluminium; AWG 14 to AWG 6 copper
18 kA 277 V AC; 18 kA 240 V AC; 25 kA 120 V AC; 18 kA 120/240 V AC
D
Toggle
HID rated; HACR rated; Switching Duty rated
Bolt On
Shunt Trip
NF
Mexico
Not Rated
4.05 in
Lugs aluminium
Mercury Free
Square D NF Panelboards
125A/EDB
5.66 in
875 A
270 A
18 kA at 277/240/120V AC, 25 kA at 120V AC
5.66 in
5.66 in
Trip indicator
18kA at 120/240V AC
104 Degrees F
6 AWG
277 V AC
12 AWG (Al), 14 AWG (Cu)
E-Frame
Bolt on
Bolt-on
1
2
2
1
Single
cULus; IEC
NF panelboard
Miniature circuit-breaker
Short-circuit; Overload
EDB
cULus, IEC
Lug
30.09 lbf.in (3.4 N.m) 0.00 to 0.02 in² (2.5 to 16 mm²) (AWG 14 to AWG 6)
Shunt Trip, Thermal Magnetic
Thermal-magnetic
277VAC
1.96 in

Viewed together
