Home / Miniature Circuit Breaker, 30, 120/240VAC, 2 Pole, Plug-In Mounting Style, HOM Series

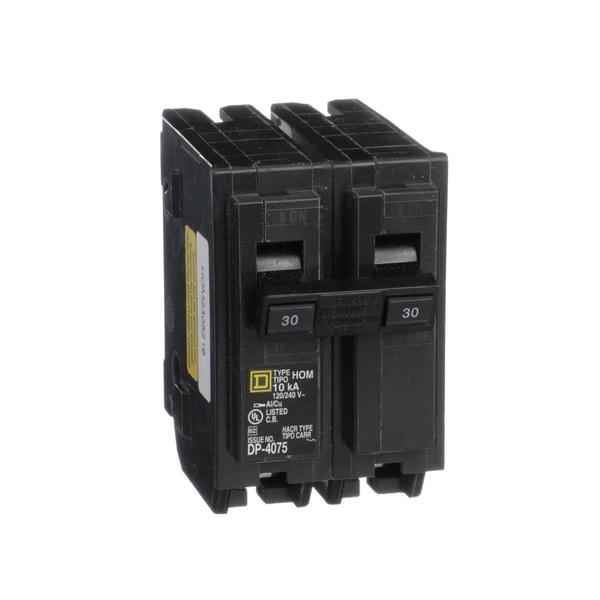

Miniature Circuit Breaker, 30, 120/240VAC, 2 Pole, Plug-In Mounting Style, HOM Series

SKU
Brand Square D
Categories
Description Miniature Circuit Breaker 120/240V 30A, Series HOM
graingerSKU: 48M162, mscSKU: , zoro_no: G0841185, mongo_id: 65bbe83a22d7a989a98e287b

Web Price

$36.74 / each

Qty

Product Details

AC Voltage Rating 120/240VAC

Ambient Air Temperature For Operation 104ÃÂ°F (40ÃÂ°C)

Amps 30

Application HACR rated Applications

Circuit Breaker Mounting Style Plug-In

Circuit Breaker Type Standard

Country of Origin (subject to change) Mexico

Current Rating 30 A

Features Mercury Free

Max. Wire Size 2 AWG (Cu/Al)

Min. Wire Size 8 AWG (Cu/Al)

Number of Poles 2

Package Quantity 1

Product Type Miniature Circuit Breaker 120/240V 30A

Ratings HACR rated

Series HOM

Short Circuit Current Rating 10 kA

Standards UL Listed

Terminal Connection Box Lugs

Tightening Torque 35.40 lbf.in (4.0 N.m) 0.00 to 0.02 inÃÂ² (2.5 to 10 mmÃÂ²) (AWG 16 to AWG 14); 35.40 lbf.in (4.0 N.m) 0.01 to 0.03 inÃÂ² (4 to 20 mmÃÂ²) (AWG 12 to AWG 4)

Voltage Rating 120/240 V AC

Wire Size 1 x AWG 8 to AWG 2 ( aluminium/copper )
