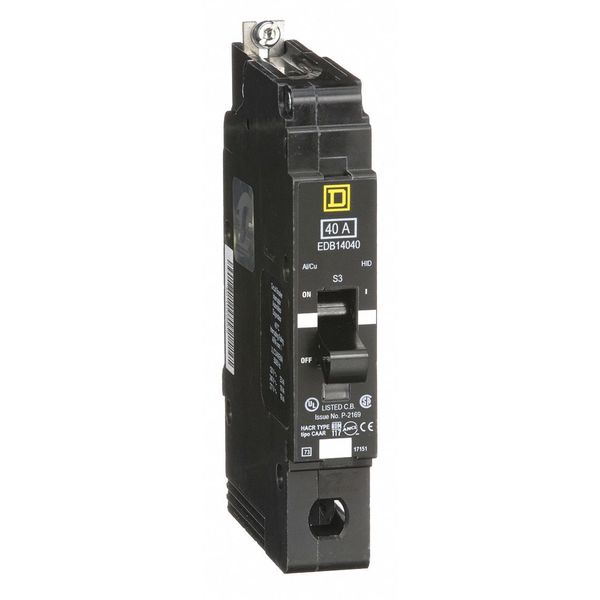

Miniature Circuit Breaker, 40 A, 277V AC, 1 Pole, Bolt On Mounting Style, EDB Series

SKU
Brand Square D
Categories
Description Miniature Circuit Breaker, Amps 40 A, AC Voltage Rating 277V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Single, Series EDB, Max. AIR Rating 18kA at 120/240V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 0.98 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
graingerSKU: 3TW17, mscSKU: 69660884, zoro_no: G0947037, mongo_id: 65bbe73d9a749db82272883c

Web Price

$184.99 / each

Qty

Product Details

AC Voltage Rating 277V AC

Ambient Air Temperature For Operation 104ÃÂ°F (40ÃÂ°C)

Amps 40 A

Application HACR rated Applications, HID rated Applications

AWG Gauge AWG 12 to AWG 2/0 aluminium; AWG 14 to AWG 2/0 copper

Breaking Capacity 18 kA 277 V AC; 18 kA 240 V AC; 25 kA 120 V AC; 18 kA 120/240 V AC

Breaking Capacity Code D

Circuit Breaker Actuator Toggle

Circuit Breaker Application HACR rated; HID rated

Circuit Breaker Mounting Style Bolt On

Circuit Breaker Type Standard

Compatible Panelboard/Load Center Series NF

Country of Origin (subject to change) Mexico

DC Voltage Rating Not Rated

Depth 4.05 in

Electrical Connection Lugs aluminium

Features Mercury Free

For Use With Square D NF Panelboards

Frame Size 125A/EDB

Height 5.66 in

High Amp Trip Setting 1800 A

Holding Current 630 A

Interrupt Rating 18 kA at 277/240/120V AC, 25 kA at 120V AC

Length 5.66 in

Length (Straight Wireway) 5.66 in

Local Signalling Trip indicator

Max. AIR Rating 18kA at 120/240V AC

Max. Operating Temp. 104 Degrees F

Max. Wire Size 2 AWG

Maximum Operating Voltage 277 V AC

Min. Wire Size 12 AWG (Al), 14 AWG (Cu)

Module Type E-Frame

Mounting Bolt on

Mounting Mode Bolt-on

Number of Poles 1

Package Quantity 1

Phase Single

Product Certifications cULus; IEC

Product Destination NF panelboard

Product Or Component Type Miniature circuit-breaker

Protection Type Short-circuit; Overload

Series EDB

Standards cULus, IEC

Terminal Connection Lug

Tightening Torque 34.52 lbf.in (3.9 N.m) 0.00 to 0.01 inÃÂ² (2.5 to 6 mmÃÂ²) (AWG 14 to AWG 10); 49.56 lbf.in (5.6 N.m) 0.02 to 0.11 inÃÂ² (10 to 70 mmÃÂ²) (AWG 8 to AWG 2/0)

Trip Type Thermal Magnetic

Trip Unit Technology Thermal-magnetic

Voltage 277VAC

Width 0.98 in
