Home / Miniature Circuit Breaker, 70 A, 277/480V AC, 2 Pole, Bolt On Mounting Style, EDB Series

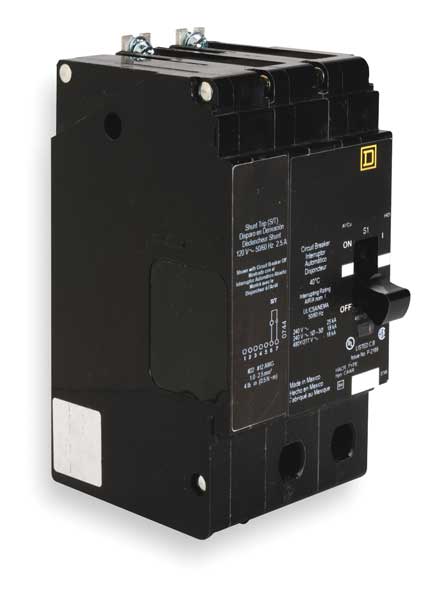

Miniature Circuit Breaker, 70 A, 277/480V AC, 2 Pole, Bolt On Mounting Style, EDB Series

Miniature Circuit Breaker, 70 A, 277/480V AC, 2 Pole, Bolt On Mounting Style, EDB Series

  • Square D
  • Miniature Circuit Breaker, Amps 70 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Shunt Trip, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Single, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 2.94 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F

    graingerSKU: 2JWH6, mscSKU: , zoro_no: G3340057, mongo_id: 65bbe74f3aaddbd5a908821a

Web Price
$1,916.24 / each
Qty

Product Details

277/480V AC
70 A
HACR rated Applications
Toggle
Bolt On
Shunt Trip
NF
Mexico
Not Rated
4.05 in
Mercury Free
Square D NF Panelboards
125A/EDB
5.66 in
1800 A
18 kA at 277/480Y/277V AC, 25 kA at 120/240V AC
5.66 in
5.66 in
18kA at 277/480V AC
104 Degrees F
2 AWG
12 AWG (Al), 14 AWG (Cu)
Bolt on
2
1
Single
EDB
cULus
Lug
Shunt Trip, Thermal Magnetic
480Y/277 VAC
2.94 in
