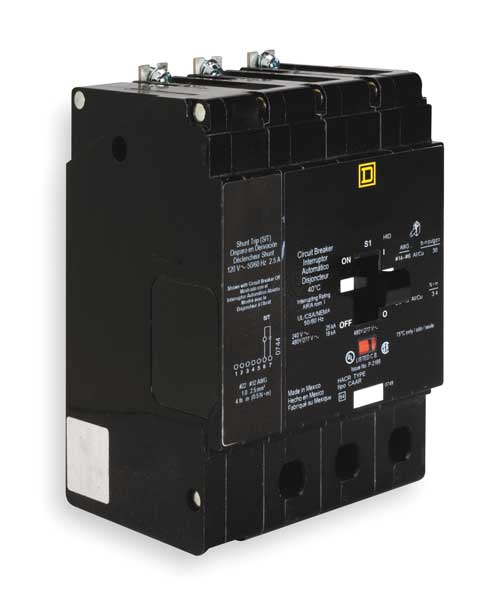

Miniature Circuit Breaker, 80 A, 277/480V AC, 3 Pole, Bolt On Mounting Style, EDB Series

Miniature Circuit Breaker, 80 A, 277/480V AC, 3 Pole, Bolt On Mounting Style, EDB Series

  • Square D
  • Miniature Circuit Breaker, Amps 80 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Shunt Trip, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Three, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 3.92 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F

    graingerSKU: null, mscSKU: null, zoro_no: G2552785, mongo_id: 65bbe5f53aaddbd5a9ff8dd8

Web Price
$2,049.99 / each
Qty

Product Details

277/480V AC
80 A
HACR rated Applications
Toggle
Bolt On
Shunt Trip
NF
Mexico
Not Rated
4.05 in
Mercury Free
Square D NF Panelboards
125A/EDB
5.66 in
2300 A
18 kA at 277/480Y/277V AC, 25 kA at 120/240V AC
5.66 in
5.66 in
18kA at 277/480V AC
104 Degrees F
2 AWG
12 AWG (Al), 14 AWG (Cu)
Bolt on
3
1
Three
EDB
cULus
Lug
Shunt Trip, Thermal Magnetic
480Y/277 VAC
3.92 in
