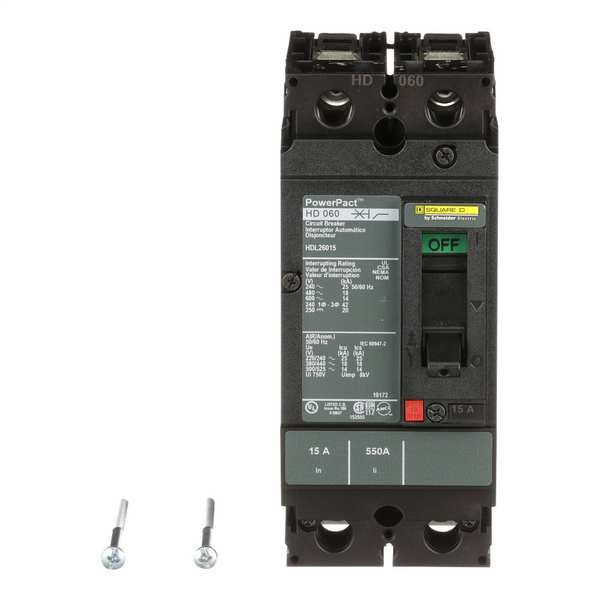

Molded Case Circuit Breaker, 15 A, 600V AC, 2 Pole, Free Standing Mounting Style, HD Series

SKU
Brand Square D
Categories
Description Molded Case Circuit Breaker, 15 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 25kA at 240V AC, For Use With -, Series HD, High Amp Trip Setting 750 A, Low Amp Trip Setting 350 A, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating 250V DC, Terminal Connection Line/Load Lug, Trip Type Thermal Magnetic, Phase Single, Instantaneous Trip Fixed, Phase Connection Not Applicable, Frame Size 150A/HD, Circuit Breaker Mounting Style Free Standing, Height 6.4 in, Width 2.74 in
graingerSKU: 1MAJ5, mscSKU: , zoro_no: G2214265, mongo_id: 65bbe8919a749db82279b578

Web Price

$882.49 / each

Qty

Product Details

AC Voltage Rating 600V AC

Ambient Air Temperature For Operation 28 to 158ÃÂ°F (-2 to 70ÃÂ°C)

Ambient Air Temperature For Storage -58 to 185ÃÂ°F (-50 to 85ÃÂ°C)

Amps 15 A

Application HACR rated Applications; Distribution

AWG Gauge AWG 14 to AWG 3/0 aluminium/copper terminal

Breaking Capacity 25 kA 240 V AC 50/60 Hz UL 489; 18 kA 480 V AC 50/60 Hz; 14 kA 600 V AC 50/60 Hz; 20 kA 250 V DC

Breaking Capacity Code D

Circuit Breaker Actuator Toggle

Circuit Breaker Application HACR rated

Circuit Breaker Mounting Style Free Standing

Circuit Breaker Type Standard

Color Black

Communication Interface Modbus; Ethernet

Continuous Current Rating 0.8

Country of Origin (subject to change) Mexico

DC Voltage Rating 250V DC

Depth 4.36 in

Device Application Distribution

Electrical Connection Lugs, line; Lugs, load

Features Mercury Free; PVC Free

Frame Size 150A/HD

Height 6.4 in

High Amp Trip Setting 750 A

Instantaneous Trip Fixed

Interrupt Rating 25 kA at 220/240V AC, 18 kA at 380/440/415/480V AC, 14 kA at 500/525/600V AC, 20 kA at 250/500V DC

IP Degree Of Protection Front cover IP40 IEC 60529

Local Signalling Switched off (OFF) 1 trip indicator green)

Low Amp Trip Setting 350 A

Max. AIR Rating 25kA at 240V AC

Max. Operating Temp. 104 Degrees F

Max. Wire Size 3 AWG

Min. Wire Size 14 AWG

Mounting Free Standing

Mounting Mode Unit mount lug)

Mounting Support Lug

Network Frequency 50/60 Hz

Number of Poles 2

Number Of Slots 2 auxiliary switch OF plug-in); 1 alarm switch SD plug-in); 1 overcurrent trip switch SDE plug-in); 1 voltage release MN or MX plug-in)

Operating Altitude Less than 6561.68 ft (2000 m) without derating; 5000 m with derating

Package Quantity 1

Phase Single

Phase Connection Not Applicable

Pollution Degree 3 IEC 60947-1

Power Wire Stripping Length 0.63 in (16 mm)

Product Certifications UL; CSA; NOM

Product Name PowerPact H

Product Or Component Type Circuit breaker

Protected Poles Description 2t

Quality Labels CE

Rated Impulse Withstand Voltage 8 kV IEC 60947-2

Rated Insulation Voltage 750 V IEC 60947-2

Rated Operational Voltage 690 V AC 50/60 Hz IEC 60947-3

Rated Service Breaking Capacity 25 kA 220/240 V AC 50/60 Hz IEC 60947-2; 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2; 14 kA 500/525 V AC 50/60 Hz IEC 60947-2; 20 kA 250 V DC IEC 60947-2; 20 kA 500 V DC IEC 60947-2

Series HD

Standards CE, CSA, IEC, UL Listed

Suitability For Isolation Yes IEC 60947-2

Terminal Connection Line/Load Lug

Terminal Identifier AL150HD

Tightening Torque 44.25 lbf.in (5 N.m) 0.00 to 0.01 inÃÂ² (2.5 to 6 mmÃÂ²) (AWG 14 to AWG 10); 123.91 lbf.in (14 N.m) 0.02 to 0.15 inÃÂ² (10 to 95 mmÃÂ²) (AWG 8 to AWG 3/0)

Trip Type Thermal Magnetic

Trip Unit Technology Thermal-magnetic

Utilisation Category Category A

Width 2.74 in
