Home / Molded Case Circuit Breaker, 200 A, 240V AC, 2 Pole, I-Line Mounting Style, QD Series

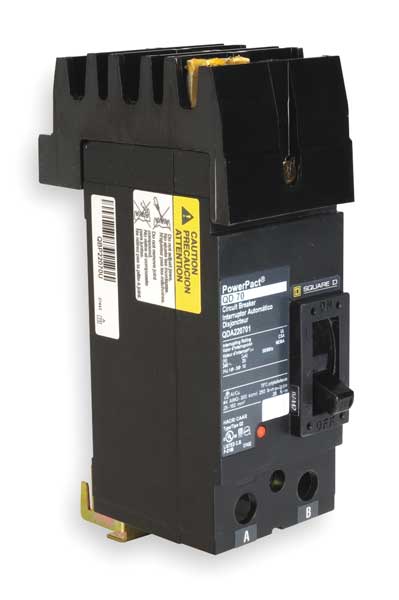

Molded Case Circuit Breaker, 200 A, 240V AC, 2 Pole, I-Line Mounting Style, QD Series

Molded Case Circuit Breaker, 200 A, 240V AC, 2 Pole, I-Line Mounting Style, QD Series

  • Square D
  • Molded Case Circuit Breaker, 200 A Amps, AC Voltage Rating 240V AC, Max. AIR Rating 25kA at 240V AC, For Use With I Line Panelboards, Series QD, High Amp Trip Setting 2,400 A, Low Amp Trip Setting 1,200 A, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Terminal Connection Lug, Trip Type Thermal Magnetic, Phase Single, Instantaneous Trip Fixed, Phase Connection AB, Frame Size 250A/QD, Circuit Breaker Mounting Style I-Line, Height 6.47 in, Width 3 in, Depth 3.93 in

    graingerSKU: 2GPH2, mscSKU: , zoro_no: G1567921, mongo_id: 65bbe8d822d7a989a991bc4e

Web Price
$1,004.99 / each
Qty

Product Details

240V AC
104 to 158°F (40 to 70°C)
200 A
HACR rated Applications; Distribution
25 kA 120/208 V AC 50/60 Hz UL; 25 kA 240 V AC 50/60 Hz UL
D
Toggle
HACR rated
I-Line
Standard
0.8
Operating handle
Mexico
Not Rated
3.93 in
Distribution
I-Line connection, line; Lugs, load
Mercury Free; PVC Free
I Line Panelboards
250A/QD
6.47 in
2,400 A
Fixed
25 kA at 120/208/240V AC
1 trip indicator green)
1,200 A
1200 A
2400 A
25kA at 240V AC
300 MCM
1000 cycles loaded; 5000 cycles no load
4 AWG
Plug In Panelboard
3 in (76.20 mm)
I-Line bracket)
Bracket
50/60 Hz
2
1
Single
AB
0.87 in (22 mm)
UL; CSA; NOM
PowerPact Q
Circuit breaker
8 kV UL
240 V AC 50/60 Hz UL
QD
CE Marked, CSA Certified, IEC, UL Listed
Lug
247.82 lbf.in (28 N.m) 0.04 to 0.23 in² (25 to 150 mm²) (AWG 4 to 300 kcmil)
Thermal Magnetic
Thermal-magnetic
Category A
3 in
