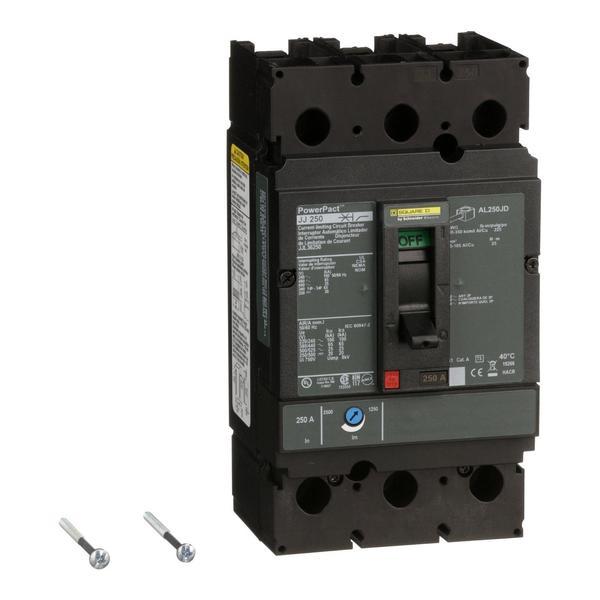

Molded Case Circuit Breaker, 250, 600VAC, 3 Pole, Unit Mount Lug Mounting Style, JJ Series

SKU
Brand Square D
Categories
Description Molded Case Circuit Breaker 600V 250A
graingerSKU: 48R167, mscSKU: , zoro_no: G0567975, mongo_id: 65bbee31526e052139af5d6e

Web Price

$6,261.24 / each

Qty

Product Details

AC Voltage Rating 600VAC

Ambient Air Temperature For Operation 28 to 158ÃÂ°F (-2 to 70ÃÂ°C)

Ambient Air Temperature For Storage -58 to 185ÃÂ°F (-50 to 85ÃÂ°C)

Amps 250

Application HACR rated Applications; Distribution

AWG Gauge AWG 3/0 to 350 kcmil aluminium/copper terminals

Breaking Capacity 100 kA 240 V AC 50/60 Hz UL 489; 65 kA 480 V AC 50/60 Hz UL 489; 25 kA 600 V AC 50/60 Hz UL 489; 20 kA 250 V DC UL 489

Breaking Capacity Code J

Circuit Breaker Actuator toggle

Circuit Breaker Application HACR rated

Circuit Breaker Mounting Style Unit Mount Lug

Communication Interface Modbus; Ethernet

Continuous Current Rating 0.8

Country of Origin (subject to change) Mexico

Depth 86 mm

Device Application Distribution

Electrical Connection Lugs, line; Lugs, load

Features Mercury Free; PVC Free

Frame Size J

Height 191 mm

High Amp Trip Setting 2500 A

Interrupt Rating 65 kA at 220/240/480V AC, 35 kA at 380/440/415V AC, 18 kA at 500/525V AC, 20 kA at 250/500V DC, 100 kA at 240V AC, 25 kA at 600V AC

IP Degree Of Protection Front cover IP40

Line Rated Current 250 A

Local Signalling Switched off (OFF) 1 trip indicator green)

Long Time Pick-Up Adjustment Range 0.25 to 1 x In

Magnetic Hold Current 1250 A

Max. AIR Rating 100 kA

Max. Wire Size 350 kcmil (Cu/Al)

Min. Wire Size 3/0 AWG (Cu/Al)

Mounting Height 4.5 in (114.30 mm)

Mounting Mode Unit mount lug)

Network Frequency 50/60 Hz

Number of Poles 3

Number Of Slots 2 auxiliary switch OF plug-in); 1 alarm switch SD plug-in); 1 overcurrent trip switch SDE plug-in); 1 voltage release MN or MX plug-in)

Operating Altitude Less than 6561.68 ft (2000 m) without derating; 5000 m with derating

Package Quantity 1

Phase Connection ABC

Pollution Degree 3 IEC 60947-1

Power Wire Stripping Length 0.98 in (25 mm)

Product Certifications UL; CSA; NOM

Product Name PowerPact J

Product Or Component Type Circuit breaker

Protection Type Overload protection; Short-circuit protection

Quality Labels CE

Rated Impulse Withstand Voltage 8 kV IEC 60947-2

Rated Insulation Voltage 750 V IEC 60947-2

Rated Operational Voltage 600 V AC 50/60 Hz IEC 60947-3

Rated Service Breaking Capacity 65 kA 220/240 V AC 50/60 Hz IEC 60947-2; 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2; 18 kA 500/525 V AC 50/60 Hz IEC 60947-2; 20 kA 250 V DC IEC 60947-2; 20 kA 500 V DC IEC 60947-2

Series JJ

Standards UL, CSA, NEMA, NOM, CE

Suitability For Isolation Yes IEC 60947-2

Terminal Connection Lug

Terminal Identifier AL250JD

Tightening Torque 221.27 lbf.in (25 N.m) 0.15 to 0.29 inÃÂ² (95 to 185 mmÃÂ²) (AWG 3/0 to 350 kcmil)

Trip Type Thermal Magnetic

Trip Unit Technology Thermal-magnetic

Utilisation Category Category A

Width 104 mm
