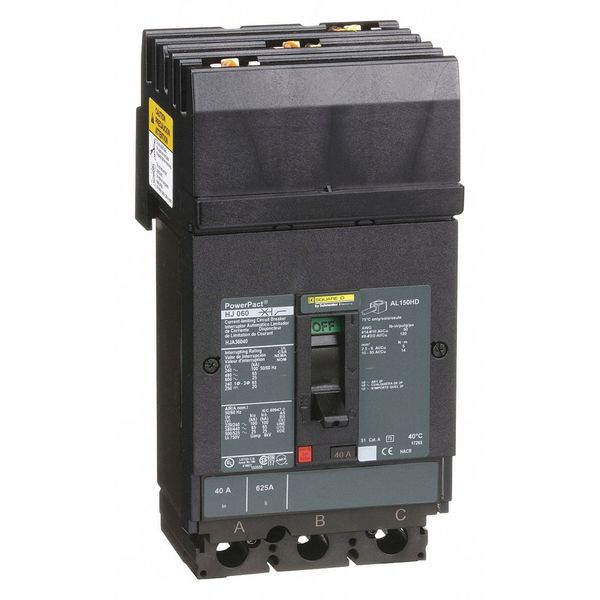

Molded Case Circuit Breaker, 40, 600VAC, 3 Pole, I-Line Bracket Mounting Style

SKU
Brand Square D
Categories
Description Molded Case Circuit Breaker 600V 40A
graingerSKU: 48R126, mscSKU: , zoro_no: G0567878, mongo_id: 65bbe6393aaddbd5a90158c5

Web Price

$1,759.99 / each

Qty

Product Details

AC Voltage Rating 600VAC

Ambient Air Temperature For Operation 28 to 158ÃÂ°F (-2 to 70ÃÂ°C)

Ambient Air Temperature For Storage -58 to 185ÃÂ°F (-50 to 85ÃÂ°C)

Amps 40

Application HACR rated Applications; Distribution

AWG Gauge AWG 14 to AWG 3/0 aluminium/copper terminal

Breaking Capacity 100 kA 240 V AC 50/60 Hz UL 489; 65 kA 480 V AC 50/60 Hz UL 489; 25 kA 600 V AC 50/60 Hz UL 489; 20 kA 250 V DC UL 489

Breaking Capacity Code J

Circuit Breaker Actuator toggle

Circuit Breaker Application HACR rated

Circuit Breaker Mounting Style I-Line Bracket

Color Black

Communication Interface Modbus; Ethernet

Continuous Current Rating 0.8

Country of Origin (subject to change) Mexico

Depth 86 mm

Device Application Distribution

Electrical Connection I-Line connection, line; Lugs, load

Features Mercury Free; PVC Free

Frame Size H

Height 163 mm

High Amp Trip Setting 850 A

Interrupt Rating 100 kA at 220/240V AC, 65 kA at 380/440/415/480V AC, 25 kA at 500/525/600V AC, 20 kA at 250/500V DC

IP Degree Of Protection Front cover IP40 IEC 60529

Line Rated Current 40 A

Local Signalling Switched off (OFF) 1 trip indicator green)

Magnetic Hold Current 400 A

Max. AIR Rating 100 kA

Max. Wire Size 3/0 AWG (Cu/Al)

Min. Wire Size 14 AWG (Cu/Al)

Mounting Height 4.5 in (114.30 mm)

Mounting Mode I-Line bracket)

Mounting Support Bracket

Network Frequency 50/60 Hz

Number of Poles 3

Number Of Slots 2 auxiliary switch OF plug-in); 1 alarm switch SD plug-in); 1 overcurrent trip switch SDE plug-in); 1 voltage release MN or MX plug-in)

Operating Altitude Less than 6561.68 ft (2000 m) without derating; 5000 m with derating

Package Quantity 1

Phase Connection ABC

Pollution Degree 3 IEC 60947-1

Power Wire Stripping Length 0.63 in (16 mm)

Product Certifications UL; CSA; NOM

Product Name PowerPact H

Product Or Component Type Circuit breaker

Protected Poles Description 3t

Quality Labels CE

Rated Impulse Withstand Voltage 8 kV IEC 60947-2

Rated Insulation Voltage 750 V IEC 60947-2

Rated Operational Voltage 690 V AC 50/60 Hz IEC 60947-3

Rated Service Breaking Capacity 100 kA 220/240 V AC 50/60 Hz IEC 60947-2; 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2; 25 kA 500/525 V AC 50/60 Hz IEC 60947-2; 20 kA 250 V DC IEC 60947-2; 20 kA 500 V DC IEC 60947-2

Standards UL, CSA, NEMA, NOM, CE

Suitability For Isolation Yes IEC 60947-2

Terminal Connection I-Line, Lug

Terminal Identifier AL150HD

Tightening Torque 44.25 lbf.in (5 N.m) 0.00 to 0.01 inÃÂ² (2.5 to 6 mmÃÂ²) (AWG 14 to AWG 10); 123.91 lbf.in (14 N.m) 0.02 to 0.15 inÃÂ² (10 to 95 mmÃÂ²) (AWG 8 to AWG 3/0)

Trip Type Thermal Magnetic

Trip Unit Technology Thermal-magnetic

Utilisation Category Category A

Width 104 mm
