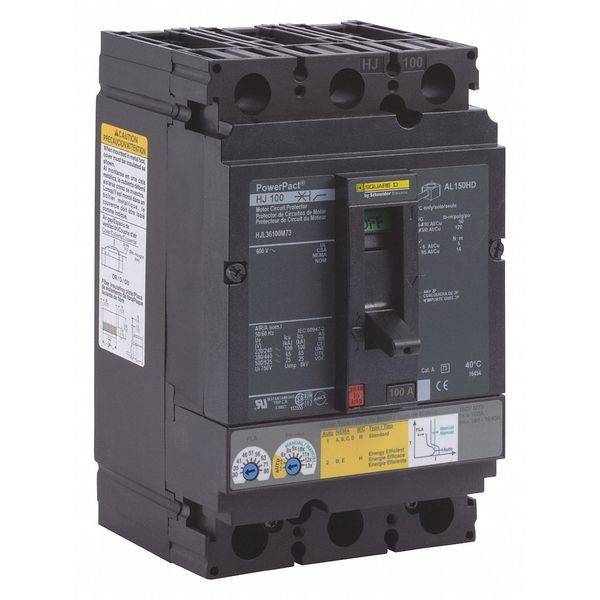

Motor Circuit Protector 600V 100A

SKU
Brand Square D
Categories
Description Motor Circuit Protector 600V 100A
graingerSKU: 48R187, mscSKU: , zoro_no: G0478235, mongo_id: 65bbea2f22d7a989a999d03e

Web Price

$1,873.74 / each

Qty

Product Details

Ambient Air Temperature For Operation 28 to 158ÃÂ°F (-2 to 70ÃÂ°C)

Ambient Air Temperature For Storage -58 to 185ÃÂ°F (-50 to 85ÃÂ°C)

Amps 100 A

AWG Gauge AWG 14 to AWG 3/0 aluminium/copper terminal

Breaking Capacity 100 kA 240 V AC 50/60 Hz UL 489; 65 kA 480 V AC 50/60 Hz UL 489; 25 kA 600 V AC 50/60 Hz UL 489; 20 kA 250 V DC UL 489

Breaking Capacity Code J

Code J

Color Black

Communication Interface Modbus; Ethernet

Continuous Current Rating 0.8

Control Type Toggle

Conventional Free Air Thermal Current 30 to 80 A

Country of Origin (subject to change) Mexico

Depth 86 mm

Device Application Distribution

Electrical Connection Lugs, line; Lugs, load

Features Mercury Free, PVC Free

For Use With PowerPact

Height 163 mm

Hz_ 50/60 Hz

IP Degree Of Protection Front cover IP40 IEC 60529

Magnetic Tripping Current 180 to 1040 A

Mounting Lug

Mounting Mode Unit mount lug)

Number Of Poles 3P

Number Of Slots 2 auxiliary switch OF plug-in); 1 alarm switch SD plug-in); 1 overcurrent trip switch SDE plug-in); 1 voltage release MN or MX plug-in)

Operating Altitude Less than 6561.68 ft (2000 m) without derating; 5000 m with derating

Package Quantity 1

Pollution Degree 3 IEC 60947-1

Power Wire Stripping Length 0.63 in (16 mm)

Product Certifications UL; CSA; NOM

Product Name PowerPact H

Product Or Component Type Motor Circuit Protector

Protected Poles Description 3t

Quality Labels CE

Rated Impulse Withstand Voltage 8 kV IEC 60947-2

Rated Insulation Voltage 750 V IEC 60947-2

Rated Operational Voltage 690 V AC 50/60 Hz IEC 60947-3

Rated Service Breaking Capacity 65 kA 220/240 V AC 50/60 Hz IEC 60947-2; 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2; 18 kA 500/525 V AC 50/60 Hz IEC 60947-2; 20 kA 250 V DC IEC 60947-2; 20 kA 500 V DC IEC 60947-2

Standards UL, CSA, NOM-003-SCFI-2000, IEC 60947-2, IEC 60947-1, CE

Suitability For Isolation Yes IEC 60947-2

Terminal Identifier AL150HD

Tightening Torque 44.25 lbf.in (5 N.m) 0.00 to 0.01 inÃÂ² (2.5 to 6 mmÃÂ²) (AWG 14 to AWG 10); 123.91 lbf.in (14 N.m) 0.02 to 0.15 inÃÂ² (10 to 95 mmÃÂ²) (AWG 8 to AWG 3/0)

Trip Unit Technology Thermal-magnetic

Utilisation Category Category A

Voltage 690V AC

Width 104 mm
