Home / NEMA Control Relay, 8NO, 24VDC, 10A

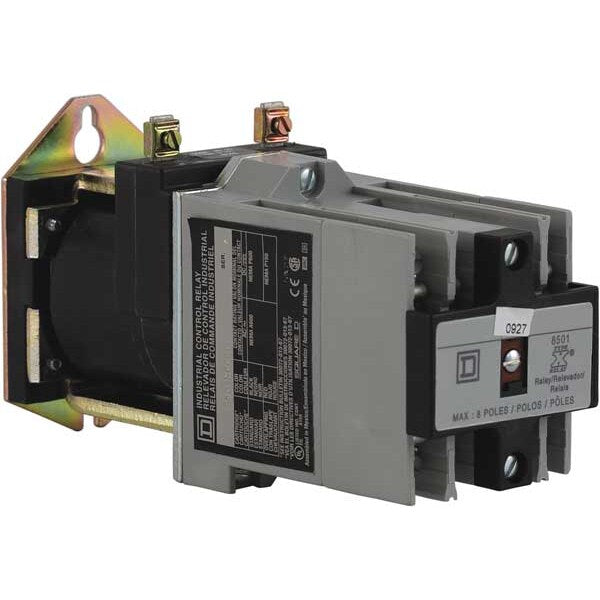

NEMA Control Relay, 8NO, 24VDC, 10A

NEMA Control Relay, 8NO, 24VDC, 10A

  • Square D
  • NEMA Control Relay, Current Rating 10 A, Contact Form 8NO, Contact Rating (DC) 0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V, Coil Voltage 24V DC, Contact Rating (AC) 10 A @ 600V, Relay Style NEMA, Electrical Connection Screw Clamp, Mounting Style Surface, Power Consumption 18 W, Compatible with Series 8501 Type X Latching Control Relays, Maximum Operating Temperature 160 Degrees F, Body Depth 6.37 in, Body Height 3.56 in, Body Width 2.23 in

    graingerSKU: 2VLC1, mscSKU: , zoro_no: G1982285, mongo_id: 65bbe85f9a749db82278a84b

Web Price
$551.24 / each
Qty

Product Details

10A @ 120/240/480/600V
C
-40-160 °F
AWG 18 to AWG 12 copper
6.37 in
6.37 in
3.56 in
3.5 in
2.23 in
2.23 in
24V DC
24V DC
8501 Type X Latching Control Relays
10A
8NO
(8) SPST-NO
Silver Cadmium Oxide
10 A @ 600V
0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V
8 NO 8 standard contact cartridges
operational 0.8 to 1.1 Uc DC
Mexico
10 A
5A @ 125/250V
6.37 in
Screw Clamp
Contact Conversion without Removing Terminal Screws or Wires, Plug-in Contact Cartridges for Easy Contact Conversion and Replacement, Replaceable Coil, Self-Lifting Pressure Wire Connectors, Straight-Through Wiring
3.56 in
18-18 W
Not Applicable
24V DC
18 W
NEMA Style Control Relay
18 AWG
10 A AC || 5 A DC
160 Degrees F
-40 Degrees F
Panel
Surface
Surface
panel
14
14
37 ms - pick-up || 21 ms - drop-out
3.56 in
3.5 in
1
18 W
18.0 W
CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR
relay
6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508
NEMA
control
21 msec (Drop-Out Time), 37 msec (Pick-Up Time)
CSA Certified, RoHS Compliant, UL Listed
control circuit 1.02-1.36 N.m screw terminals
3.4 lbs.
2.23 in
60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508
24 V DC
