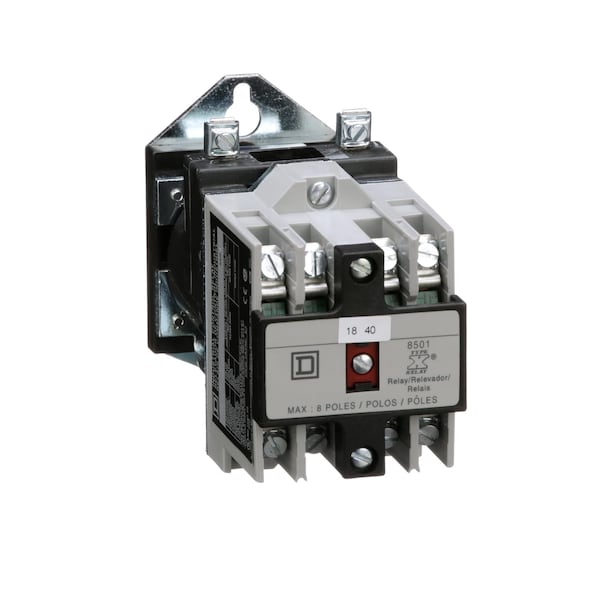

NEMA Control Relay, machine tool, 4 NO,

SKU
Brand Square D
Categories
Description NEMA Control Relay,machine tool,4 NO,
graingerSKU: , mscSKU: , zoro_no: G5529344, mongo_id: 65bbe8b722d7a989a990f317

Web Price

$574.99 / each

Qty

Product Details

Ambient Air Temperature For Operation -40-160ÃÂ°F

Awg Gauge AWG 18...AWG 12 copper

Contacts Type And Composition 4 NO 4 standard contact cartridges

Control Circuit Voltage Limits operational 0.8...1.1 Uc DC

Country of Origin (subject to change) Mexico

Depth 5.17 in

Electrical Connection screw clamp terminals

Height 3.56 in

Hold-In Power Consumption In W 18-18 W

Inrush Power In W 18 W

Line Rated Current 10 A AC || 5 A DC

Mounting Support panel

Operating Time 37 ms - pick-up || 21 ms - drop-out

Package Quantity 1

Product Certifications CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR

Product Or Component Type relay

Rated Breaking Capacity 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508

Relay Type control

Tightening Torque control circuit 1.02-1.36 N.m screw terminals

Width 2.23 in

[Icm] Rated Short-Circuit Making Capacity 60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508

[Uc] Control Circuit Voltage 48 V DC
