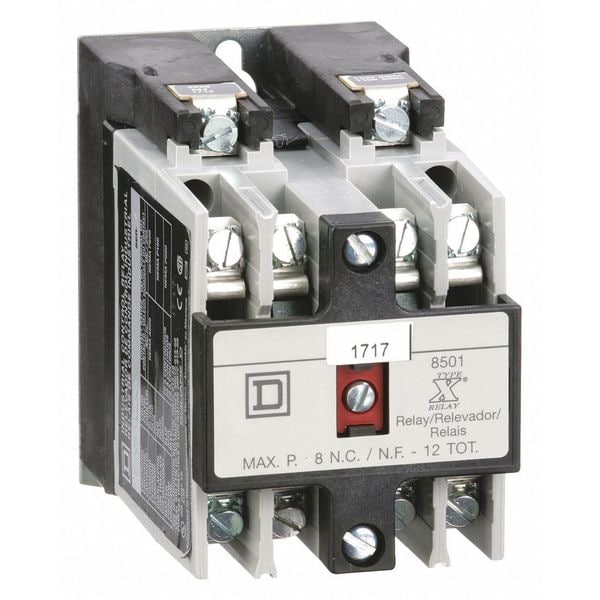

NEMA Control Relay2NO120VAC10A

SKU
Brand Square D
Categories
Description NEMA Control Relay, Current Rating 10 A, Contact Form 2NO, Contact Rating (DC) 0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V, Coil Voltage 110/120V AC, Contact Rating (AC) 10 A @ 600V, Relay Style NEMA, Electrical Connection Screw Clamp, Mounting Style Surface, Power Consumption 23 VA, Compatible with Series 8501 Type X Latching Control Relays, Maximum Operating Temperature 160 Degrees F, Frequency 50/60 Hz, Body Depth 3.95 in, Body Height 3.5 in, Body Width 2.23 in
graingerSKU: 4B522, mscSKU: , zoro_no: G0508033, mongo_id: 65bbe85f22d7a989a98ee781

Web Price

$216.24 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 120/240/480/600V

Accessory Group A

Ambient Air Temperature For Operation -40-160 ÃÂ°F

Awg Gauge AWG 18 to AWG 12 copper

Body Depth 3.95 in

Body Depth - Relay 3.95 in

Body Height 3.5 in

Body Height - Relay 3.5 in

Body Width 2.23 in

Body Width - Relay 2.23 in

Certifications CSA LR60905 class 3211 03; UL listed file E78403 CCN NKCR

Coil Voltage 110/120V AC

Coil Volts 120V AC

Compatible with Series 8501 Type X Latching Control Relays

Contact Amp Rating (Resistive) 10A

Contact Form 2NO

Contact Form - Relay (2) SPST-NO

Contact Material Silver Cadmium Oxide

Contact Rating (AC) 10 A @ 600V

Contact Rating (DC) 0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V

Contacts Type And Composition 2 NO 2 standard contact cartridges

Control Circuit Voltage Limits operational 0.85 to 1.1 Uc AC 50/60 Hz

Country of Origin (subject to change) Mexico

Current Rating 10 A

DC Contact Rating - Relay 5A @ 125/250V

Depth 3.95 in

Electrical Connection Screw Clamp

Features Contact Conversion without Removing Terminal Screws or Wires, Plug-in Contact Cartridges for Easy Contact Conversion and Replacement, Replaceable Coil, Self-Lifting Pressure Wire Connectors, Straight-Through Wiring

Frequency 50/60 Hz

Height 3.5 in

Hold-In Power Consumption In Va 23-23 VA 60 Hz || 25-25 VA 50 Hz

Hz - Electrical 50 Hz, 60 Hz

Hz_ 50/60

Input Voltage 110/120V AC

Inrush Power In Va 148-148 VA 60 Hz || 143-143 VA 50 Hz

Item - Relay NEMA Style Control Relay

Lead Size 18 AWG

Line Rated Current 10 A AC || 5 A DC

Maximum Operating Temperature 160 Degrees F

Minimum Operating Temperature -40 Degrees F

Mounting Panel

Mounting - Relay Surface

Mounting Style Surface

Mounting Support panel

Number of Pins 6

Number of Pins - Relay 6

Operating Temperature -40 to 160ÃÂ°F (-40 to 71ÃÂ°C)

Operating Time 15 ms - pick-up || 16 ms - drop-out

Overall Height 3.5 in

Overall Height - Relay 3.5 in

Package Quantity 1

Power Consumption 23 VA

Power Consumption - Relay 23.0 VA

Product Certifications CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR

Product Or Component Type relay

Rated Breaking Capacity 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508

Rated Short Circuit Making Capacity 60 A 120 V AC inductive control circuit UL 508; 30 A 240 V AC inductive control circuit UL 508; 15 A 480 V AC inductive control circuit UL 508; 12 A 600 V AC inductive control circuit UL 508; 10 A Less than or Equal to 600 V AC resistive control circuit UL 508; 1.1 A 125 V DC inductive control circuit UL 508; 0.55 A 250 V DC inductive control circuit UL 508; 0.2 A 301 to 600 V DC inductive control circuit UL 508; 4 A 125 V DC inductive control circuit UL 508; 0.8 A 250 V DC resistive control circuit UL 508

Relay Style NEMA

Relay Type control

Response Time 15 msec (Pick-Up Time), 16 msec (Drop-Out Time)

Standards CSA Certified, RoHS Compliant, UL Listed

Tightening Torque control circuit 1.02-1.36 N.m screw terminals

Width 2.23 in

[Icm] Rated Short-Circuit Making Capacity 60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508

[Uc] Control Circuit Voltage 110 V AC 50 Hz || 120 V AC 60 Hz
