Home / NF Panelboard, interior, main lug, 250 A

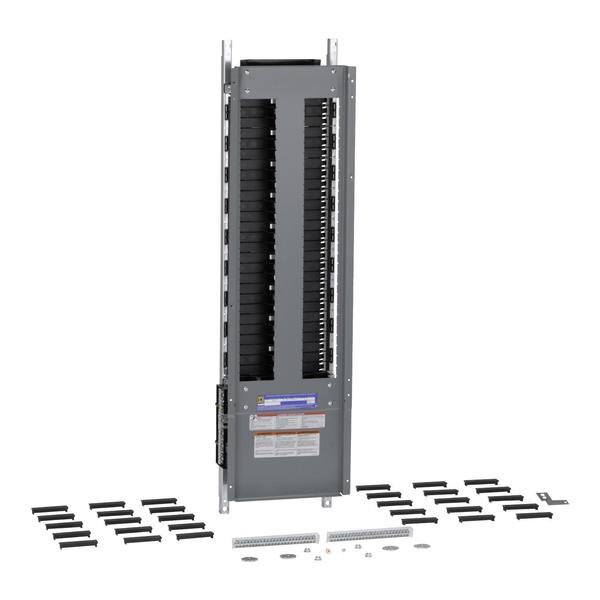

NF Panelboard, interior, main lug, 250 A

SKU
Brand Square D
Categories
Description NF Panelboard,interior,main lug,250 A

Web Price

$3,172.05 / each

Qty

Product Details

Circuit Breaker Type EDB/EDG/EDJ

Connections - Terminals lug line AWG 6...350 kcmil aluminium || lug neutral AWG 6...350 kcmil aluminium

Country of Origin (subject to change) United States

Enclosure Nominal Depth 5.75 in NEMA 1 || 6.5 in NEMA 3R/5/12

Enclosure Nominal Height 56 in

Enclosure Nominal Width 20 in

Height 45 in

Line Rated Current 250 A

Load Center Type main lugs

Material copper

Number Of Spaces 54

Package Quantity 1

Phase 3 phase

Standards CSA C22.2 || UL 67

Tightening Torque 4.52-5.65 N.m 13.30-67.43 mmÃÂ² (AWG 6...AWG 2/0) || 11.3-11.3 N.m 13.30-67.43 mmÃÂ² (AWG 6...AWG 2/0) || 31.07-31.07 N.m 13.30-177.3 mmÃÂ² (AWG 6...350 kcmil) || 31.07-31.07 N.m 13.30-126.7 mmÃÂ² (AWG 6...250 kcmil) || 31.07-31.07 N.m 107.2-152 mmÃÂ² (AWG 4...300 kcmil)

Width 10.44 in

Wiring Configuration 4-wire

[Iu] Rated Interrupted Current 65 kA

[Ue] Rated Operational Voltage 600Y/347 V AC
