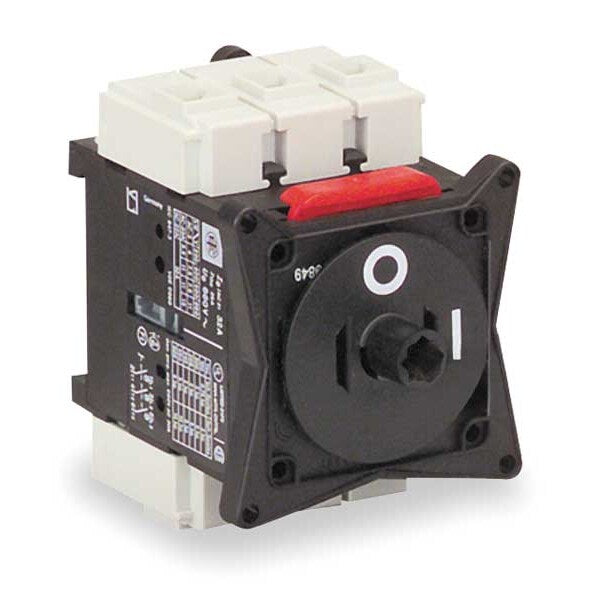

Nonfusible Load Break Switch, 40 A, 600V AC, 3 pole

SKU
Brand Square D
Categories
Description Load Break Switch, Contact Form 3PST, Current Rating 40 A, Depth 2 1/4 in, Duty Standard, Enclosure Type Enclosed, Features Opening for 6 mm (0.24 in) Shaft Width, For Fuse Class Not Applicable, Height 3 in, Horsepower @ 240V AC 5 hp, Horsepower @ 480V AC 10 hp, Horsepower @ 600V AC 15 hp, Housing Material Non-Metallic, IP Rating IP20, Mounting Style DIN Rail, Neutral Assembly Included No, Number of Poles 3, Number of Wires 3, Phase Three, Protection Method Non-Fusible
graingerSKU: 2FL53, mscSKU: , zoro_no: G0900207, mongo_id: 65bbe6c73aaddbd5a9052084

Web Price

$177.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-50ÃÂ°C

Amps 40 A

Breaking Capacity 320 A 400 V AC-21A) || 320 A 400 V AC-22A) || 320 A 400 V AC-23A)

Connections - Terminals power circuit screw clamp terminals 10-10 mmÃÂ² solid || power circuit screw clamp terminals 6-6 mmÃÂ² flexible - with cable end

Contact Form 3PST

Contacts Type And Composition 3 NO

Country of Origin (subject to change) Czechia

Current Rating 40 A

Depth 2 1/4 in

Device Short Name V

Duty General

Electrical Durability 100000 cycles AC-21 || 30000 cycles DC-1...5

Enclosure Type Enclosed

Features Opening for 6 mm (0.24 in) Shaft Width

Fire Resistance 960ÃÂ°C IEC 60695-2-1

For Fuse Class Not Applicable

Fusible / Nonfusible Nonfusible

Height 3 in

Horsepower @ 240V AC 5 hp

Horsepower @ 480V AC 10 hp

Horsepower @ 600V AC 15 hp

Housing Material Non-Metallic

HP_ 10 hp @ 480V AC, 15 hp @ 600V AC, 5 hp @ 240V AC

Iec Rated Operational Power in W 11 kW 400 to 415 V AC-3); 11 kW 690 V AC-3); 15 kW 500 V AC-3); 15 kW 690 V AC-23A); 18.5 kW 500 V AC-23A); 5.5 kW 230 to 240 V AC-3); 7.5 kW 230 to 240 V AC-23A); 15 kW 400 to 415 V AC-23A)

IEC Terminal Connection Power circuit screw clamp terminals 0.02 inÃÂ² (10 mmÃÂ²) solid; Power circuit screw clamp terminals 0.01 inÃÂ² (6 mmÃÂ²) flexible - with cable end

Intermittent Duty Class 30

Ip Degree Of Protection IP20 conforming to IEC 60529

IP Rating IP20

Making Capacity 400 A 400 V AC-21A || 400 A 400 V AC-22A || 400 A 400 V AC-23A

Material Non-Metallic

Mechanical Durability 100000 cycles

Mechanical Robustness vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27

Mounting Style DIN Rail

Mounting Support plate || symmetrical rail

Network Frequency 50/60 Hz

Network Type AC || DC

Neutral Assembly Included No

Number of Poles 3

Number of Wires 3

Package Quantity 1

Performance Level high performance

Phase Three

Poles Description 3P

Product Certifications UL || CSA || GL || UKCA || CCC

Product Name TeSys VARIO

Product Or Component Type switch body

Protection Method Nonfusible

Protective Treatment TC

Range TeSys

Rated Conditional Short Circuit Current 10 kA 400 V 50 A aM; 10 kA 400 V 50 A gG

Rated Conditional Short-Circuit Current 10 kA 400 V 50 A aM || 10 kA 400 V 50 A gG

Rated Operational Power In W 11 kW 400...415 V AC-3) || 11 kW 690 V AC-3) || 15 kW 500 V AC-3) || 15 kW 690 V AC-23A) || 18.5 kW 500 V AC-23A) || 5.5 kW 230...240 V AC-3) || 7.5 kW 230...240 V AC-23A) || 15 kW 400...415 V AC-23A)

Resistance Properties Fire-Resistant

Shaft Size 0.24 in (6 mm)

Standard Conduit Size 0.75 in

Standards CCC, CSA Certified, EAC, IEC, Marine, UL Listed

Suitability For Isolation yes

Tightening Torque power circuit 2.1-2.1 N.m screw clamp terminals

Voltage 600V AC

Voltage Rating 690V AC

Width 2 1/4 in

[Icm] Rated Short-Circuit Making Capacity 1 kA 400 V at Ipeak

[Icw] Rated Short-Time Withstand Current 480 A 400 V 1 s

[Ie] Rated Operational Current 29 A AC-23 Ue: 400 V
