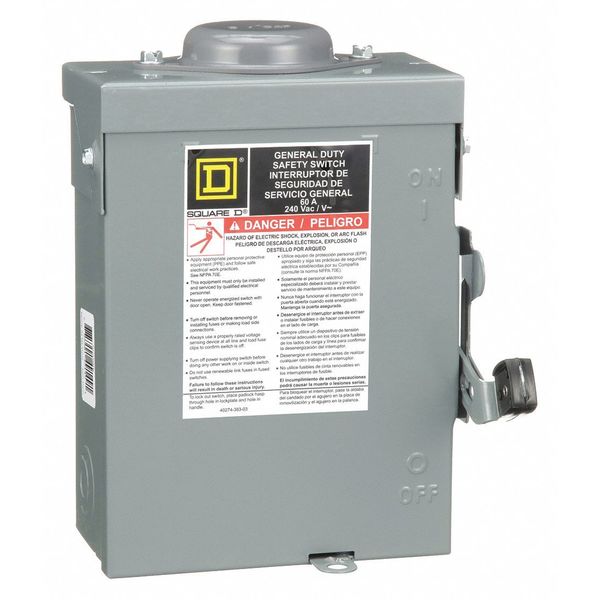

Nonfusible Safety Switch, General Duty, 240V AC, 2PST, 60 A, NEMA 3R

SKU
Brand Square D
Categories
Description Safety Switch, Contact Form DPST, Current Rating 60 A, Depth 3 3/4 in, Duty Standard, Enclosure Type Enclosed, Environment Indoor/Outdoor, For Fuse Class Not Applicable, Height 9 3/4 in, Horsepower @ 240V AC 10 hp, Housing Material Steel, IP Rating IP14, Mounting Style Surface Mount, NEMA Enclosure Rating 3R, Neutral Assembly Included No
graingerSKU: 2CL85, mscSKU: , zoro_no: G2732703, mongo_id: 65bbe97422d7a989a9958633

Web Price

$356.75 / each

Qty

Product Details

Amps AC 60 A

Certifications UL listed file E2875

Contact Form 2PST

Country of Origin (subject to change) Mexico

Current Rating 60 A

Current Type AC

Depth 3.8 in

Device Application Residential

Disconnect Type Non-fusible disconnect switch

Duty General

Duty Rating General duty

Electrical Connection Lugs

Enclosure Depth Less than 6 inches

Enclosure Height 0 to 9 3/4 inches

Enclosure Material Galvanized Steel

Enclosure Rating NEMA NEMA 3R

Enclosure Type Enclosed

Enclosure Width 0 to 9 3/4 inches

Environment Indoor/Outdoor

Factory Installed Neutral None

Features Mercury Free, PVC Free, Toxic Heavy Metal Free

For Fuse Class Not Applicable

Fusible / Nonfusible Nonfusible

Gauge/Conductor 12 to 3 AWG (Aluminum), 14 to 3 AWG (Copper)

Height 9.6 in

Horsepower @ 240V AC 10 hp

Housing Material Steel

HP_ 10 hp @ 240V AC

IP Rating 14

Material of Construction Galvannealed Steel

Metallic / Non-Metallic Metallic

Motor Power HP 10 hp at 240 V AC 60 Hz for 1 phase motors

Mounting Surface

Mounting Style Surface Mount

NEMA Enclosure Rating 3R

NEMA Enclosure Type 3R

Neutral Assembly Included No

Number of Poles 2

Number of Wires 2

Package Quantity 1

Phase 1

Protection Method Nonfusible

Standards UL listed

Tightening Torque 35 lbf.in (3.95 N.m) 0.00 to 0.01 inÃÂ² (2.08 to 5.26 mmÃÂ²) (AWG 14 to AWG 10); 35 lbf.in (3.95 N.m) (AWG 14 to AWG 10); 45 lbf.in (5.08 N.m) 0.01 inÃÂ² (8.37 mmÃÂ²) (AWG 8); 45 lbf.in (5.08 N.m) 0.02 to 0.03 inÃÂ² (12.3 to 21.12 mmÃÂ²) (AWG 6 to AWG 4); 50 lbf.in (5.65 N.m) 0.04 inÃÂ² (26.67 mmÃÂ²) (AWG 3)

UL 98 Certification Yes

Voltage 240V AC

Voltage Rating 240 V AC

Weight 7.7 kg

Width 7.7 in

Wire Size AWG 12 to AWG 3 aluminium; AWG 14 to AWG 3 copper

Wiring Configuration 2 wires
