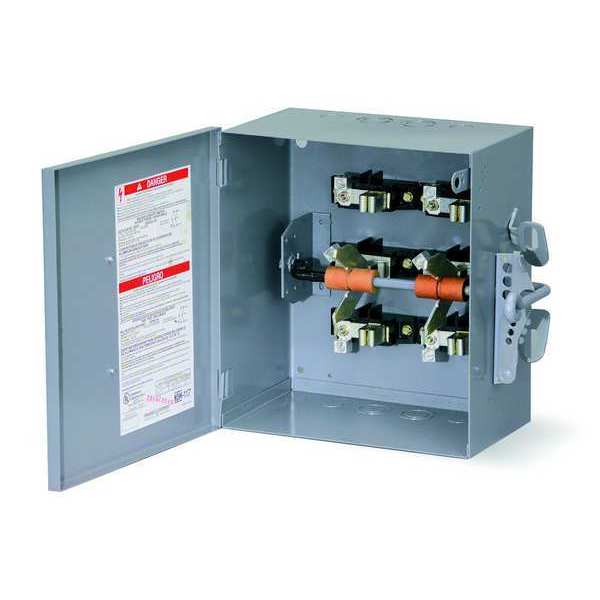

Nonfusible Safety Switch, Heavy Duty, 240V AC, 2PDT, 30 A, NEMA 1

SKU
Brand Square D
Categories
Description Safety Switch, Contact Form DPDT, Current Rating 30 A, Depth 4 3/4 in, Duty Standard, Environment Indoor, For Fuse Class Not Applicable, Height 10 in, Housing Material Steel, IP Rating IP20, Mounting Style Surface Mount, NEMA Enclosure Rating 1, Neutral Assembly Included No
graingerSKU: 1H299, mscSKU: , zoro_no: G2026893, mongo_id: 65bbe5b43aaddbd5a9fdf24c

Web Price

$641.24 / each

Qty

Product Details

Amps AC 30 A

Contact Form 2PDT

Country of Origin (subject to change) United States

Current Rating 30 A

Current Type AC

Depth 4.8 in

Disconnect Type Non-fusible disconnect

Duty Heavy

Duty Rating General duty

Enclosure Depth Less than 6 inches

Enclosure Height 10 to 19 3/4 inches

Enclosure Material Galvanized Steel

Enclosure Rating NEMA 1

Enclosure Width 0 to 9 3/4 inches

Environment Indoor

Factory Installed Neutral None

Features Mercury Free, Toxic Heavy Metal Free

For Fuse Class Not Applicable

Fuse Type Class H or K

Fusible / Nonfusible Nonfusible

Gauge/Conductor 12 to 2 AWG (Aluminum), 14 to 2 AWG (Copper)

Height 10 in

Housing Material Steel

IP Rating 20

Material of Construction Steel

Metallic / Non-Metallic Metallic

Mounting Surface

Mounting Style Surface Mount

NEMA Enclosure Rating 1

NEMA Enclosure Type 1

Neutral Assembly Included No

Number of Poles 2

Number of Wires 2

Package Quantity 1

Phase 1

Protection Method Nonfusible

Short-Circuit Current 10 kA H or K

Standards UL listed

Tightening Torque 35 lbf.in (3.95 N.m) 0.00 to 0.01 inÃÂ² (2.08 to 5.26 mmÃÂ²) (AWG 14 to AWG 10); 40 lbf.in (4.52 N.m) 0.01 inÃÂ² (8.37 mmÃÂ²) (AWG 8); 45 lbf.in (5.08 N.m) 0.02 to 0.03 inÃÂ² (13.3 to 21.15 mmÃÂ²) (AWG 6 to AWG 4); 50 lbf.in (5.65 N.m) 0.04 to 0.05 inÃÂ² (26.67 to 33.62 mmÃÂ²) (AWG 3 to AWG 2)

UL 98 Certification Yes

Voltage 240V AC

Voltage Rating 240 V AC

Weight 3.44 kg

Width 8 in

Wire Size AWG 12 to AWG 2 aluminium; AWG 14 to AWG 2 copper
