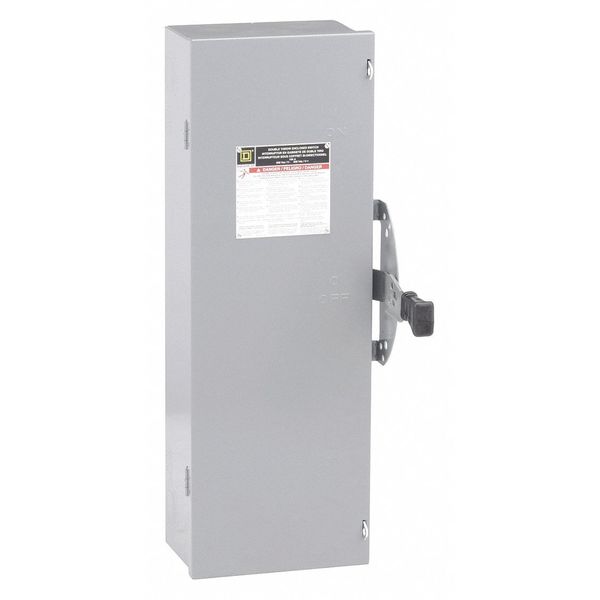

Nonfusible Safety Switch, Heavy Duty, 600V AC, 3PDT, 100 A, NEMA 1

SKU
Brand Square D
Categories
Description Safety Switch, Contact Form 3PDT, Current Rating 100 A, Depth 7 in, Duty Heavy Duty, Environment Indoor, For Fuse Class Not Applicable, Height 30 in, Horsepower @ 240V AC 40 hp, Horsepower @ 480V AC 75 hp, Horsepower @ 600V AC 100 hp, Housing Material Steel, IP Rating IP20, Mounting Style Surface Mount, NEMA Enclosure Rating 1, Neutral Assembly Included No
graingerSKU: 1MN37, mscSKU: , zoro_no: G2446552, mongo_id: 65bbe94f22d7a989a9949fe0

Web Price

$2,289.99 / each

Qty

Product Details

Amps AC 100 A

Contact Form 3PDT

Country of Origin (subject to change) United States

Current Rating 100 A

Current Type AC

Depth 7.0 in

Disconnect Type Non-fusible disconnect switch

Duty Heavy

Duty Rating Heavy duty

Enclosure Depth 6 - 12 inches

Enclosure Height 30 inches and larger

Enclosure Material Galvanized Steel

Enclosure Rating NEMA 1

Enclosure Width 10 to 19 3/4 inches

Environment Indoor

Factory Installed Neutral None

Features Mercury Free, Toxic Heavy Metal Free

For Fuse Class Not Applicable

Fuse Type Class H, K, R, J or T

Fusible / Nonfusible Nonfusible

Gauge/Conductor 12 to 1/0 AWG (Aluminum), 14 to 1/0 AWG (Copper)

Height 30.0 in

Horsepower @ 240V AC 40 hp

Horsepower @ 480V AC 75 hp

Horsepower @ 600V AC 100 hp

Housing Material Steel

HP_ 75 hp @ 600V AC

IP Rating 20

Material of Construction Steel

Metallic / Non-Metallic Metallic

Motor Power HP 20 hp at 240 V AC 50-60 Hz for 1 phase motors; 40 hp at 240 V AC 50-60 Hz for 3 phase motors; 40 hp at 480 V AC 50-60 Hz for 1 phase motors; 75 hp at 480 V AC 50-60 Hz for 3 phase motors; 40 hp at 600 V AC 50-60 Hz for 1 phase motors; 100 hp at 600 V AC 50-60 Hz for 3 phase motors; 20 hp at 250 V DC; 50 hp at 600 V DC

Mounting Surface

Mounting Style Surface Mount

NEMA Enclosure Rating 1

NEMA Enclosure Type 1

Neutral Assembly Included No

Number of Poles 3

Number of Wires 3

Package Quantity 1

Phase 3

Protection Method Nonfusible

Short-Circuit Current 10 kA H or K; 200 kA R, J or T

Standards UL listed

Tightening Torque 35 lbf.in (3.95 N.m) 0.00 to 0.01 inÃÂ² (2.06 to 5.26 mmÃÂ²) (AWG 14 to AWG 1/0); 40 lbf.in (4.52 N.m) 0.01 inÃÂ² (8.37 mmÃÂ²) (AWG 8); 45 lbf.in (5.08 N.m) 0.02 to 0.08 inÃÂ² (13.30 to 53.48 mmÃÂ²) (AWG 8); 50 lbf.in (5.65 N.m) 0.04 to 0.08 inÃÂ² (26.67 to 53.48 mmÃÂ²) (AWG 6 to AWG 4)

UL 98 Certification Yes

Voltage 600V AC

Voltage Rating 600 V AC; 600 V DC

Weight 17.69 kg

Width 12.0 in

Wire Size AWG 12 to AWG 1/0 aluminium; AWG 14 to AWG 1/0 copper
