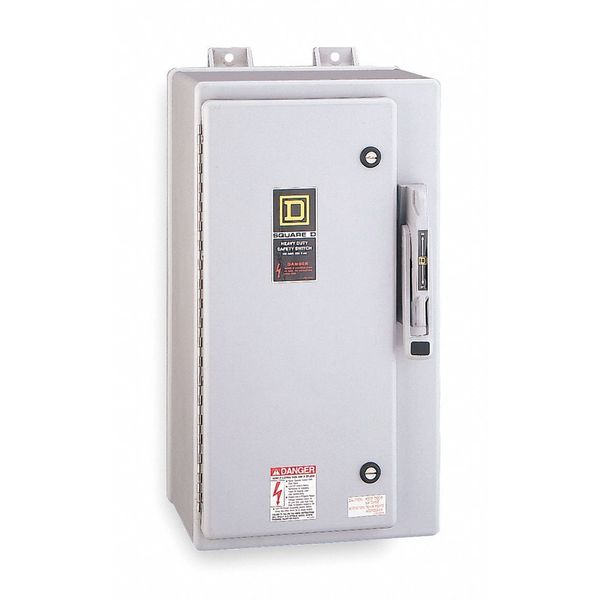

Nonfusible Safety Switch, Heavy Duty, 600V AC, 3PST, 100 A, NEMA 4X

SKU
Brand Square D
Categories
Description Safety Switch, Contact Form 3PST, Current Rating 100 A, Depth 12 in, Duty Heavy Duty, Enclosure Type Enclosed, Environment Indoor/Outdoor, For Fuse Class Not Applicable, Height 24 3/4 in, Horsepower @ 480V AC 75 hp, Horsepower @ 600V AC 100 hp, Housing Material Fiberglass Reinforced Polyester, IP Rating IP66, Mounting Style Surface Mount, NEMA Enclosure Rating 4X, Neutral Assembly Included No
graingerSKU: 2GMR6, mscSKU: , zoro_no: G0071843, mongo_id: 65bbee36526e052139af90ea

Web Price

$8,502.49 / each

Qty

Product Details

Amps AC 100 A

Certifications UL listed file E2875

Contact Form 3PST

Country of Origin (subject to change) Multiple

Current Rating 100 A

Current Type AC

Depth 12 in

Device Application Heavy application

Disconnect Type Non-fusible disconnect

Duty Heavy

Duty Rating Heavy duty

Electrical Connection Lugs

Enclosure Depth More than 12 inches

Enclosure Height 20 to 29 3/4 inches

Enclosure Material Non-Metallic

Enclosure Rating NEMA 4X fiberglass reinforced polyester

Enclosure Type Enclosed

Enclosure Width 10 to 19 3/4 inches

Environment Indoor/Outdoor

Factory Installed Neutral None

Features Mercury Free, PVC Free

For Fuse Class Not Applicable

Fusible / Nonfusible Nonfusible

Gauge/Conductor 12 to 1/0 AWG (Aluminum), 14 to 1/0 AWG (Copper)

Height 24.8 in

Horsepower @ 480V AC 75 hp

Horsepower @ 600V AC 100 hp

Housing Material Fiberglass Reinforced Polyester

HP_ 75 hp @ 600V AC

IP Rating 66

Material of Construction Fiberglass Reinforced Polyester

Metallic / Non-Metallic Non-Metallic

Motor Power HP 75 hp at 480 V AC 50-60 Hz for 3 phase motors; 100 hp at 600 V AC 50-60 Hz for 3 phase motors; 50 hp at 600 V DC

Mounting Surface

Mounting Style Surface Mount

NEMA Enclosure Rating 4X

NEMA Enclosure Type 4X

Neutral Assembly Included No

Number of Poles 3

Number of Wires 3

Package Quantity 1

Phase 3

Protection Method Nonfusible

Standards UL listed

Tightening Torque 50 lbf.in (5.65 N.m) (AWG 1 to AWG 3/0); 45 lbf.in (5.08 N.m) (AWG 6 to AWG 4); 40 lbf.in (4.52 N.m) 0.01 inÃÂ² (8.367 mmÃÂ²) (AWG 8); 35 lbf.in (3.95 N.m) 0.00 to 0.01 inÃÂ² (2.06 to 5.261 mmÃÂ²) (AWG 14 to AWG 10)

UL 98 Certification Yes

Voltage 600V AC

Voltage Rating 600 V AC/DC

Weight 18.14 kg

Width 13.7 in

Wire Size AWG 12 to AWG 1/0 aluminium; AWG 14 to AWG 1/0 copper

Wiring Configuration 3-wire
