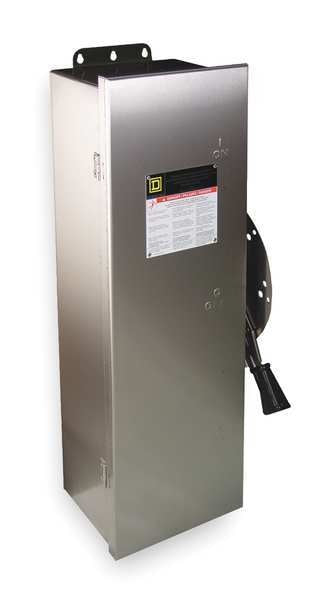

Nonfusible Safety Switch, Heavy Duty, 600V AC, 3PST, 600 A, NEMA 12, 3, 3R, 4, 4X, 5

SKU
Brand Square D
Categories
Description Safety Switch, Contact Form 3PST, Current Rating 600 A, Depth 10 1/4 in, Duty Heavy Duty, Environment Indoor/Outdoor, For Fuse Class Not Applicable, Height 46 1/4 in, Horsepower @ 240V AC 200 hp, Horsepower @ 480V AC 400 hp, Horsepower @ 600V AC 500 hp, Housing Material 304 Stainless Steel, IP Rating Not Rated, Maximum Enclosure Depth 27.62 in, Maximum Mounting Depth 19.36 in, Minimum Enclosure Depth 12.18 in, Minimum Mounting Depth 8 in, Mounting Style Surface Mount
graingerSKU: 2JYK3, mscSKU: , zoro_no: G2157337, mongo_id: 65bbe7c73aaddbd5a90b65cd

Web Price

$16,668.74 / each

Qty

Product Details

Amps AC 600 A

Certifications UL listed file E2875

Contact Form 3PST

Country of Origin (subject to change) Multiple

Current Rating 600 A

Current Type AC

Depth 12.1 in

Device Application Heavy application

Disconnect Type Non-fusible disconnect

Duty Heavy

Duty Rating Heavy duty

Electrical Connection Lugs

Enclosure Depth 6 - 12 inches

Enclosure Height 30 inches and larger

Enclosure Material 304 Stainless Steel

Enclosure Rating NEMA 4/4X/5 stainless steel 304

Enclosure Width 20 to 29 3/4 inches

Environment Indoor/Outdoor

Factory Installed Neutral None

Features Mercury Free, PVC Free

For Fuse Class Not Applicable

Fusible / Nonfusible Nonfusible

Gauge/Conductor 3/0 AWG to 500 kcmil

Height 50 in

Horsepower @ 240V AC 200 hp

Horsepower @ 480V AC 400 hp

Horsepower @ 600V AC 500 hp

Housing Material 304 Stainless Steel

HP_ 400 hp @ 600V AC

IP Rating Not Rated

Material of Construction 304 Stainless Steel

Maximum Enclosure Depth 27.62 in

Maximum Mounting Depth 19.36 in

Metallic / Non-Metallic Metallic

Minimum Enclosure Depth 12.18 in

Minimum Mounting Depth 8 in

Motor Power HP 200 hp at 240 V AC 50-60 Hz for 3 phase motors; 400 hp at 480 V AC 50-60 Hz for 3 phase motors; 500 hp at 600 V AC 50-60 Hz for 3 phase motors; 50 hp at 250 V DC; 50 hp at 600 V DC

Mounting Surface

Mounting Style Surface Mount

NEMA Enclosure Rating 4, 4X, 5

NEMA Enclosure Type 12, 3, 3R, 4, 4X, 5

Neutral Assembly Included No

Number of Poles 3

Number of Wires 3

Package Quantity 1

Phase 3

Protection Method Nonfusible

Standards UL listed

Tightening Torque 375 lbf.in (42.37 N.m) (AWG 3/0 to 500 kcmil)
