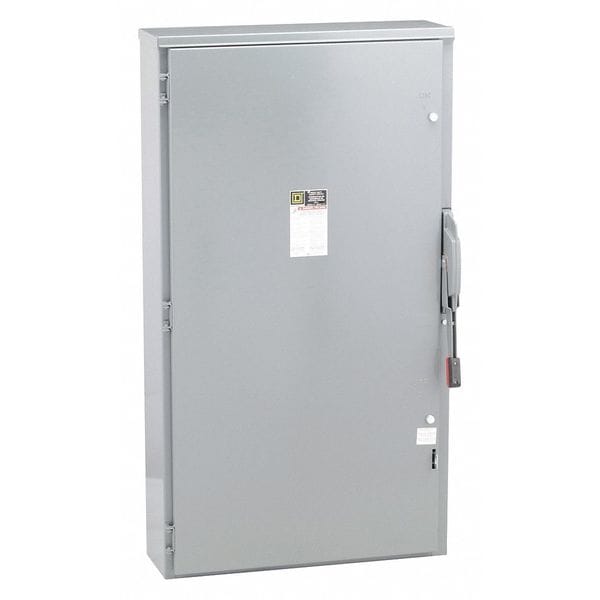

Nonfusible Safety Switch, Heavy Duty, 600V AC, 3PST, 600 A, NEMA 3R

SKU
Brand Square D
Categories
Description Safety Switch, Contact Form 3PST, Current Rating 600 A, Depth 10 1/4 in, Duty Heavy Duty, Environment Indoor/Outdoor, For Fuse Class Not Applicable, Height 50 1/4 in, Horsepower @ 240V AC 200 hp, Horsepower @ 480V AC 400 hp, Horsepower @ 600V AC 500 hp, Housing Material Steel, IP Rating IP14, Mounting Style Surface Mount, NEMA Enclosure Rating 3R, Neutral Assembly Included No
graingerSKU: 2JYH6, mscSKU: , zoro_no: G0900277, mongo_id: 65bbe6c73aaddbd5a905208c

Web Price

$6,686.81 / each

Qty

Product Details

Amps AC 600 A

Certifications UL listed file E2875

Contact Form 3PST

Country of Origin (subject to change) Mexico

Current Rating 600 A

Current Type AC

Depth 9.5 in

Device Application Heavy application

Disconnect Type Non-fusible disconnect

Duty Heavy

Duty Rating Heavy duty

Electrical Connection Lugs

Enclosure Depth 6 - 12 inches

Enclosure Height 30 inches and larger

Enclosure Material Galvanized Steel

Enclosure Rating NEMA 3R galvannealed steel

Enclosure Width 20 to 29 3/4 inches

Environment Indoor/Outdoor

Factory Installed Neutral None

Features Mercury Free, PVC Free

For Fuse Class Not Applicable

Fusible / Nonfusible Nonfusible

Gauge/Conductor 3/0 AWG to 500 kcmil

Height 50.3 in

Horsepower @ 240V AC 200 hp

Horsepower @ 480V AC 400 hp

Horsepower @ 600V AC 500 hp

Housing Material Steel

HP_ 400 hp @ 600V AC

IP Rating 14

Material of Construction Galvannealed Steel

Metallic / Non-Metallic Metallic

Motor Power HP 200 hp at 240 V AC 50-60 Hz for 3 phase motors; 400 hp at 480 V AC 50-60 Hz for 3 phase motors; 500 hp at 600 V AC 50-60 Hz for 3 phase motors; 50 hp at 250 V DC; 50 hp at 600 V DC

Mounting Surface

Mounting Style Surface Mount

NEMA Enclosure Rating 3R

NEMA Enclosure Type 3R

Neutral Assembly Included No

Number of Poles 3

Number of Wires 3

Package Quantity 1

Phase 3

Protection Method Nonfusible

Standards UL listed

Tightening Torque 375 lbf.in (42.37 N.m) (AWG 3/0 to 500 kcmil)
