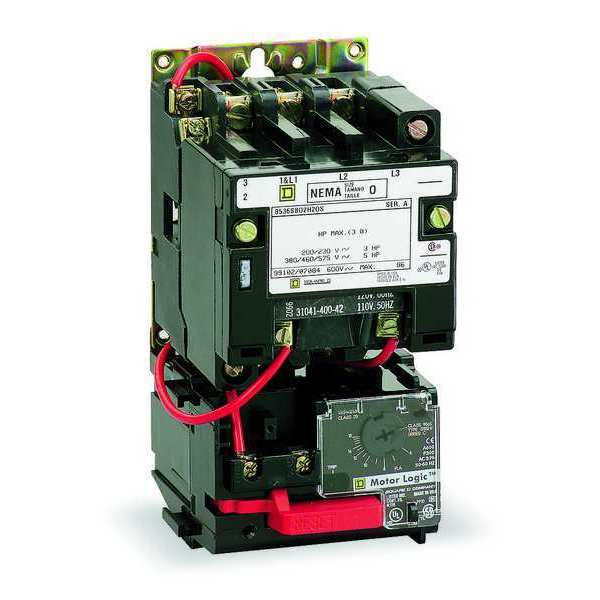

Nonreversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 120V AC, 3 Poles, 1NO

SKU
Brand Square D
Categories
Description NEMA Magnetic Motor Starter, Includes Auxiliary Contacts No, Maximum Overload Relay Current Setting 90 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 30 A, Trip Class 10/20, Number of Poles 3, Number of Auxillary Contacts 0, Phase Three, Operator None, Operator Function Not Applicable, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 110/120V AC
graingerSKU: 5F115, mscSKU: , zoro_no: G2336801, mongo_id: 65bbe97a22d7a989a995b2d8

Web Price

$2,142.49 / each

Qty

Product Details

Action Nonreversing

Amps AC 90

Auxiliary Contact Form 1NO

Auxiliary Contacts Without

Certifications UL Listed; CSA; NEMA

Coil Voltage 110/120V AC

Coil Volts 120V AC

Control Circuit Type Separate control circuit

Control Units No control units

Country of Origin (subject to change) Mexico

Current AC 90 A

Depth 5.5 in

Enclosure NEMA Rating No Enclosure

Enclosure Type Open

Features Solid State Overload Relay

Frequency 50/60 Hz

Height 11 in

Horsepower @ Three Phase - 208V AC 25 hp

Horsepower @ Three Phase - 240V AC 30 hp

Horsepower @ Three Phase - 480V AC 50 hp

Horsepower @ Three Phase - 600V AC 50 hp

Horsepower Rating 25 HP 200 V AC; 30 HP 230 V AC; 50 HP 460 V AC; 50 HP 575 V AC

HP @ 3 Phase - 208V 25 hp

HP @ 3 Phase - 240V 30 hp

HP @ 3 Phase - 480V 50 hp

HP @ 3 Phase - 575V 50 hp

Hz_ 50/60

Includes Solid state overload relay

Includes Auxiliary Contacts No

Includes Pilot Light No

Maximum Overload Relay Current Setting 90 A

Maximum Voltage Rating 600V AC

Minimum Overload Relay Current Setting 30 A

NEMA Enclosure Rating No Enclosure

NEMA Size 3

Number of Auxillary Contacts 0

Number of Poles 3

Operating Voltage 600V AC

Operator None

Operator Function Not Applicable

Overall Depth 6.5 in

Overall Height 11.09 in

Overall Width 5.47 in

Overload Protection Type Electronic

Overload Relay Amp Setting 30 to 90A

Package Quantity 1

Phase Three

Pilot Light Without pilot light

Product Type Motor starter

Reversing Capability Non-Reversing

Short Circuit Current Rating Circuit-breaker 150 A maximum: 100 kA at 480 V AC; Fuse J 200 A maximum: 100 kA at 600 V AC; Fuse T 200 A maximum: 100 kA at 600 V AC; Fuse RK1 200 A maximum: 100 kA at 600 V AC; Fuse RK5 200 A maximum: 100 kA at 600 V AC

Standards CSA, UL Listed

Starter Style NEMA

Starter Type NEMA Style

Terminal Connection Type Screw Clamp Terminals

Thermal Unit Code Not Applicable

Trip Class 10/20

Type Of Overload Solid state Motor Logic class 10/20

Width 6.5 in
