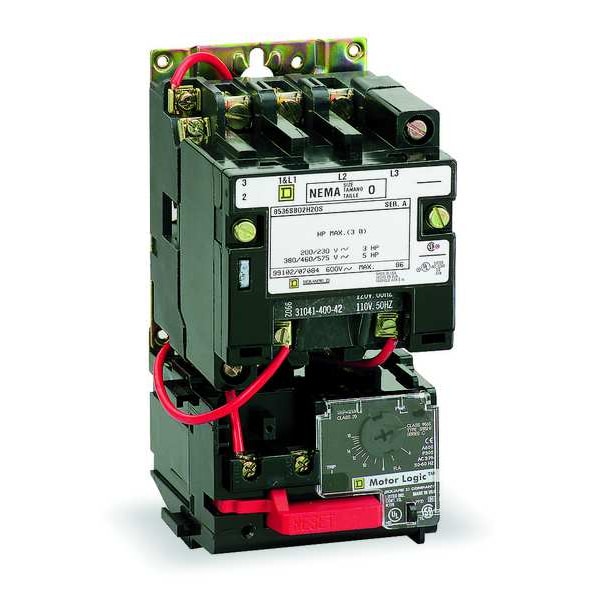

Nonreversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 240V AC, 3 Poles, 1NO

SKU
Brand Square D
Categories
Description NEMA Magnetic Motor Starter, Includes Auxiliary Contacts No, Maximum Overload Relay Current Setting 27 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 9 A, Trip Class 10/20, Number of Poles 3, Number of Auxillary Contacts 0, Phase Three, Operator None, Operator Function Not Applicable, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 220/240V AC, Horsepower @ Three Phase - 600V AC 10 hp
graingerSKU: 5F037, mscSKU: , zoro_no: G2671715, mongo_id: 65bbe8c222d7a989a99136de

Web Price

$736.24 / each

Qty

Product Details

Action Nonreversing

Amps AC 27

Auxiliary Contact Form 1NO

Auxiliary Contacts Without

Certifications UL Listed; CSA; NEMA

Coil Voltage 220/240V AC

Coil Volts 240V AC

Control Circuit Type Common control circuit

Control Units No control units

Country of Origin (subject to change) Mexico

Current AC 27 A

Depth 3.5 in

Enclosure NEMA Rating No Enclosure

Enclosure Type Open

Features Solid State Overload Relay

Frequency 50/60 Hz

Height 6.9 in

Horsepower @ Three Phase - 208V AC 7 1/2 hp

Horsepower @ Three Phase - 240V AC 7 1/2 hp

Horsepower @ Three Phase - 480V AC 10 hp

Horsepower @ Three Phase - 600V AC 10 hp

Horsepower Rating 7.5 HP 200 V AC; 7.5 HP 230 V AC; 10 HP 460 V AC; 10 HP 575 V AC

HP @ 3 Phase - 208V 7 1/2 hp

HP @ 3 Phase - 240V 7 1/2 hp

HP @ 3 Phase - 480V 10 hp

HP @ 3 Phase - 575V 10 hp

Hz_ 50/60

Includes Solid state overload relay

Includes Auxiliary Contacts No

Includes Pilot Light No

Maximum Overload Relay Current Setting 27 A

Maximum Voltage Rating 600V AC

Minimum Overload Relay Current Setting 9 A

NEMA Enclosure Rating No Enclosure

NEMA Size 1

Number of Auxillary Contacts 0

Number of Poles 3

Operating Voltage 600V AC

Operator None

Operator Function Not Applicable

Overall Depth 4.22 in

Overall Height 6.77 in

Overall Width 3.5 in

Overload Protection Type Electronic

Overload Relay Amp Setting 9 to 27A

Package Quantity 1

Phase Three

Pilot Light Without pilot light

Product Type Motor starter

Reversing Capability Non-Reversing

Short Circuit Current Rating Circuit-breaker 70 A maximum: 100 kA at 480 V AC; Fuse J 60 A maximum: 100 kA at 600 V AC; Fuse T 60 A maximum: 100 kA at 600 V AC; Fuse RK1 60 A maximum: 100 kA at 600 V AC; Fuse RK5 60 A maximum: 100 kA at 600 V AC

Standards CSA, UL Listed

Starter Style NEMA

Starter Type NEMA Style

Terminal Connection Type Screw Clamp Terminals

Thermal Unit Code Not Applicable

Trip Class 10/20

Type Of Overload Solid state Motor Logic class 10/20

Width 4.5 in
