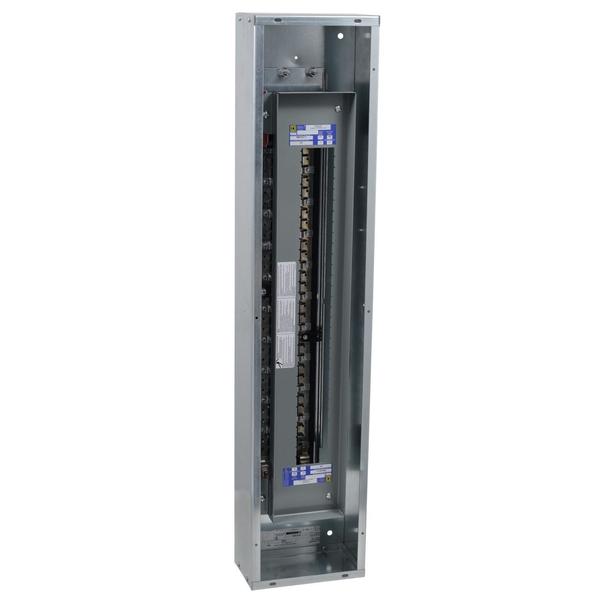

NQ Panelboard, interior, main lug only, , 100 A Amps, 240 V AC || 48 V DC

SKU
Brand Square D
Categories
Description NQ Panelboard,interior,main lug only,

Web Price

$1,577.49 / each

Qty

Product Details

Amps 100 A

Bus Material copper

Circuit Breaker Type QOB || QOB-VH || QHB

Connections - Terminals lug line AWG 12...AWG 1/0 aluminium || lug neutral AWG 12...AWG 1/0 aluminium

Country of Origin (subject to change) United States

Depth 5 in NEMA Type 1

Height 40 in

Main Circuit Breaker or Main Lug main lugs

Number Of Spaces 30

Package Quantity 1

Phase 3 phase

Standards UL || CSA

Tightening Torque 4.52-5.65 N.m 13.30-67.43 mmÃÂ² (AWG 6...AWG 2/0) || 11.3-11.3 N.m 13.30-67.43 mmÃÂ² (AWG 6...AWG 2/0) || 31.07-31.07 N.m 13.30-177.3 mmÃÂ² (AWG 6...350 kcmil) || 31.07-31.07 N.m 13.30-126.7 mmÃÂ² (AWG 6...250 kcmil) || 31.07-31.07 N.m 107.2-152 mmÃÂ² (AWG 4...300 kcmil)

Voltage 240 V AC || 48 V DC

Width 8.625 in

Wiring Configuration 4-wire

[Iu] Rated Interrupted Current 10 kA || 22 kA || 65 kA
